P0952

Symptom:
P0952-AUTOSTICK INPUT CIRCUIT LOW

When Monitored:
Whenever the engine is running.

Set Condition:
The transmission is not in the Autostick position and the upshift or downshift is reporting closed - below 0.3 volts or if both switches are reported closed at the same time.

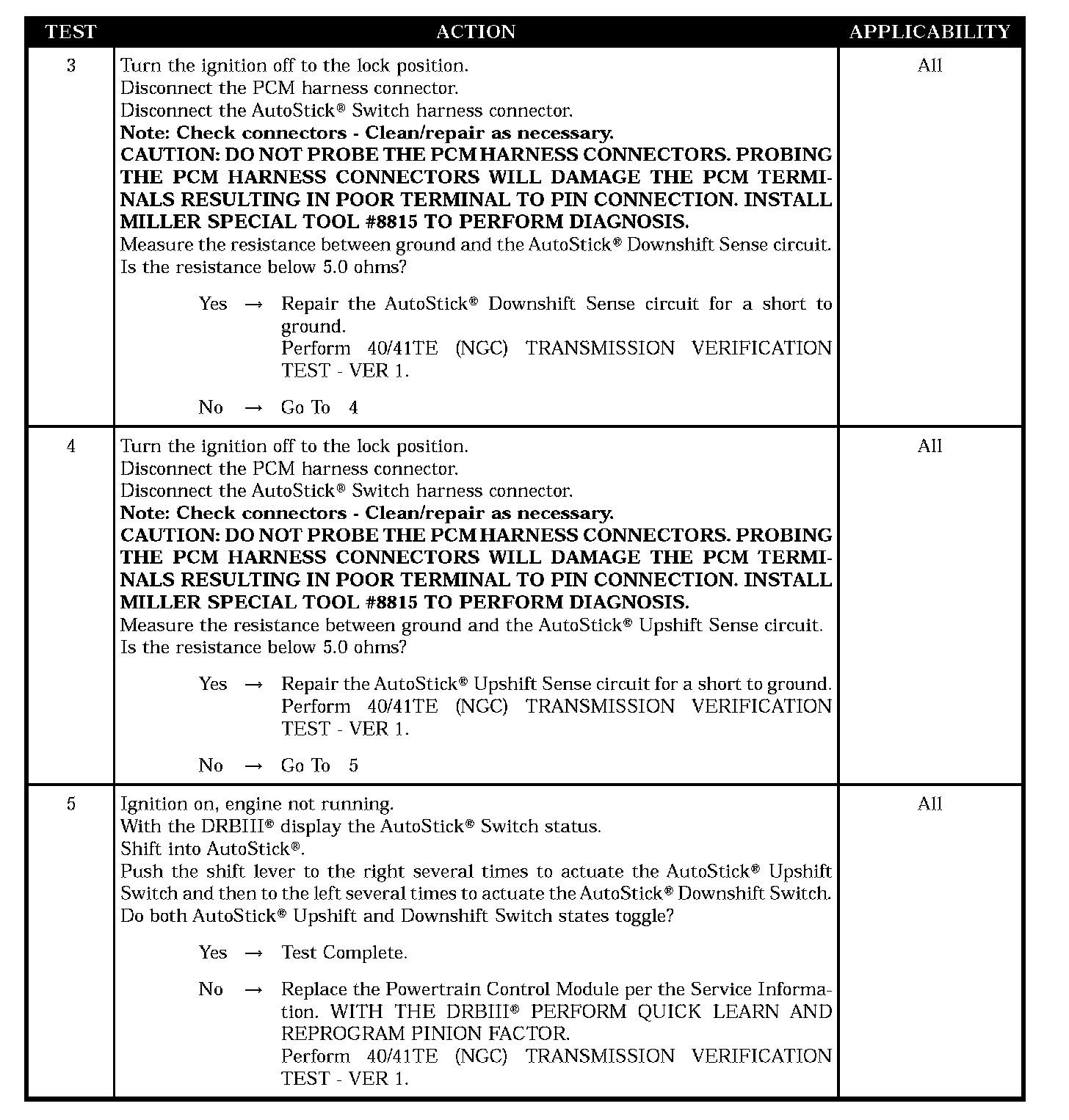

Test 1-2:

Test 3-5:

Test 6:

POSSIBLE CAUSES
- AUTOSTICK6 SWITCH
- AUTOSTICK6 DOWNSHIFT SENSE CIRCUIT SHORT TO GROUND
- AUTOSTICK6 UPSHIFT SENSE CIRCUIT SHORT TO GROUND
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
