Radio, Stereo, and Compact Disc: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the rear floor stowage tray.

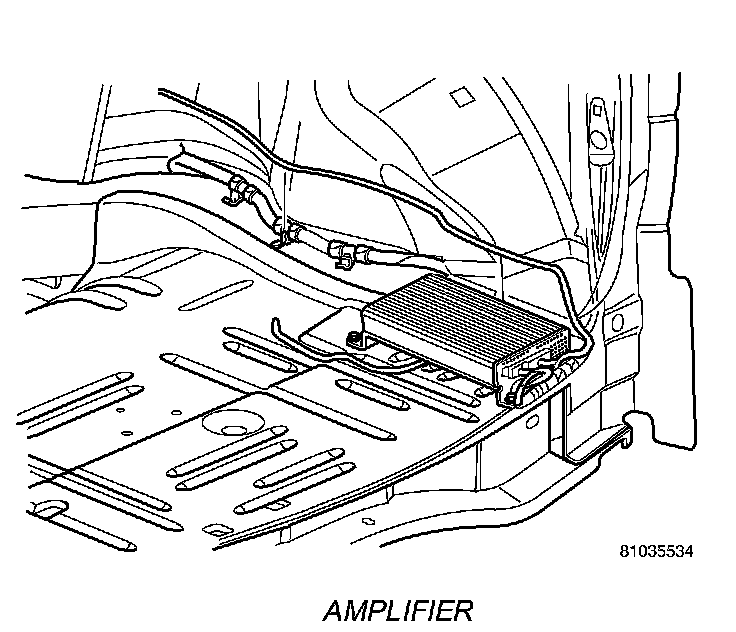

Amplifier:

3. Remove the three mounting fasteners.
4. Disconnect wire harness connectors and remove amplifier.

INSTALLATION
1. Connect electrical harness connectors and install amplifier.
2. Install mounting fasteners. Tighten to 12 Nm (105 in. lbs.)
3. Install the rear floor stowage tray.
4. Connect the battery negative cable.
