Cruise Control Servo Cable: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Remove the servo bracket bolt.

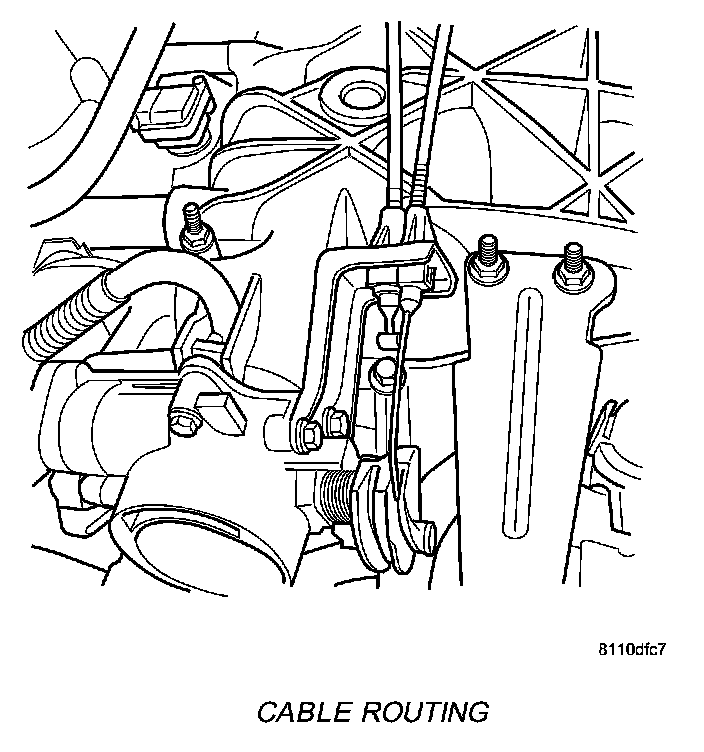

Cable Routing:

3. Remove speed control cable from throttle cam by sliding clasp out hole used for throttle cable.
4. Remove the throttle cable (with retaining tab) and then slide cable speed control cable out from bracket.
5. Disconnect electrical connectors and vacuum hose.

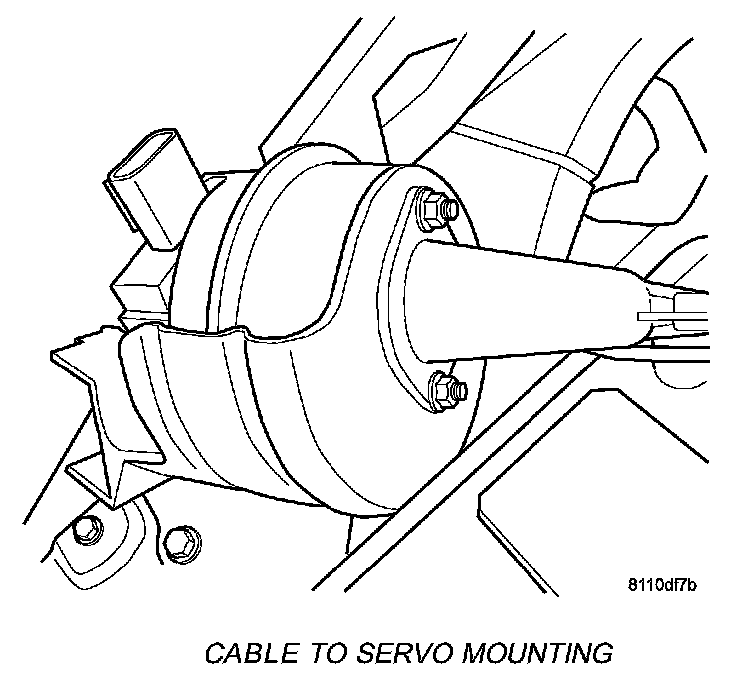

Cable To Servo Mounting:

6. Remove two nuts attaching mounting bracket and speed control cable to servo.

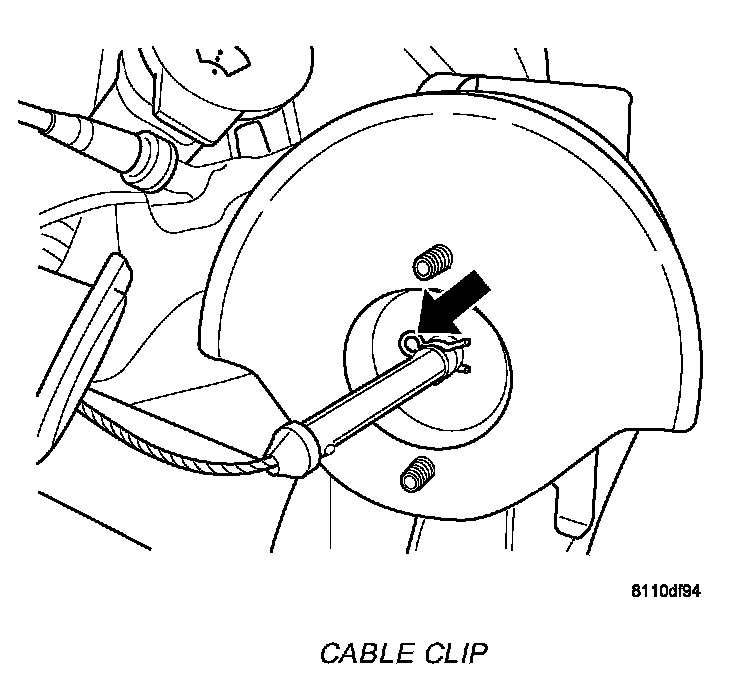

Cable Clip:

7. Pull cable away from servo to expose retaining clip and remove clip attaching cable to servo.

INSTALLATION
1. Route cable.
2. Slide speed control cable into bracket.
3. Connect the vacuum line connection at rear of intake manifold.
4. Install clip attaching cable to servo.
5. Install two nuts attaching mounting bracket and speed control cable to servo. Refer to the torque chart for torque specifications.
6. Connect electrical connectors and vacuum hose.
7. Install speed control cable to throttle cam by sliding clasp into hole.
8. Install the servo bracket bolt. Refer to the torque chart for torque specifications.
9. Connect the negative battery cable.
