Cruise Control Servo: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Remove the servo bracket bolt.

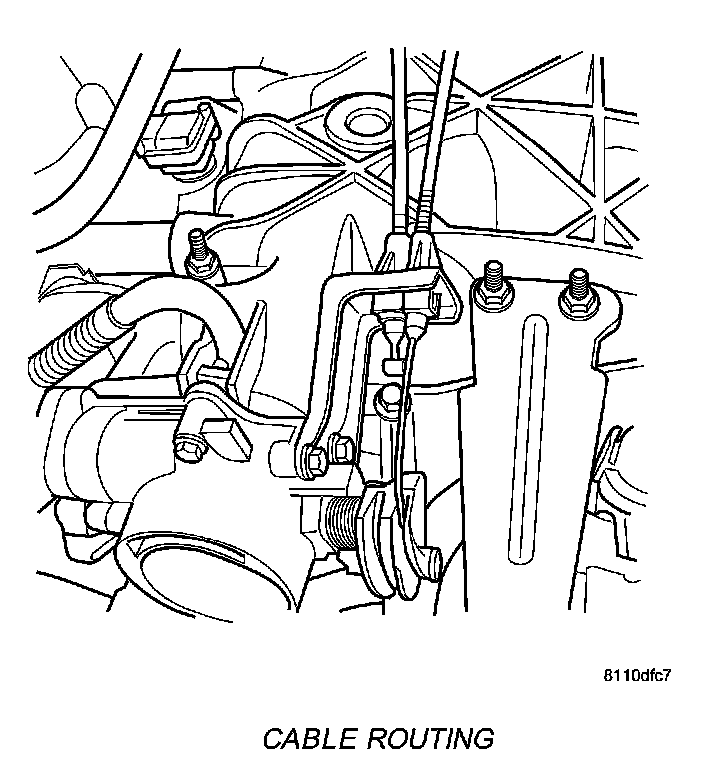

Cable Routing:

3. Remove speed control cable from throttle cam by sliding clasp out hole used for throttle cable.
4. Remove the throttle cable (with retaining tab) and then slide cable speed control cable out from bracket.
5. Disconnect electrical connectors and vacuum hose.

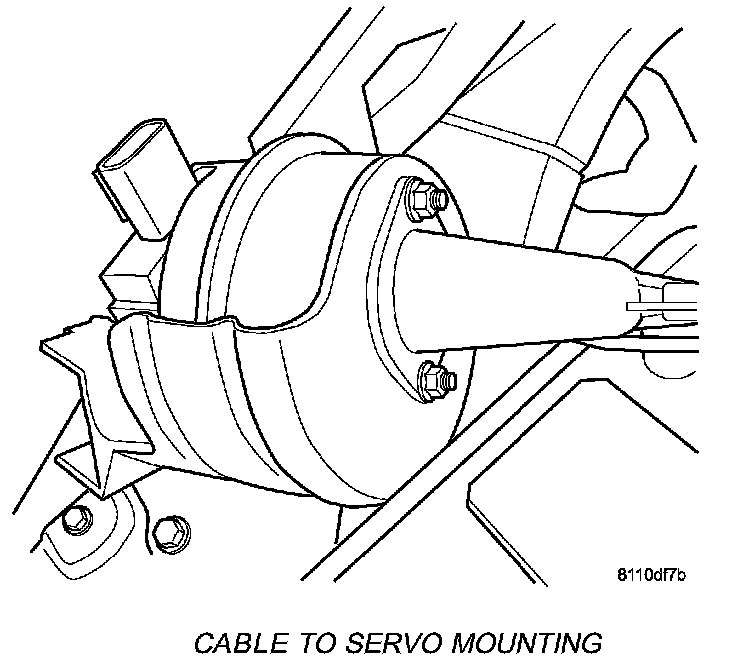

Cable To Servo Mounting:

6. Remove two nuts attaching mounting bracket and speed control cable to servo.

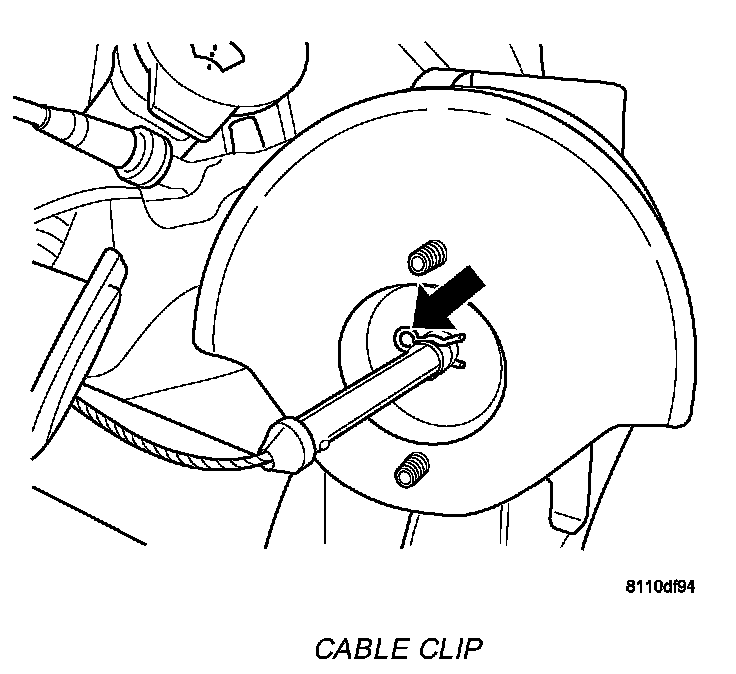

Cable Clip:

7. Pull cable away from servo to expose retaining dip and remove dip attaching cable to servo.
8. Remove the servo.

INSTALLATION
1. Install dip attaching cable to servo.
2. Install two nuts attaching mounting bracket and speed control cable to servo. Refer to the torque chart for torque specifications.
3. Connect electrical connectors and vacuum hose.
4. Install speed control cable to throttle cam by sliding clasp into hole.
5. Install the servo bracket bolt. Refer to the torque chart for torque specifications.
6. Connect the negative battery cable.
