Air Bag

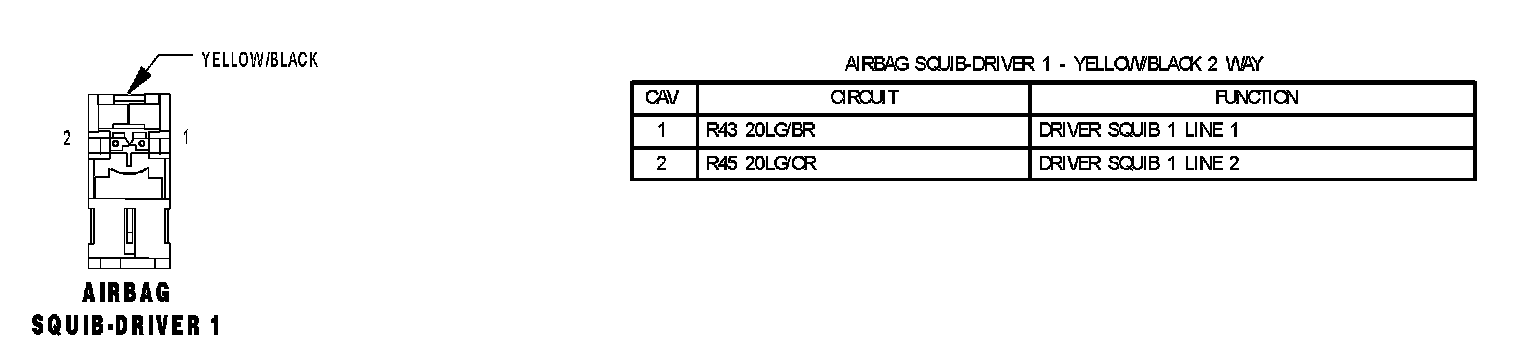

Airbag Squib-Driver 1:

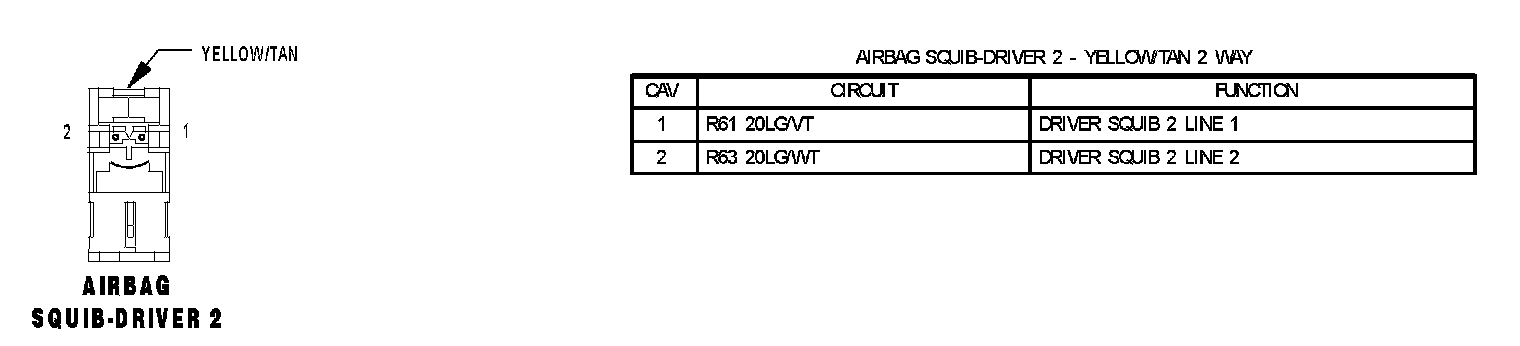

Airbag Squib-Driver 2:

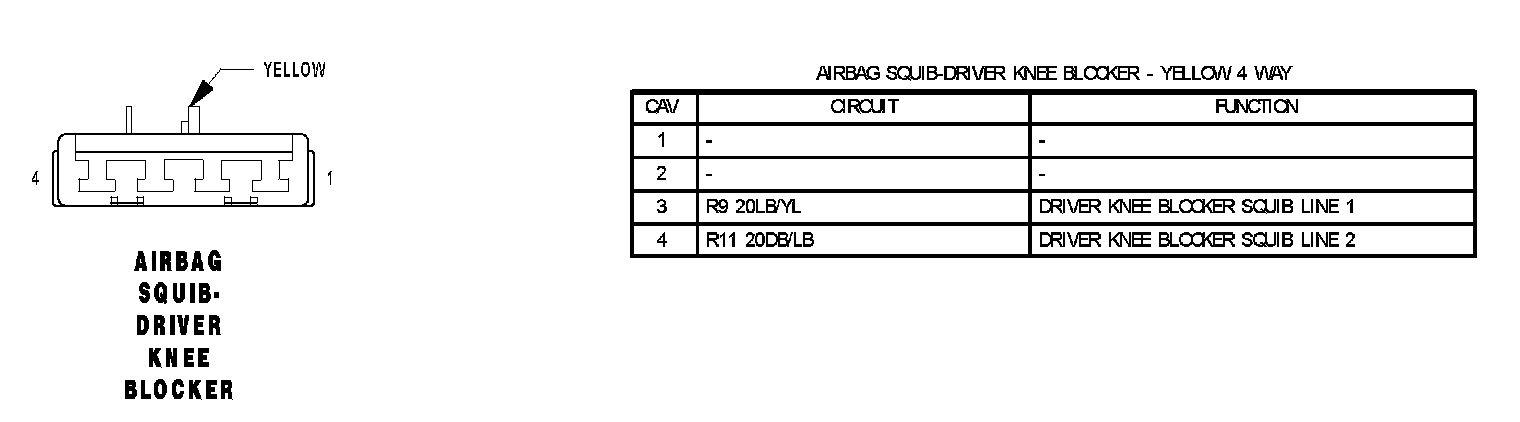

Airbag Squib-Driver Knee Blocker:

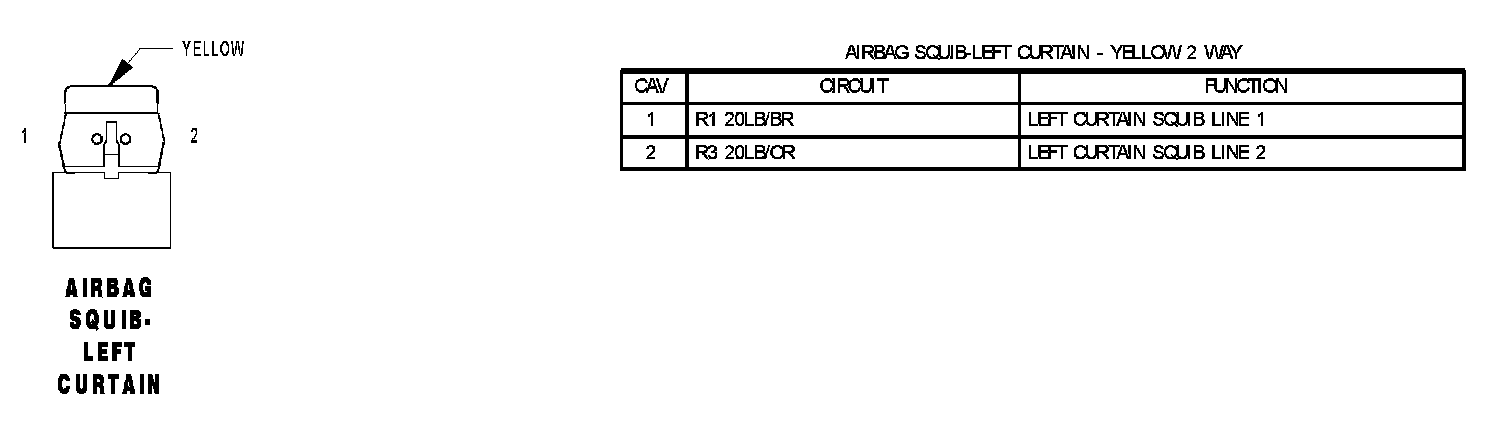

Airbag Squib-Left Curtain:

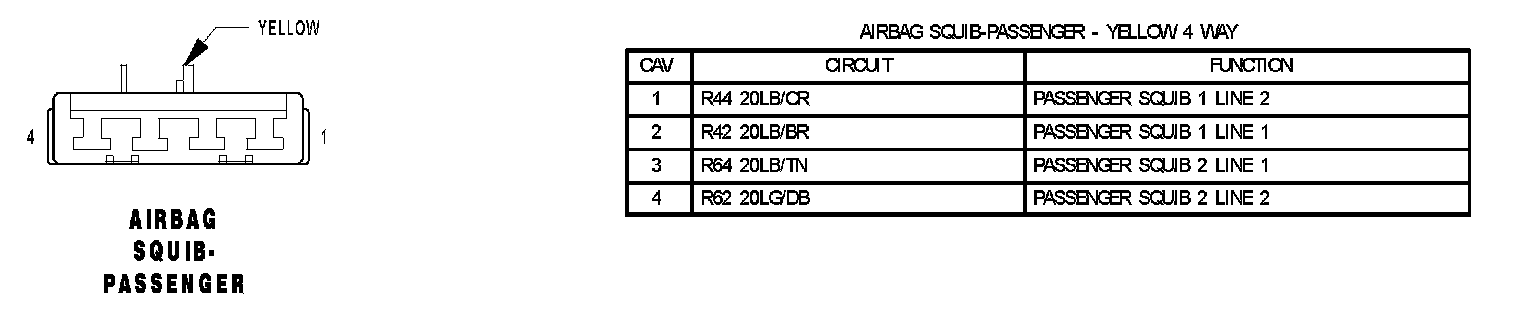

Airbag Squib-Passenger:

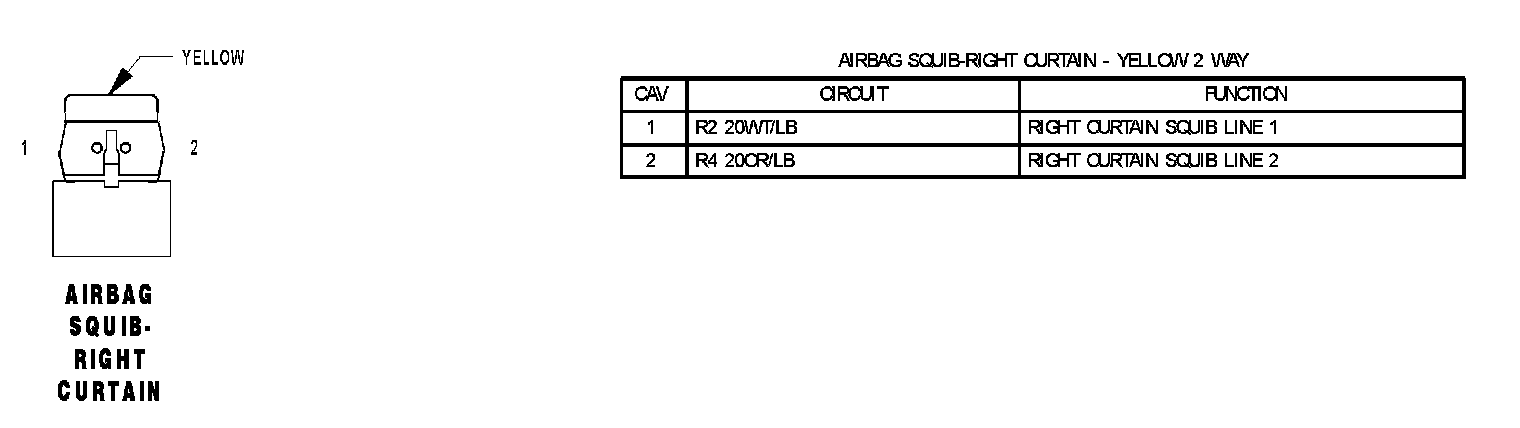

Airbag Squib-Right Curtain:
