Air Door Actuator / Motor, HVAC

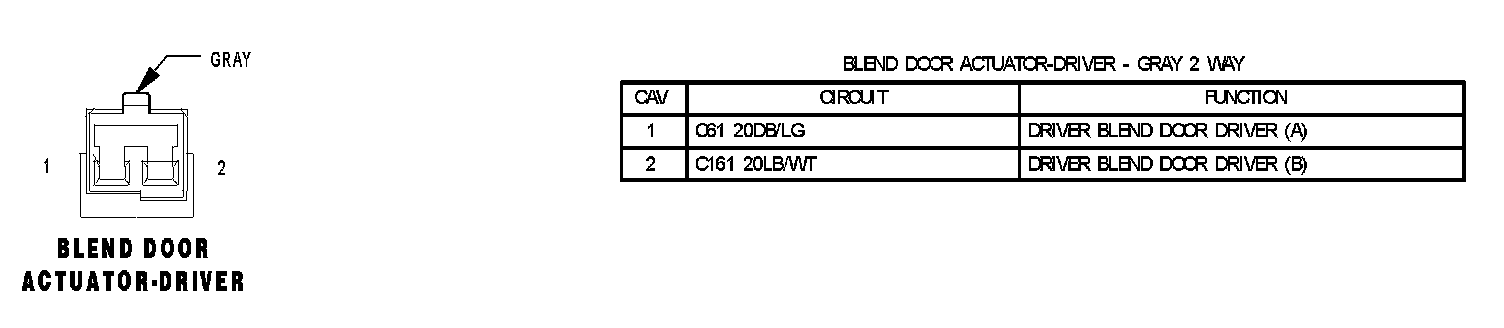

Blend Door Actuator - Driver:

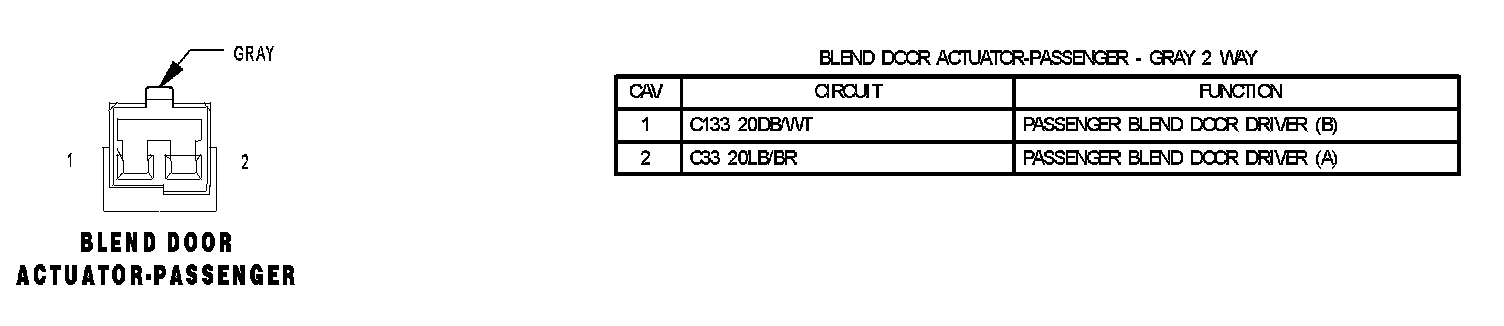

Blend Door Actuator - Passenger:
Mode Door Actuator - Front:

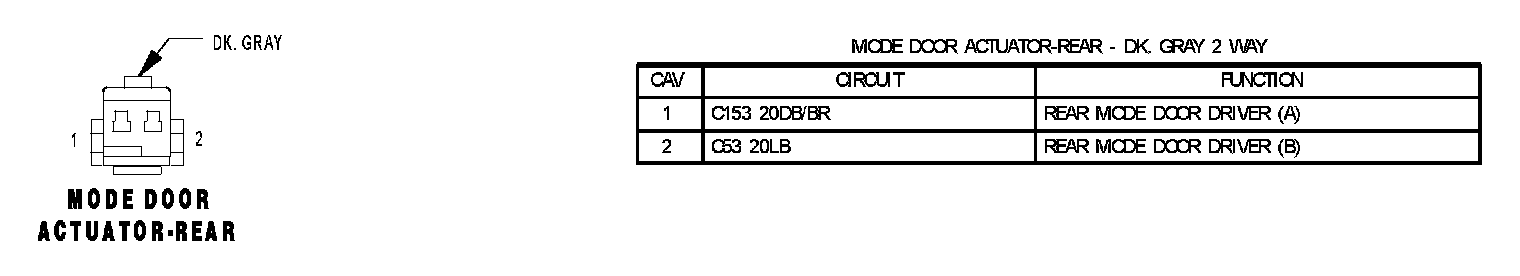

Mode Door Actuator - Rear:

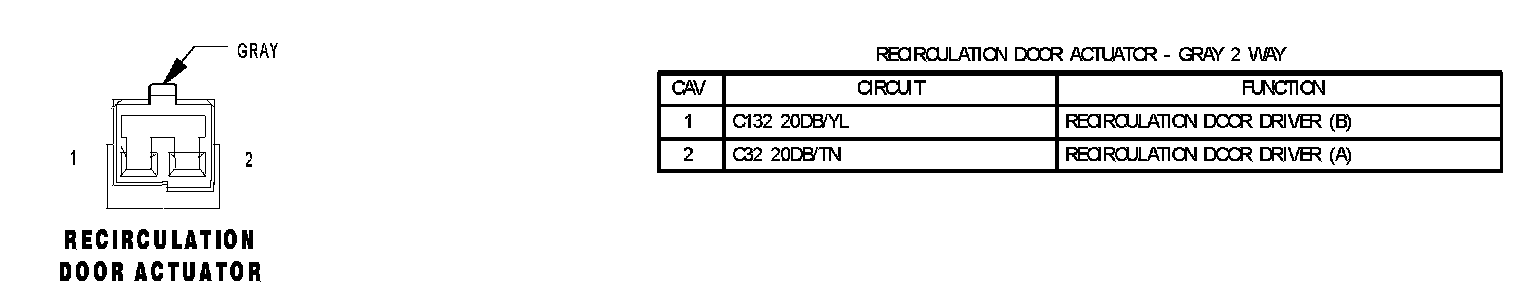

Recirculation Door Actuator:
