Auxiliary Power Outlet
Auxiliary Power Outlet
Power Outlet - Front Console:

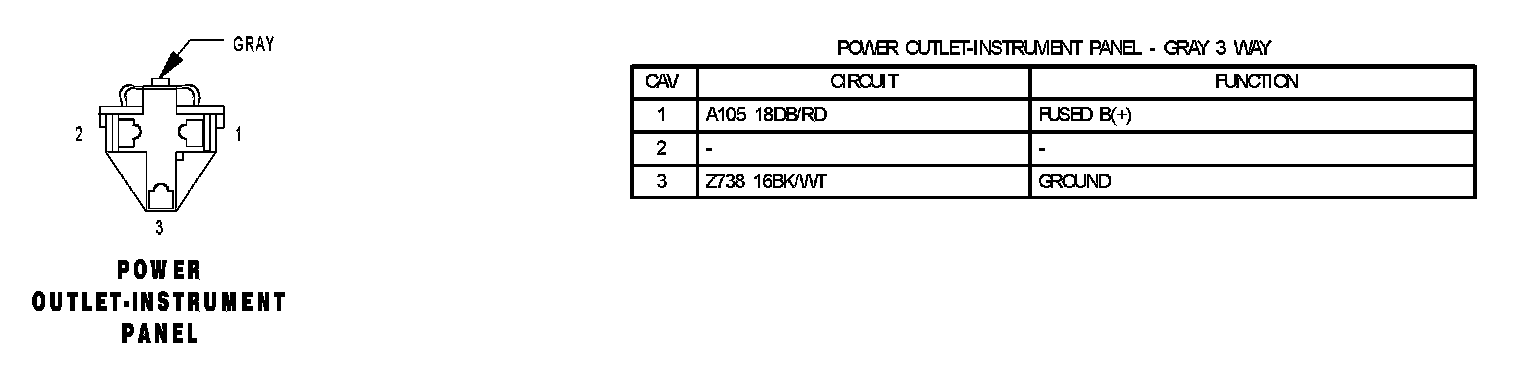

Power Outlet - Instrument Panel:
Power Outlet - Rear:
