Control Assembly, HVAC
Control Assembly, HVAC

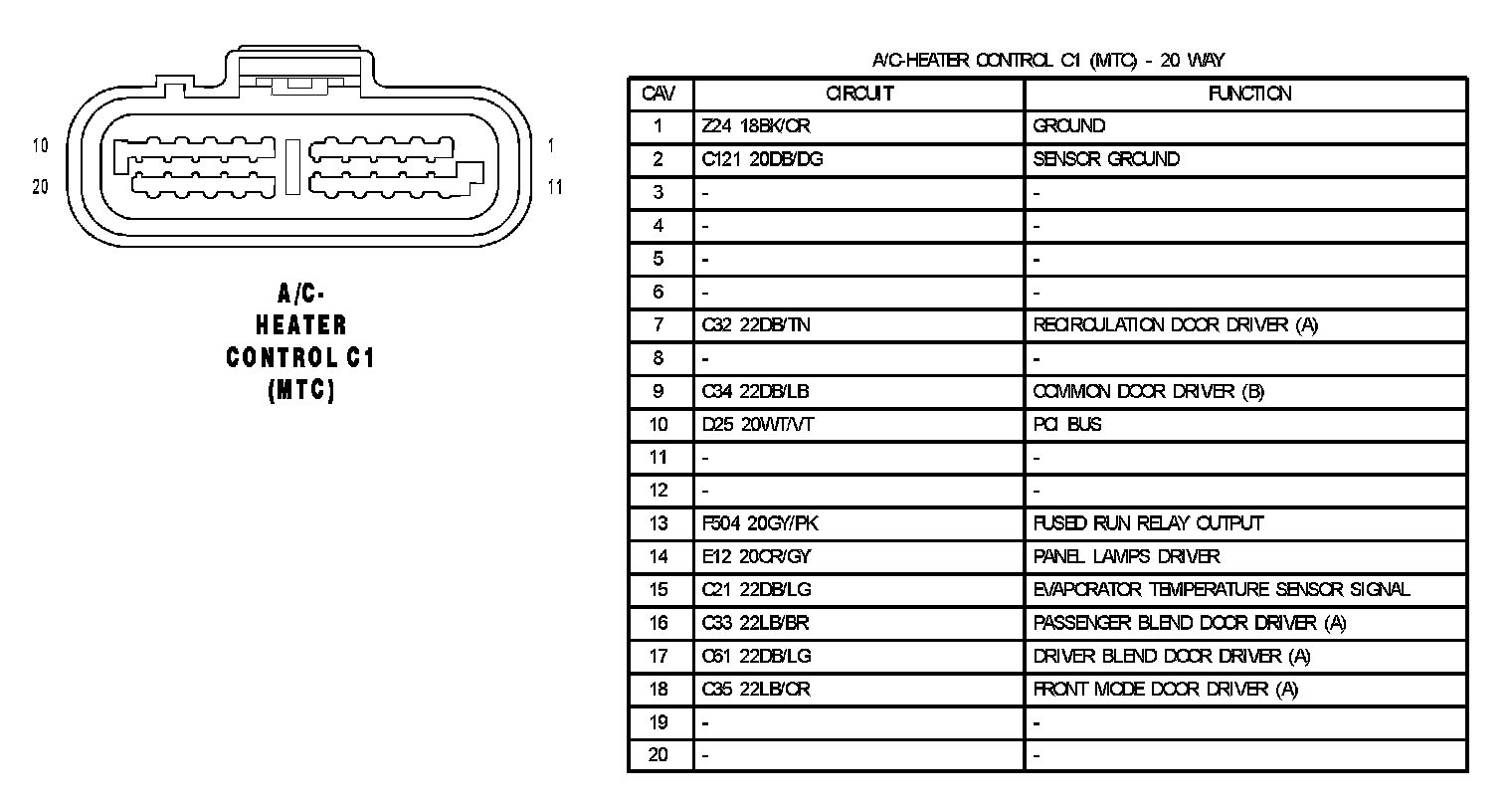

A/C-Heater Control C1 (MTC):
A/C-Heater Control C2 (MTC):

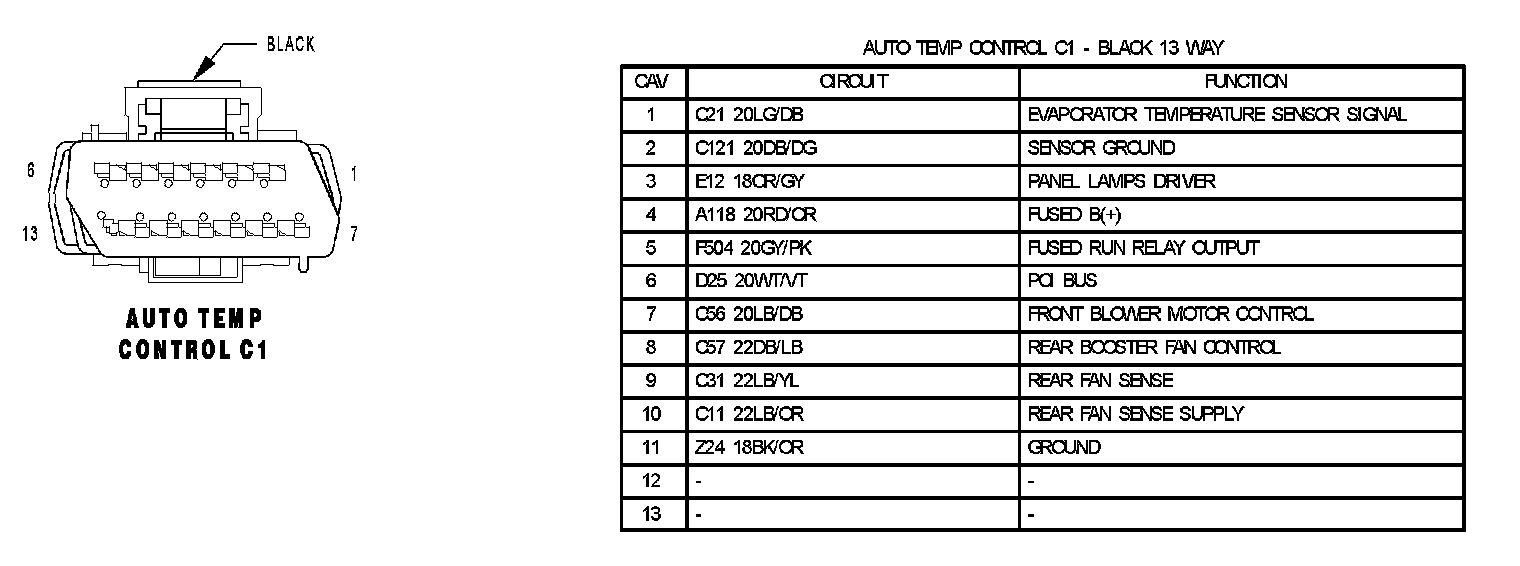

Auto Temp Control C1:
Auto Temp Control C2:
