Pacifica V6-3.8L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
Door Module
Door Module - Driver C1:
Door Module - Driver C2:

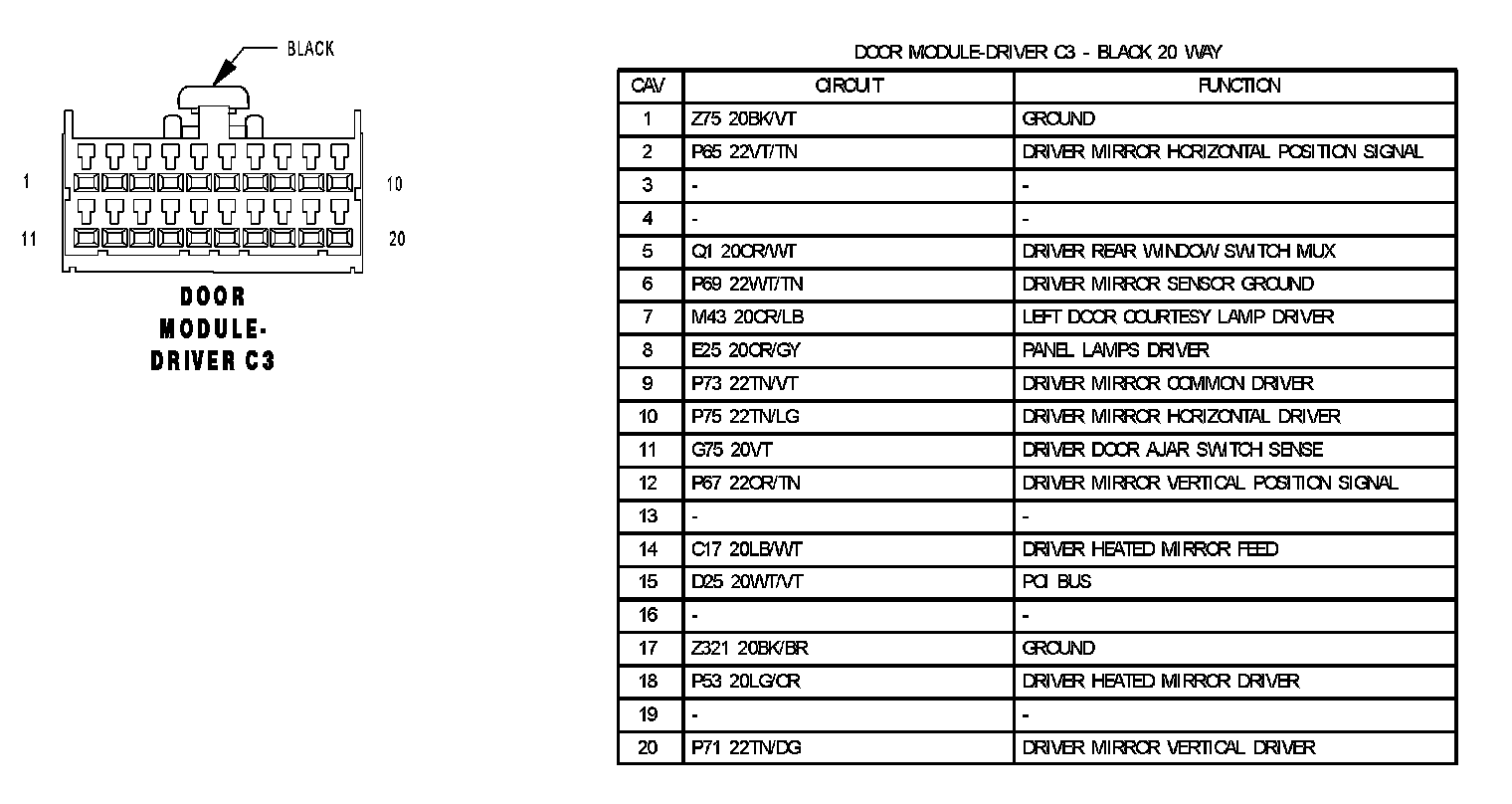

Door Module - Driver C3:

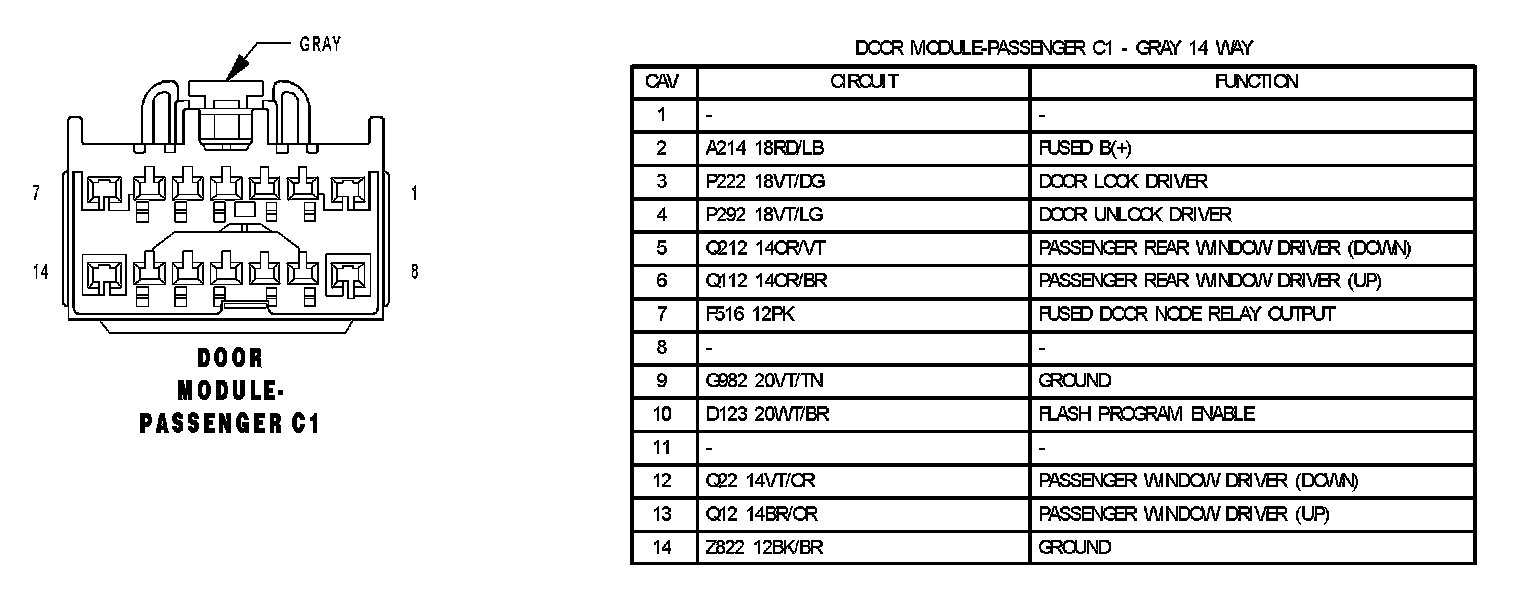

Door Module - Passenger C1:

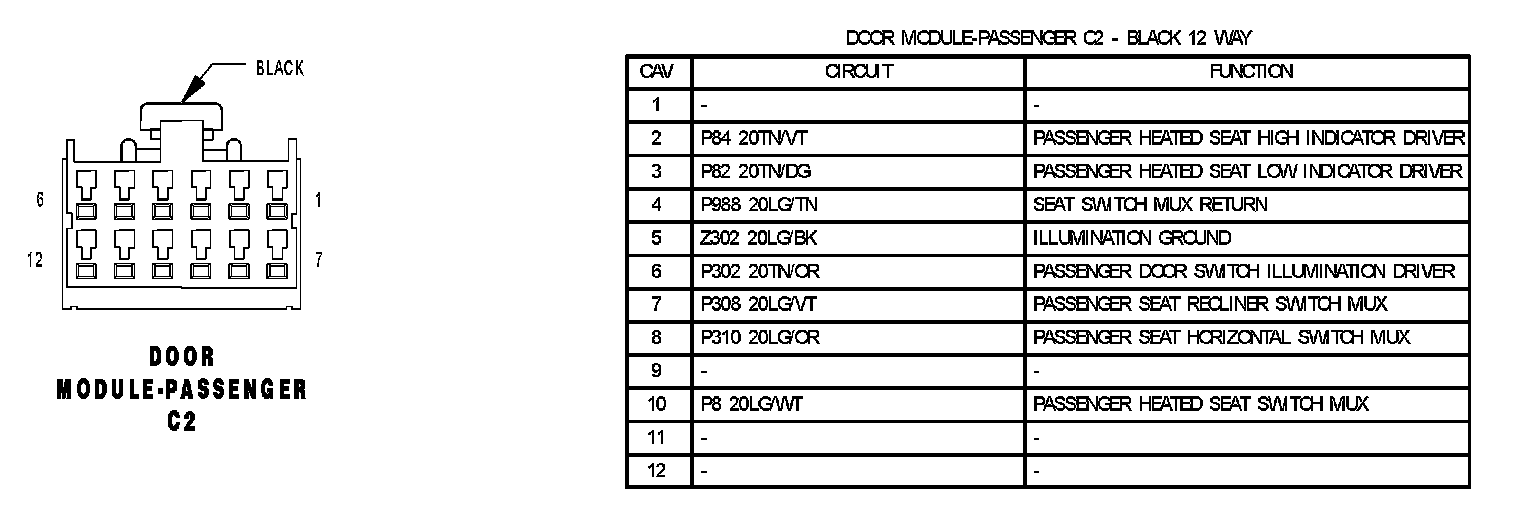

Door Module - Passenger C2:

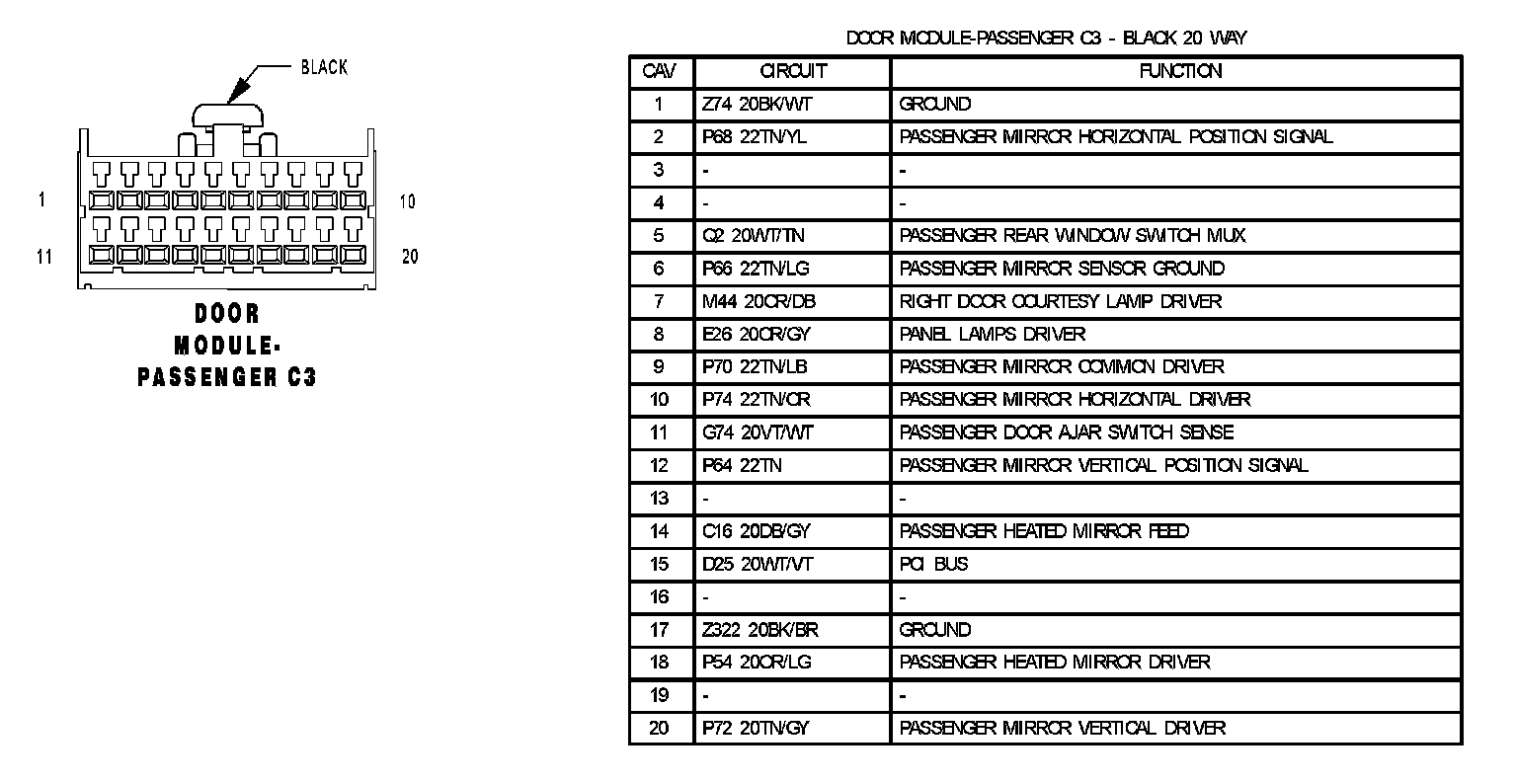

Door Module - Passenger C3:
