Fuel Injector
Fuel Injector

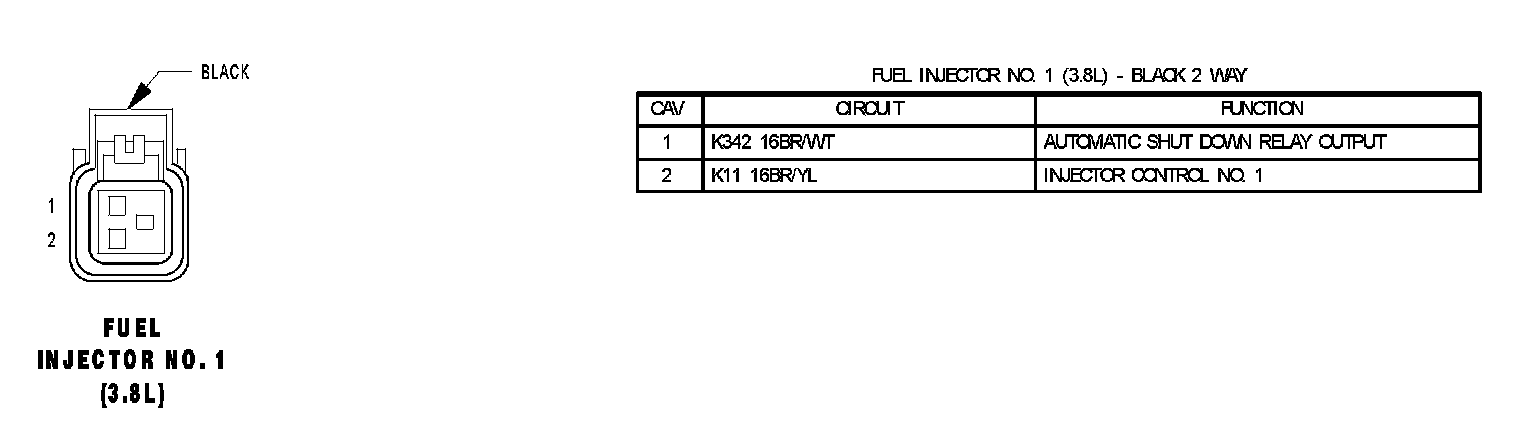

Fuel Injector No.1 (3.8L):
Fuel Injector No.2 (3.8L):
Fuel Injector No.3 (3.8L):

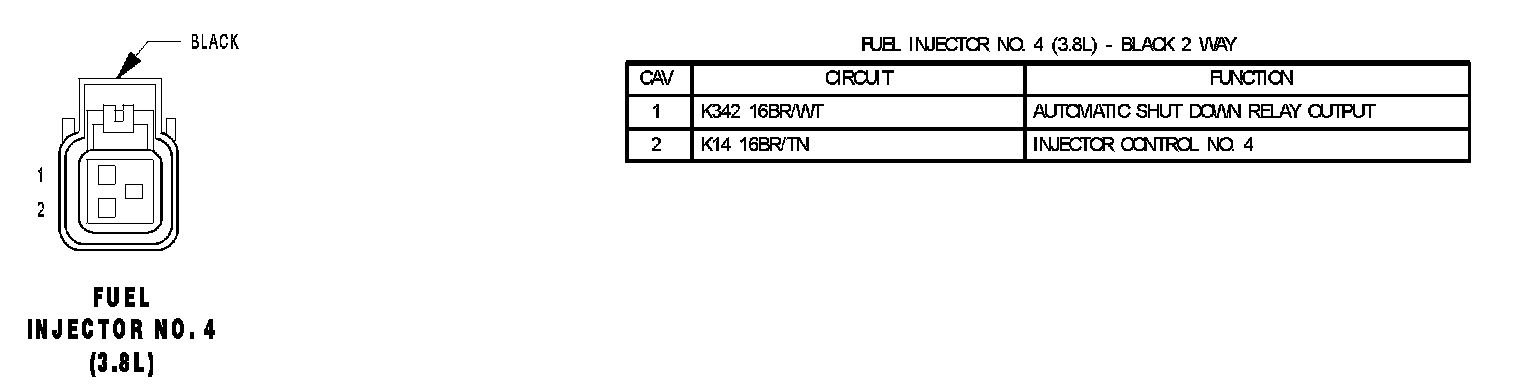

Fuel Injector No.4 (3.8L):

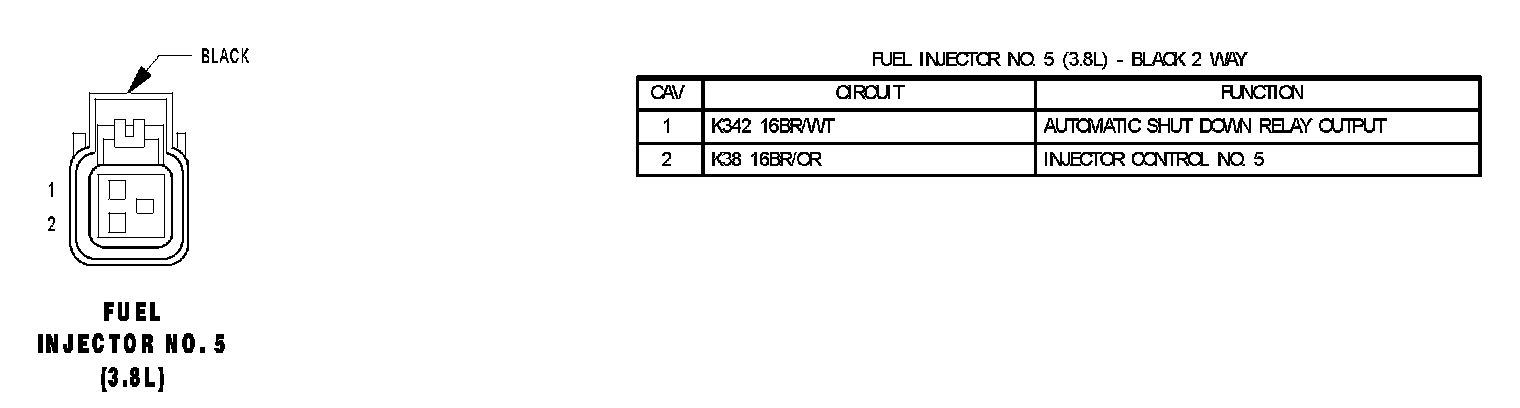

Fuel Injector No.5 (3.8L):

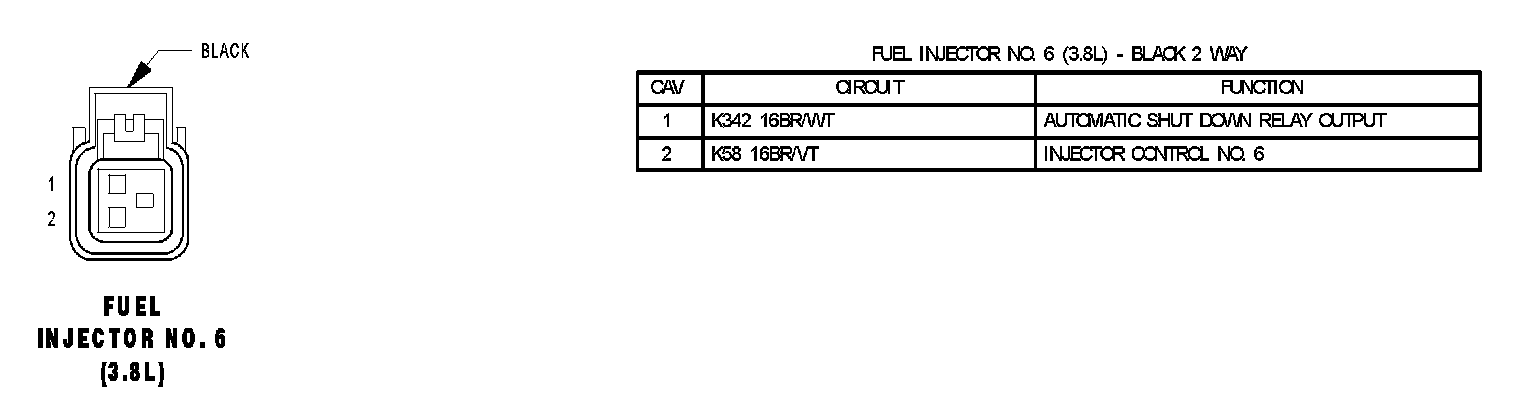

Fuel Injector No.6 (3.8L):
