Impact Sensor
Impact Sensor

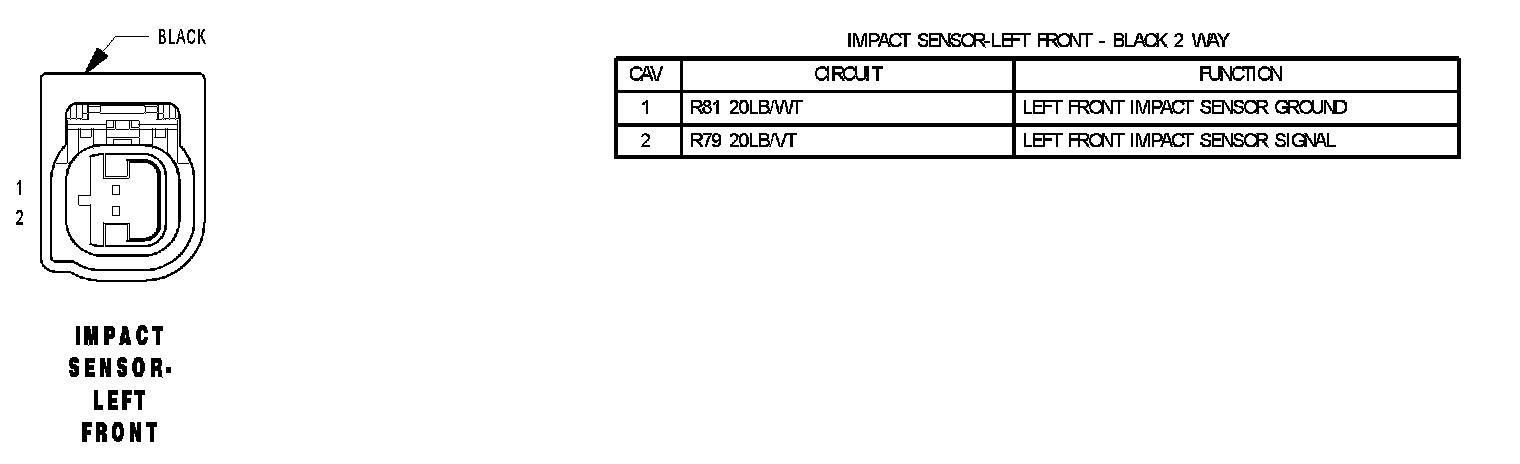

Impact Sensor - Left Front:

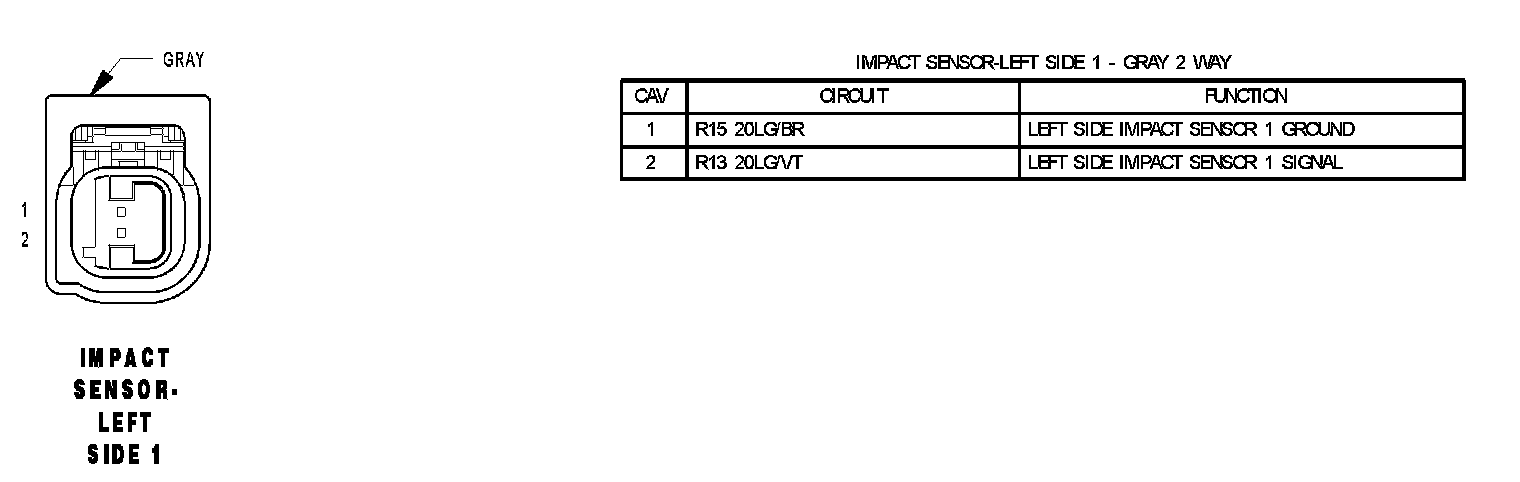

Impact Sensor - Left Side 1:
Impact Sensor - Left Side 2:

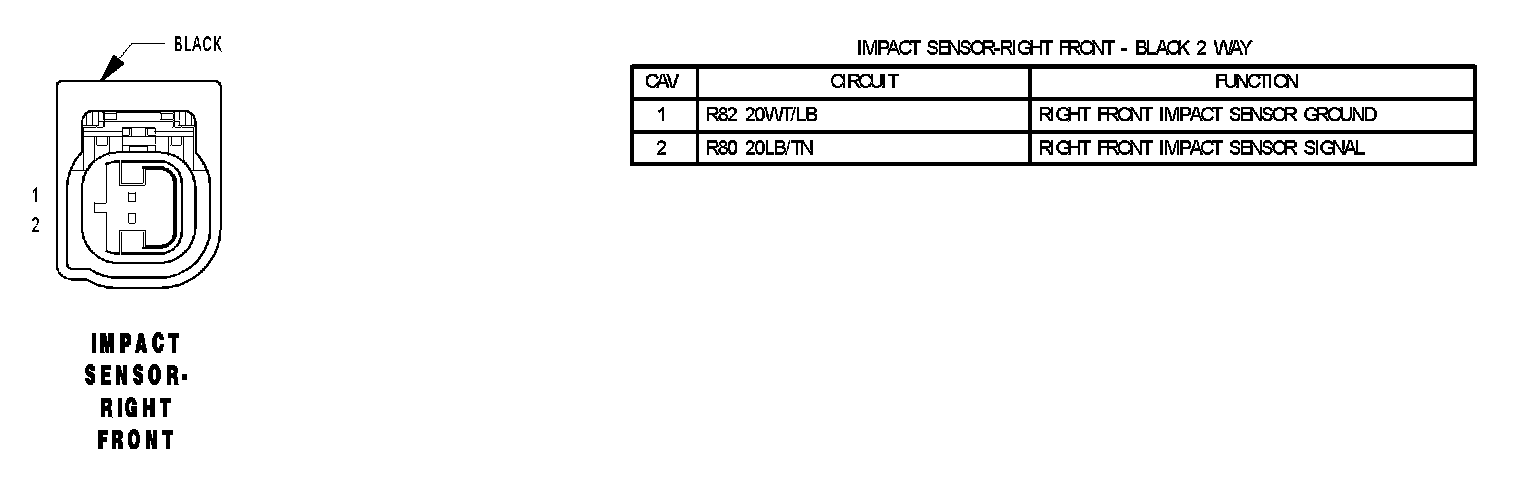

Impact Sensor - Right Front:
Impact Sensor - Right Side 1:
Impact Sensor - Right Side 2:
