Instrument Cluster / Carrier

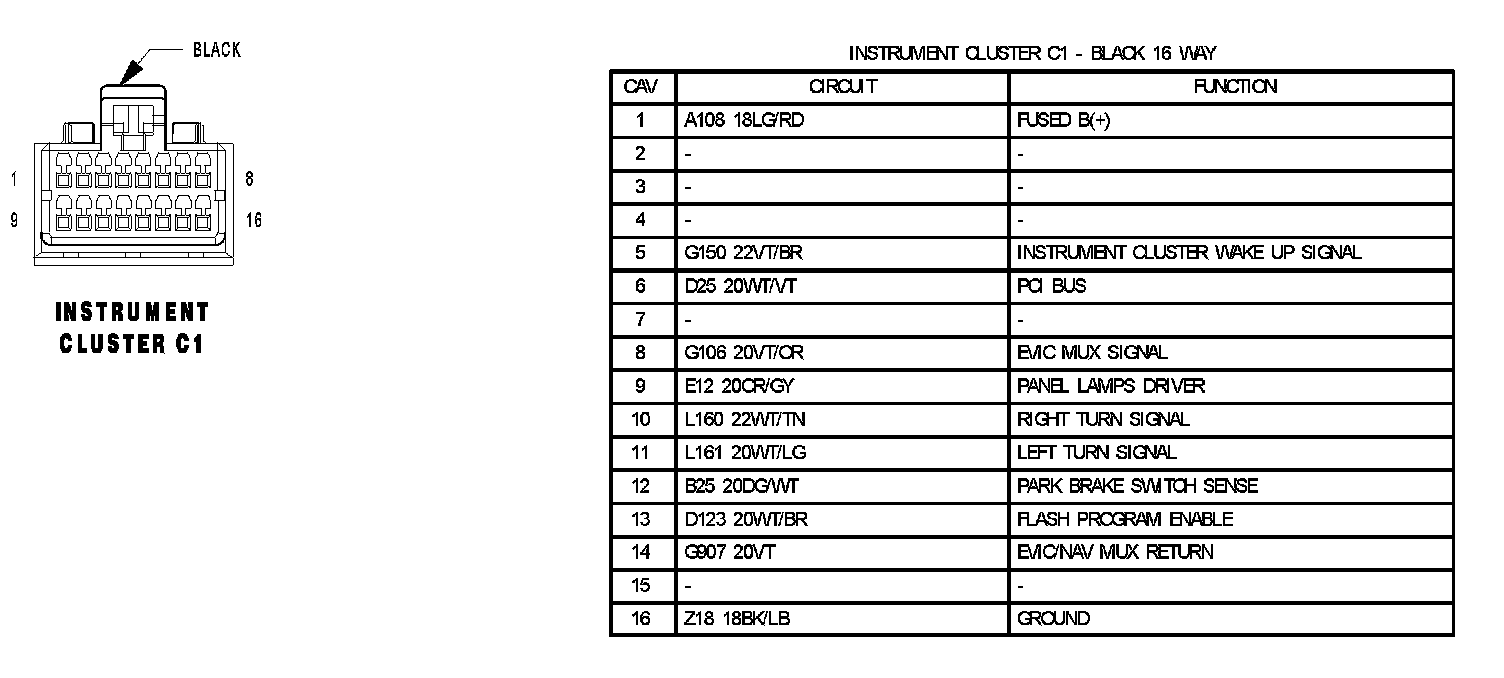

Instrument Cluster C1:



Instrument Cluster C2 (Navigation):



Instrument Panel Switch Pod:
