License Plate Lamp
License Plate Lamp

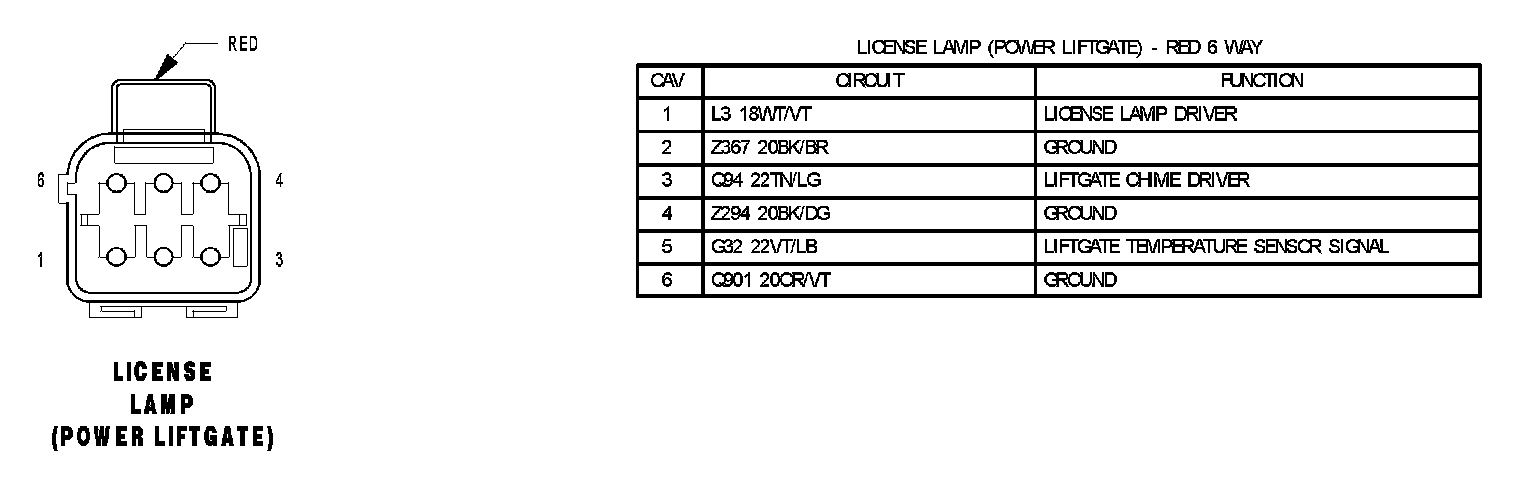

License Lamp (Power Liftgate):

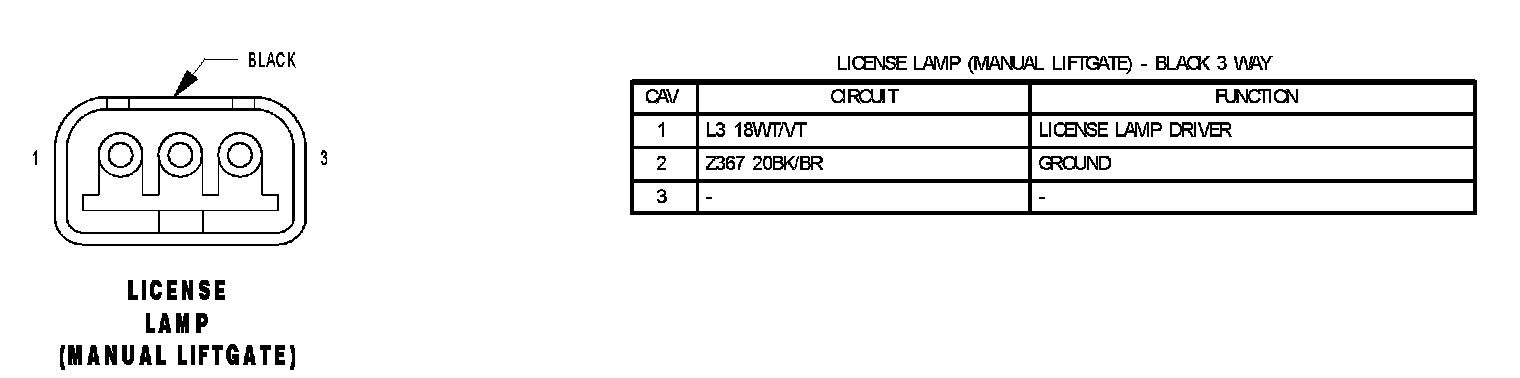

License Lamp (Manual Liftgate):
