Parking Assist Control Module

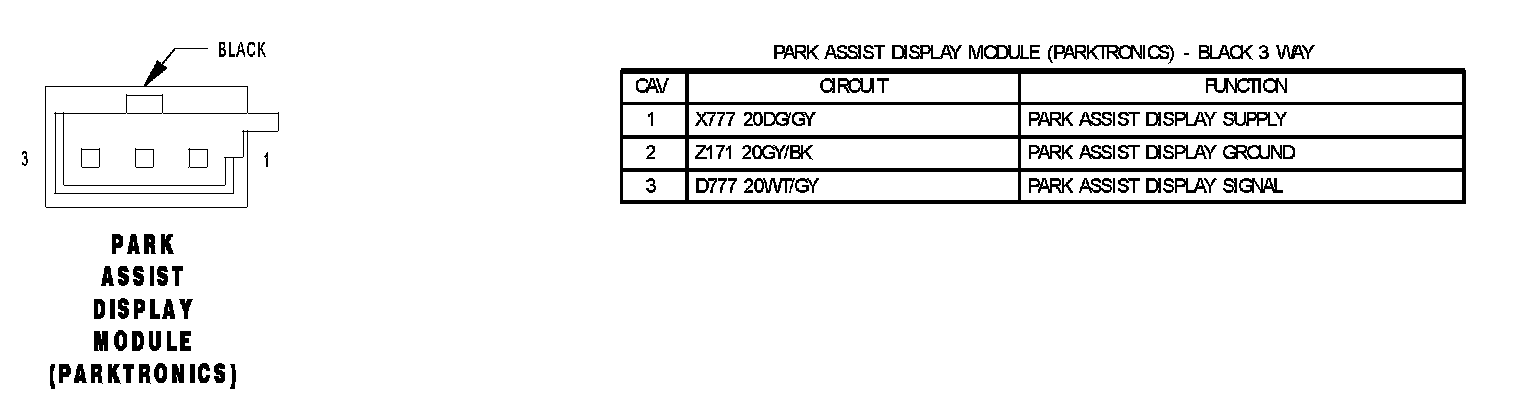

Park Assist Display Module (Parktronics):

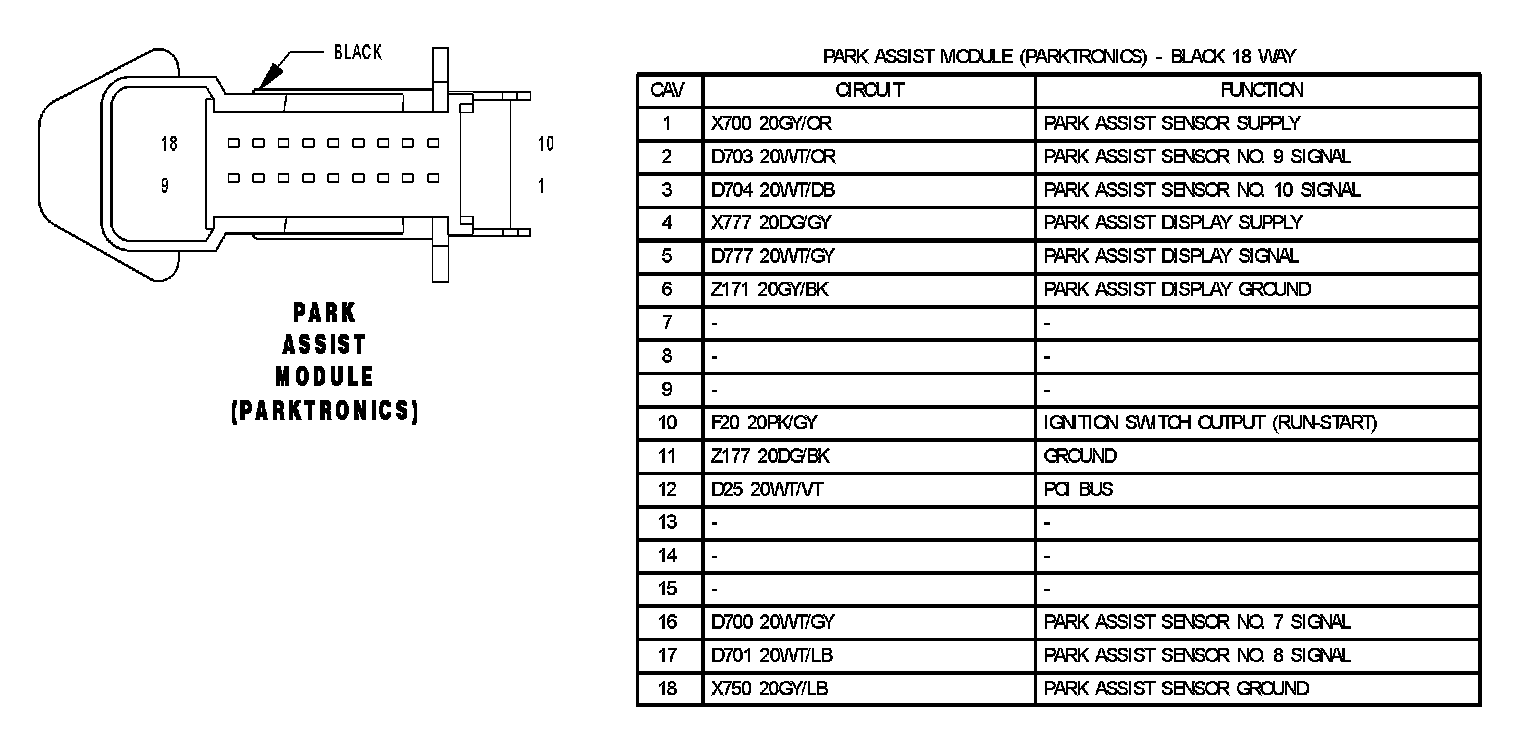

Park Assist Module (Parktronics):
