Power Seat Motor Position Sensor
Power Seat Motor Position Sensor
Seat Position Sensor - Driver Front Riser:
Seat Position Sensor - Driver Horizontal:
Seat Position Sensor - Driver Rear Riser:

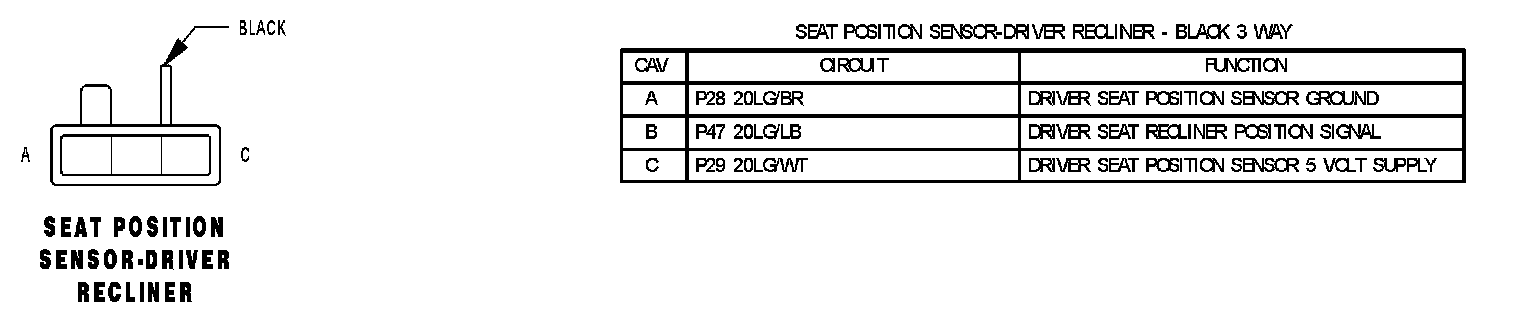

Seat Position Sensor - Driver Recliner:
