Pacifica V6-3.8L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
Power Window Switch

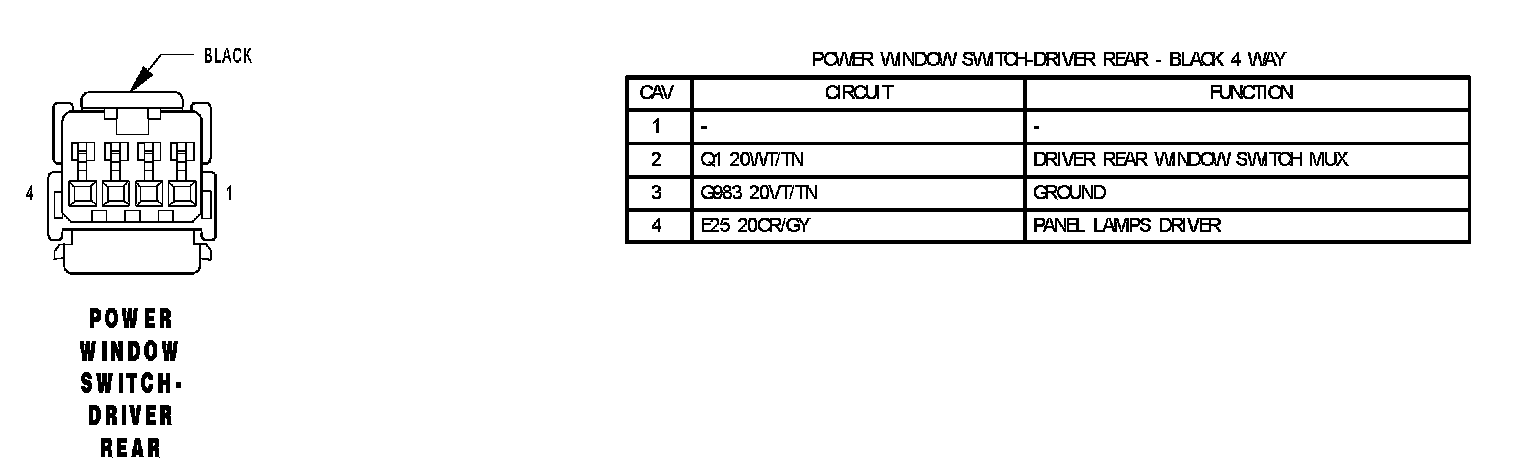

Power Window Switch - Driver Rear:

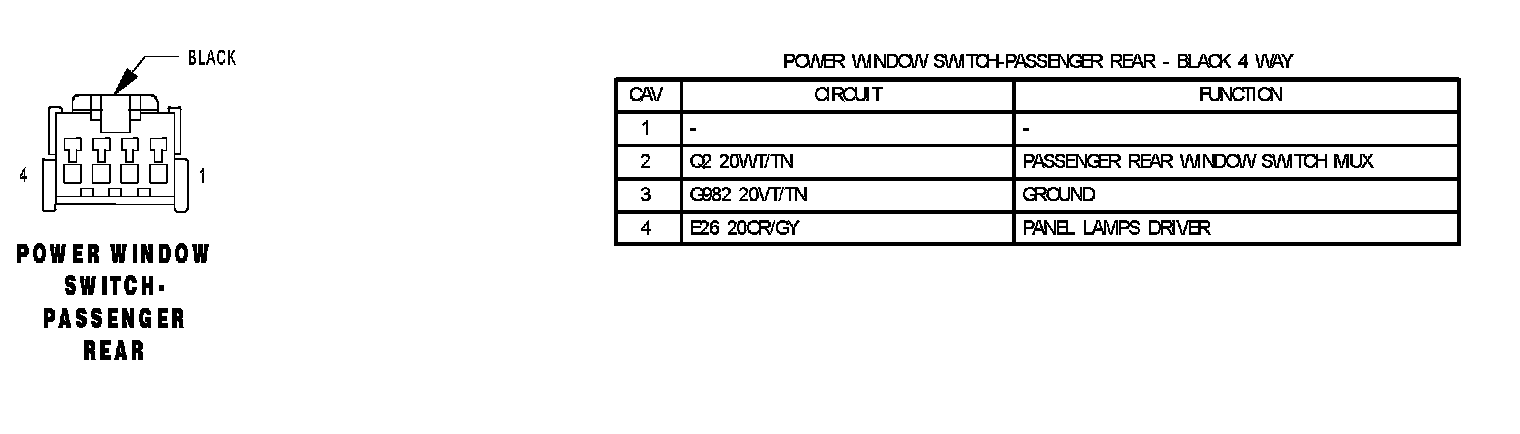

Power Window Switch - Passenger Rear:
