Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

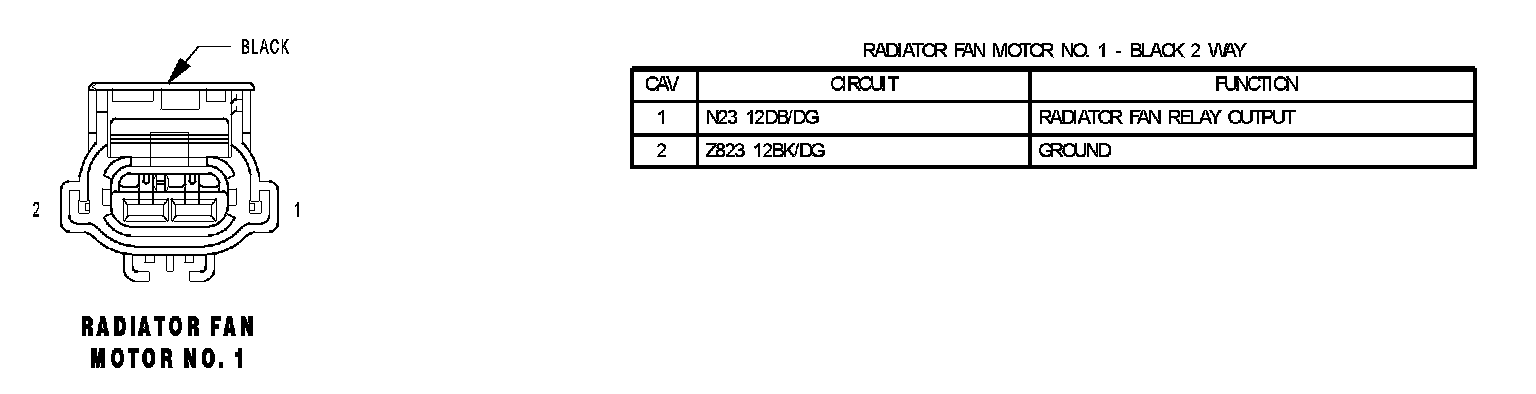

Radiator Fan Motor No.1:

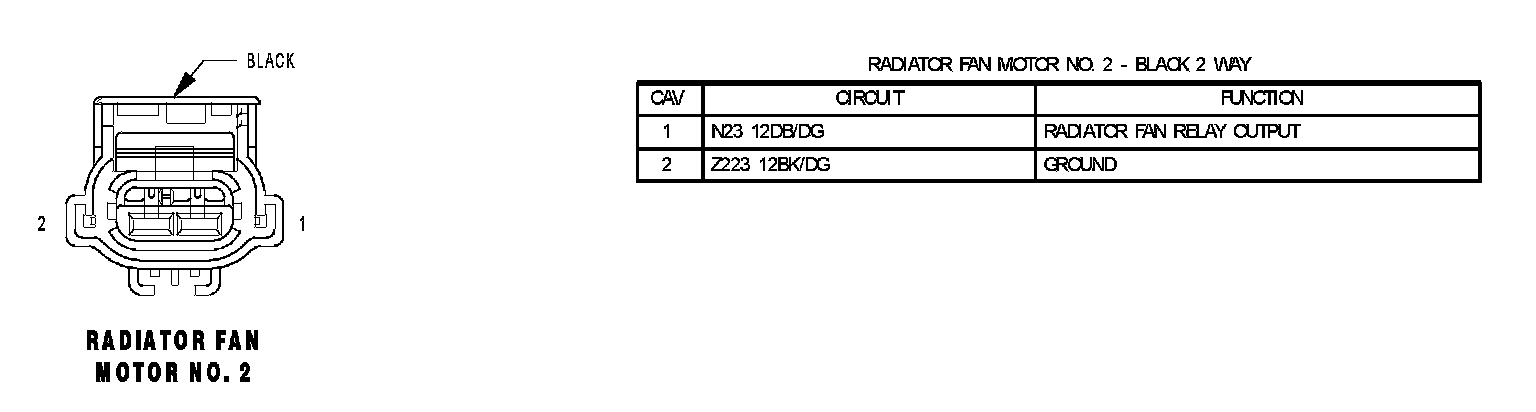

Radiator Fan Motor No.2:
