Seat Temperature Switch
Seat Temperature Switch
Heated Seat Switch - Left Middle Row:

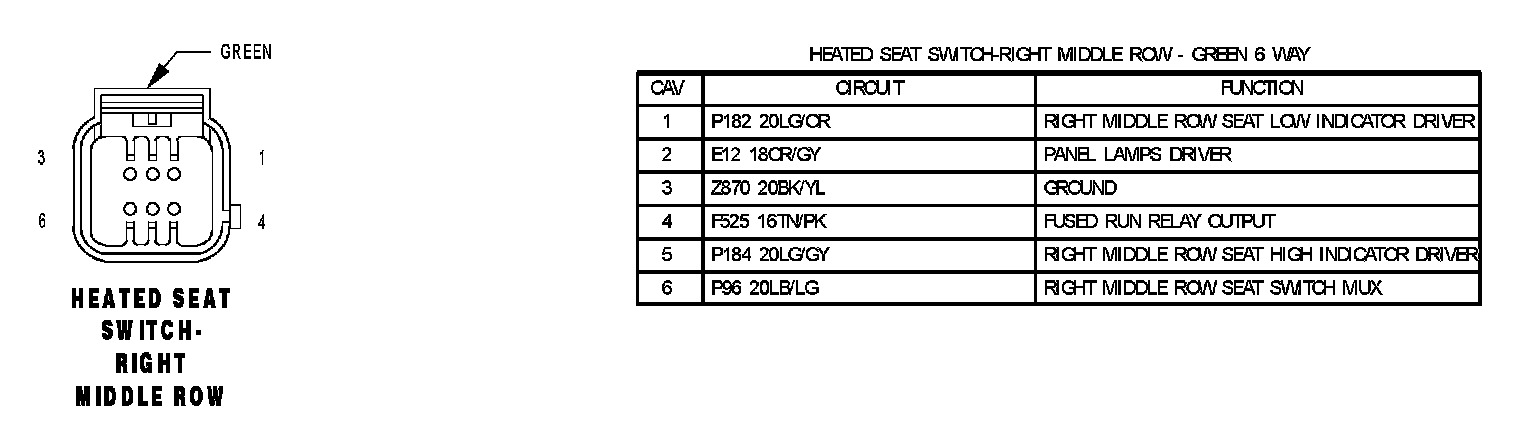

Heated Seat Switch - Right Middle Row:
