Chrysler
>>
2005
>>
Pacifica V6-3.8L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate Lock
Trunk / Liftgate Lock

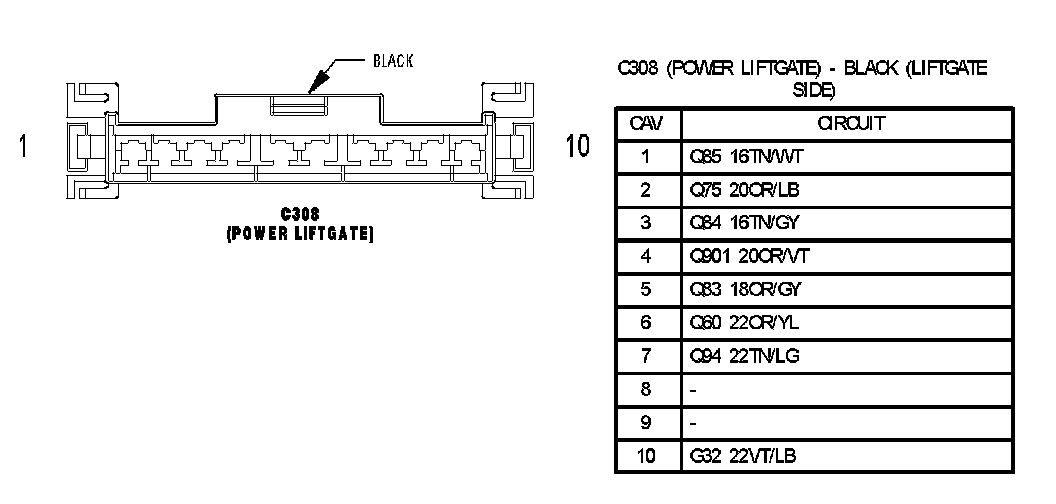

C308 (Power Liftgate):
C308 (Power Liftgate):
