Radio, Stereo, and Compact Disc

PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.

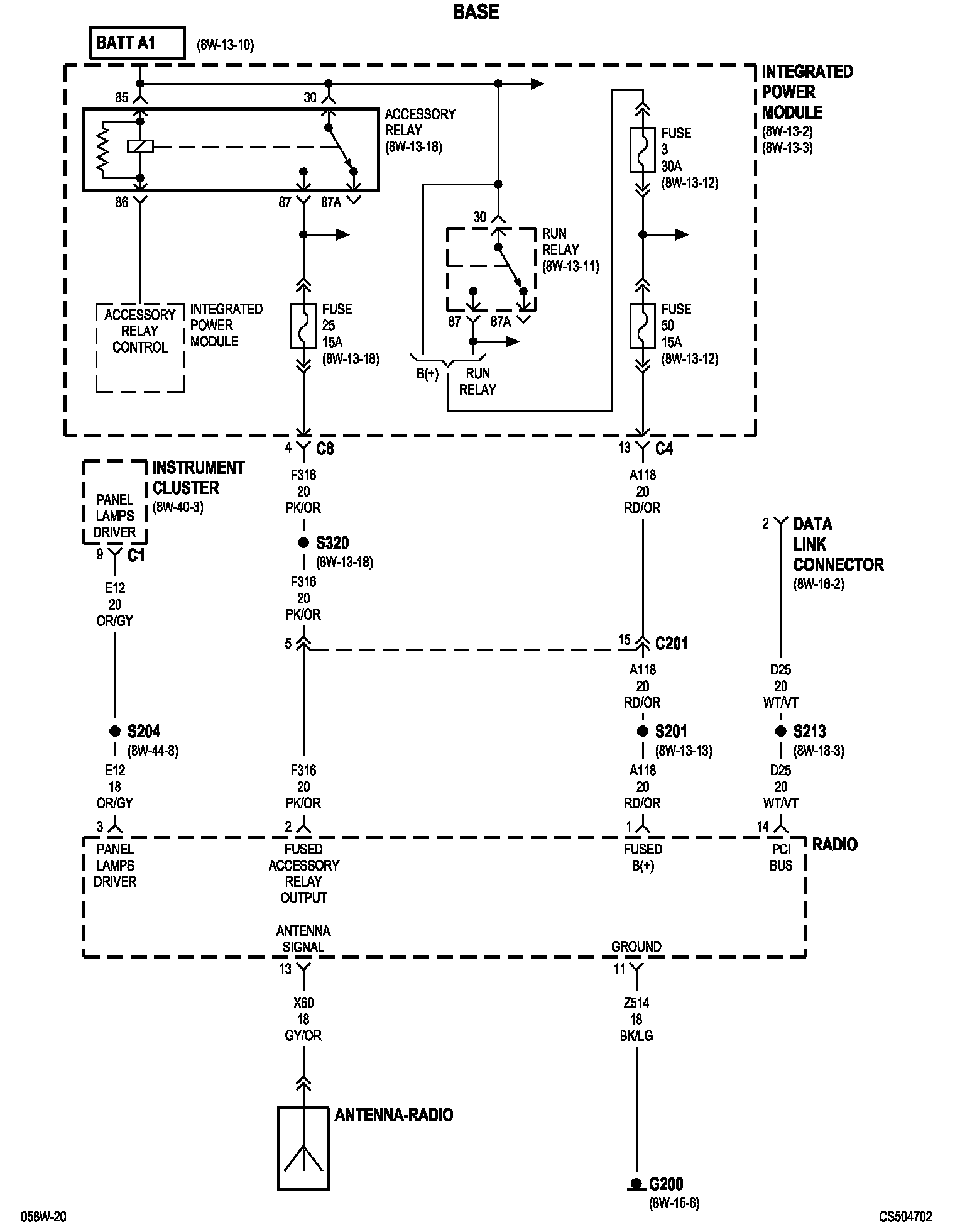

8w-47-2 (Base):

8w-47-3 (Base):

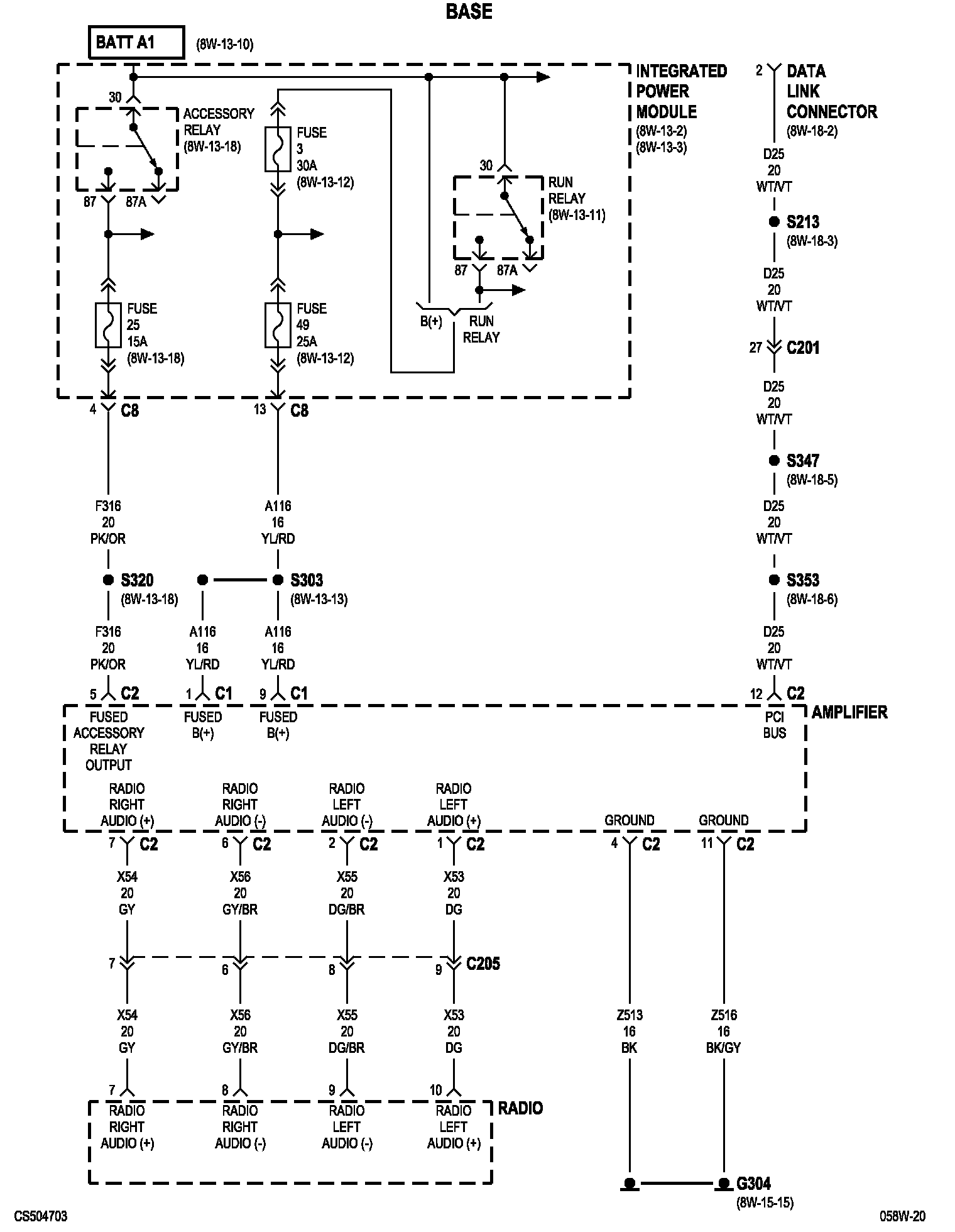

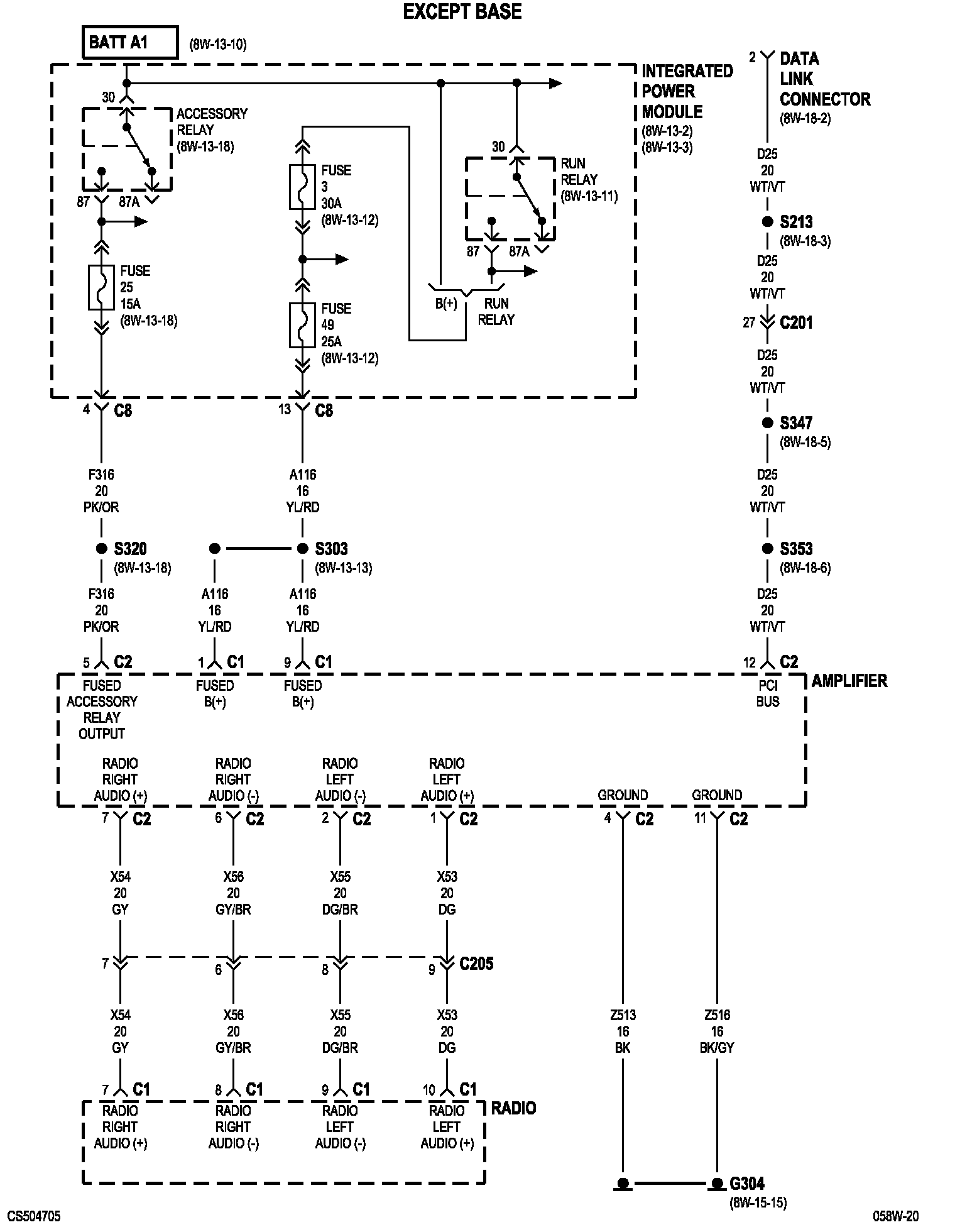

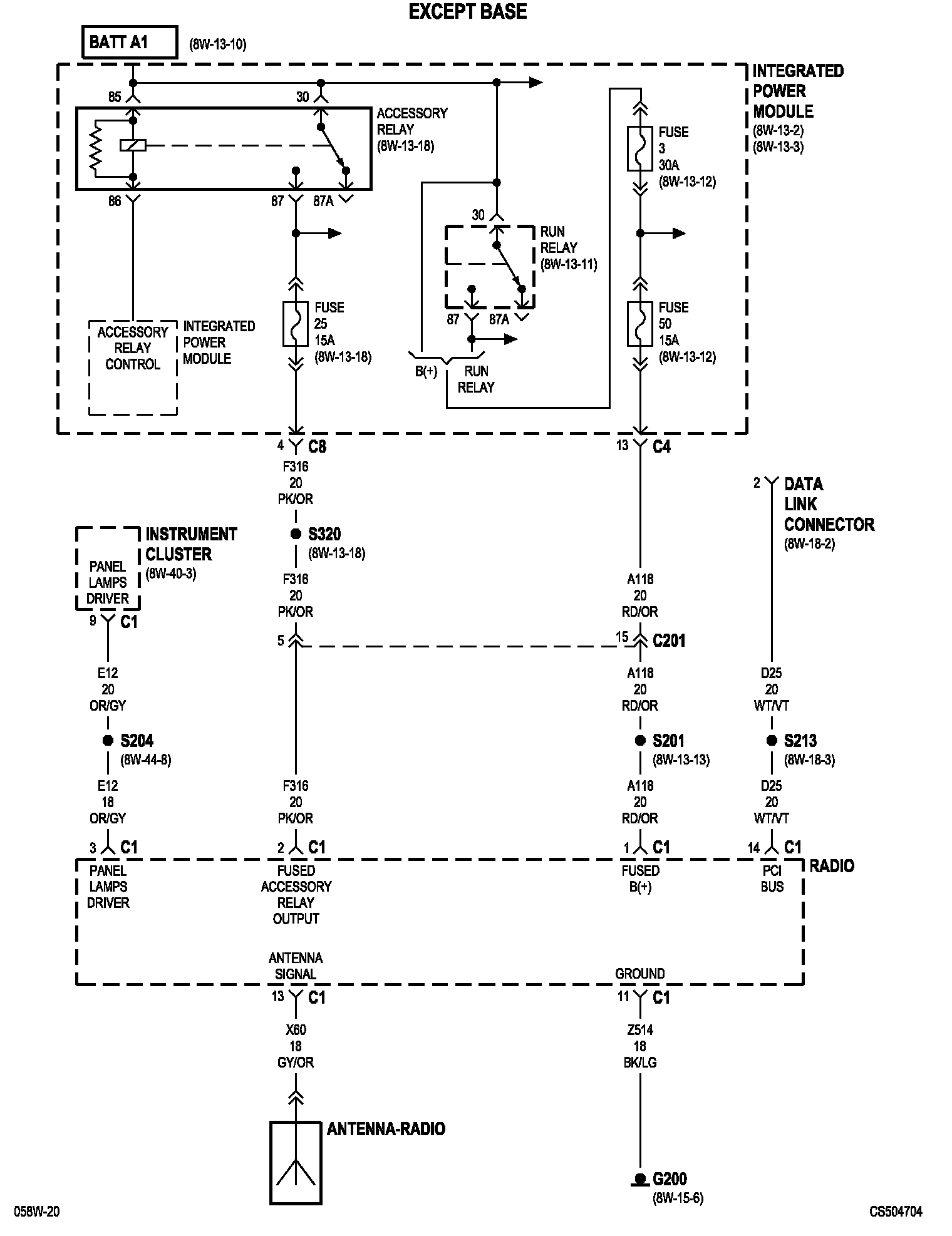

8w-47-4 (Except Base):

8w-47-5 (Except Base):

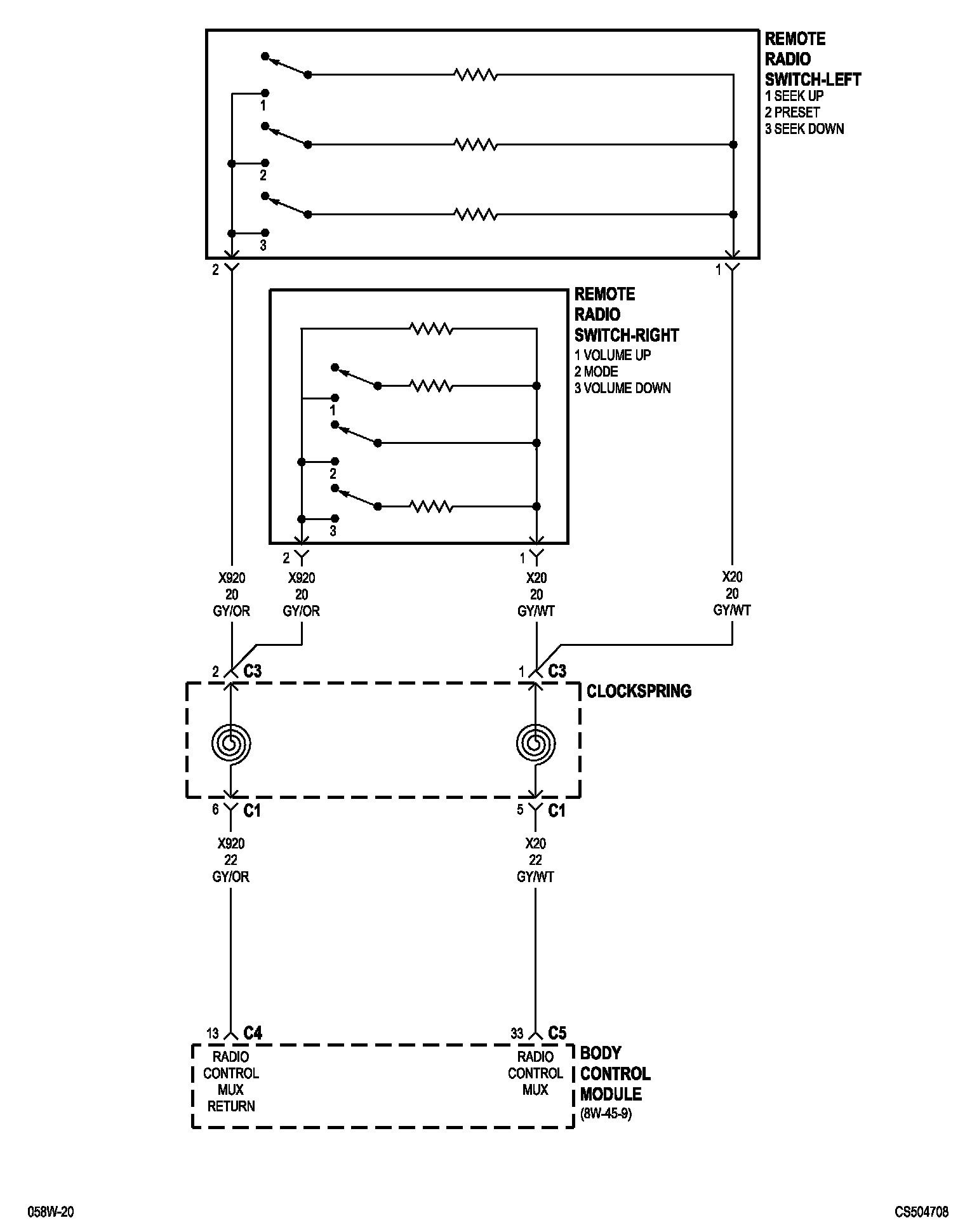

8w-47-6:

8w-47-7:

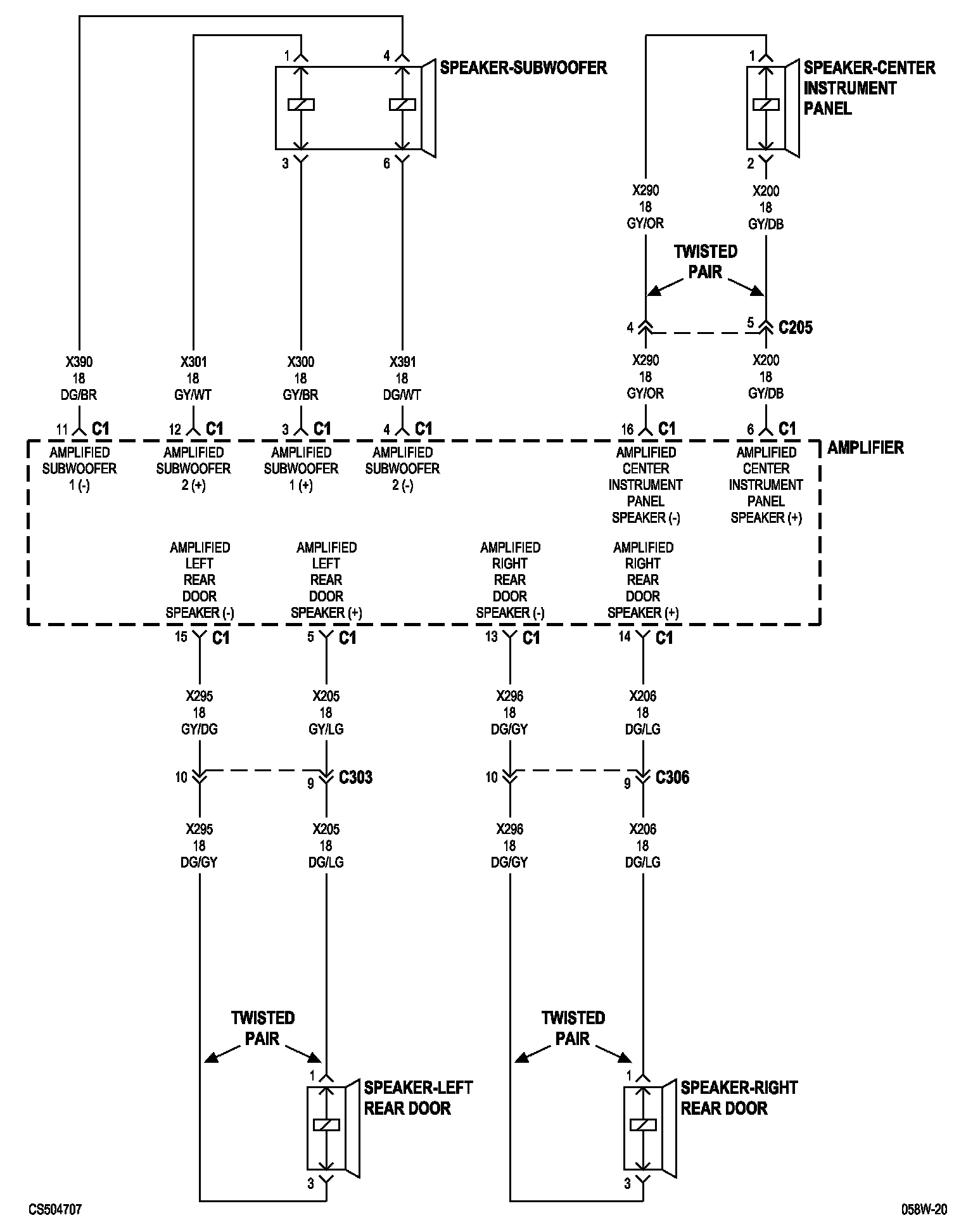

8w-47-8:

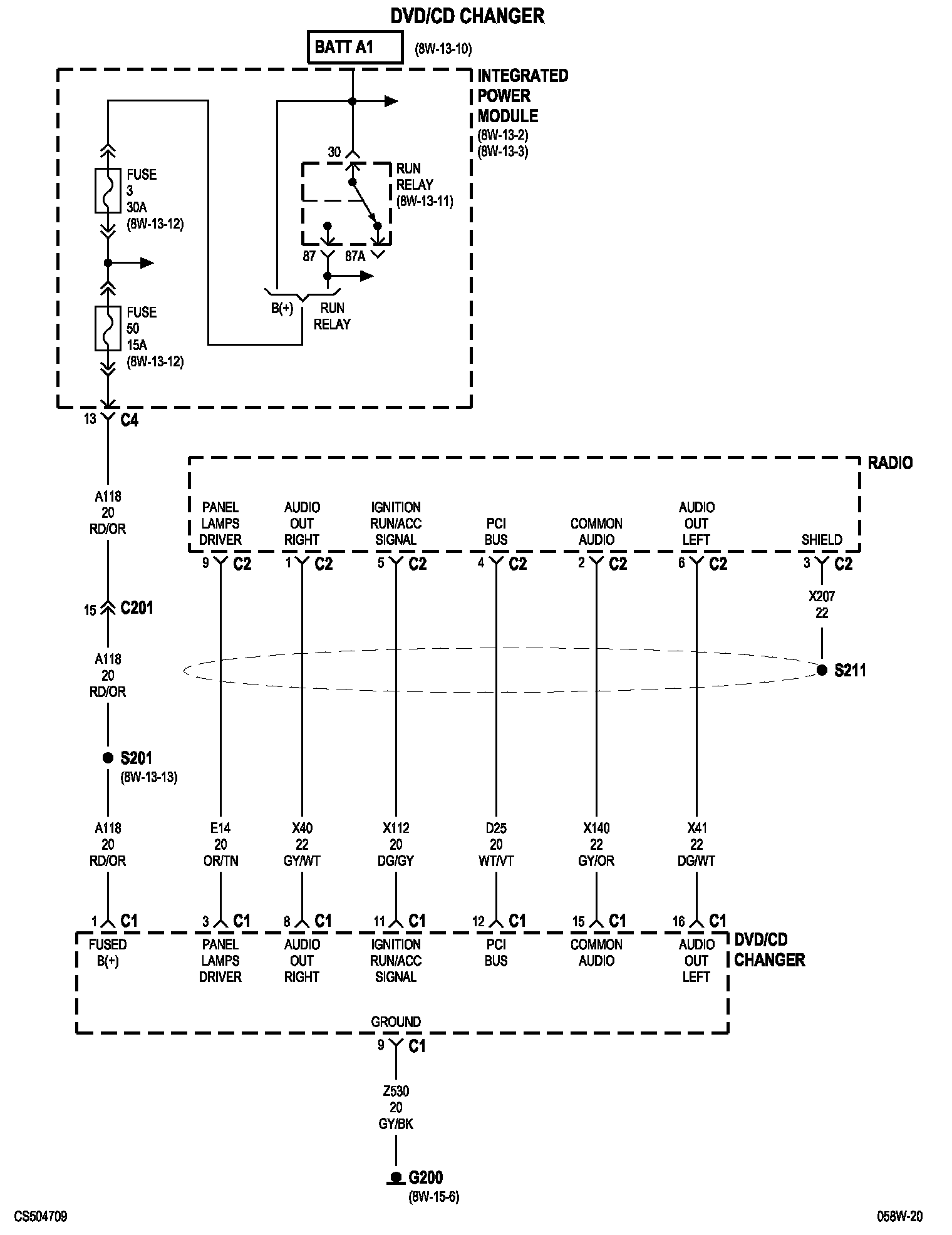

8w-47-9 (DVD/CD Changer):

8w-47-10 (DVD):

8w-47-11 (Satellite Radio):

8w-47-12 (Satellite Radio):

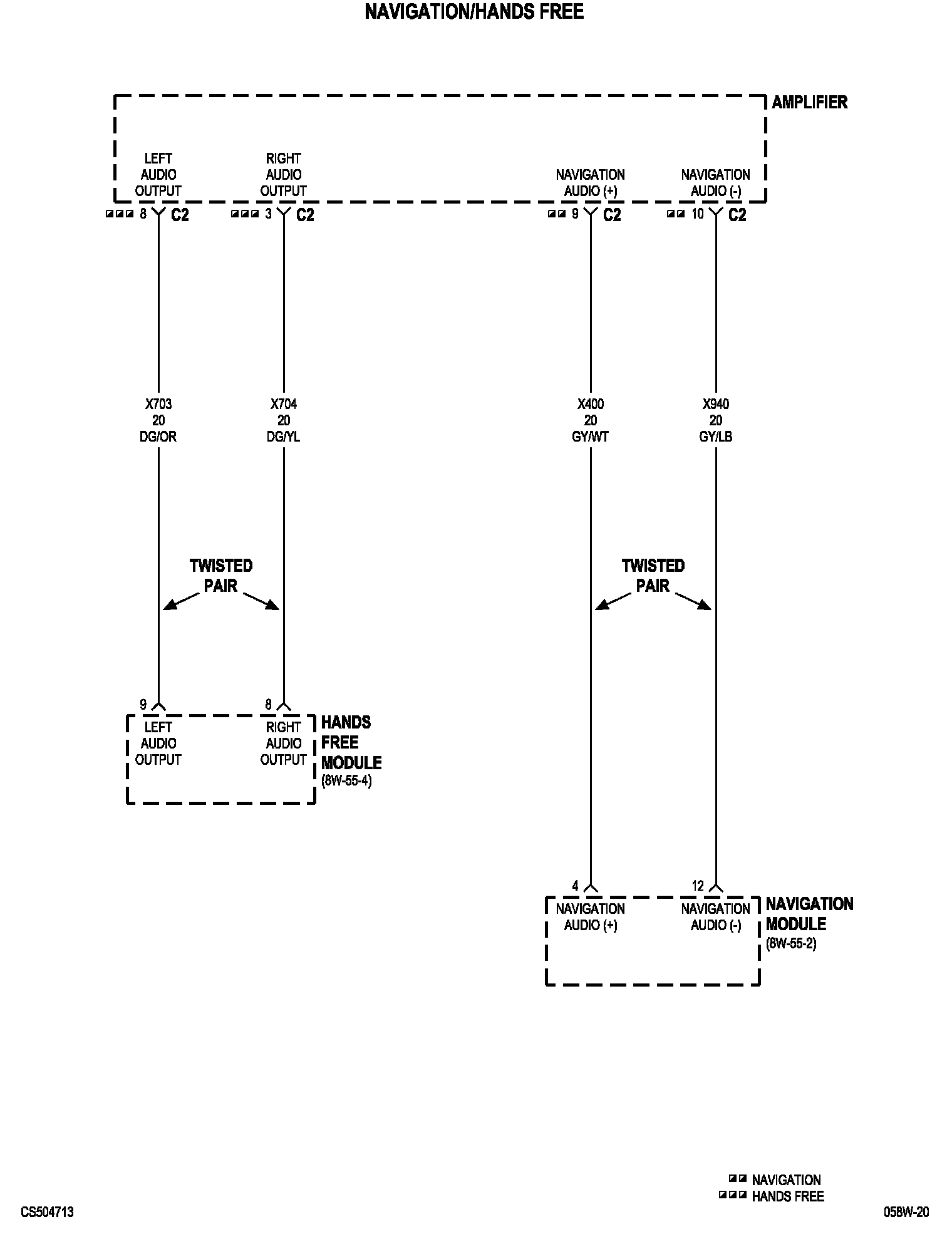

8w-47-13 (Navigation/Hands Free):

Other Diagrams: Other diagrams referred to by number (i.e. 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams By Number. Diagrams By Number
