Power Distribution Module: Locations

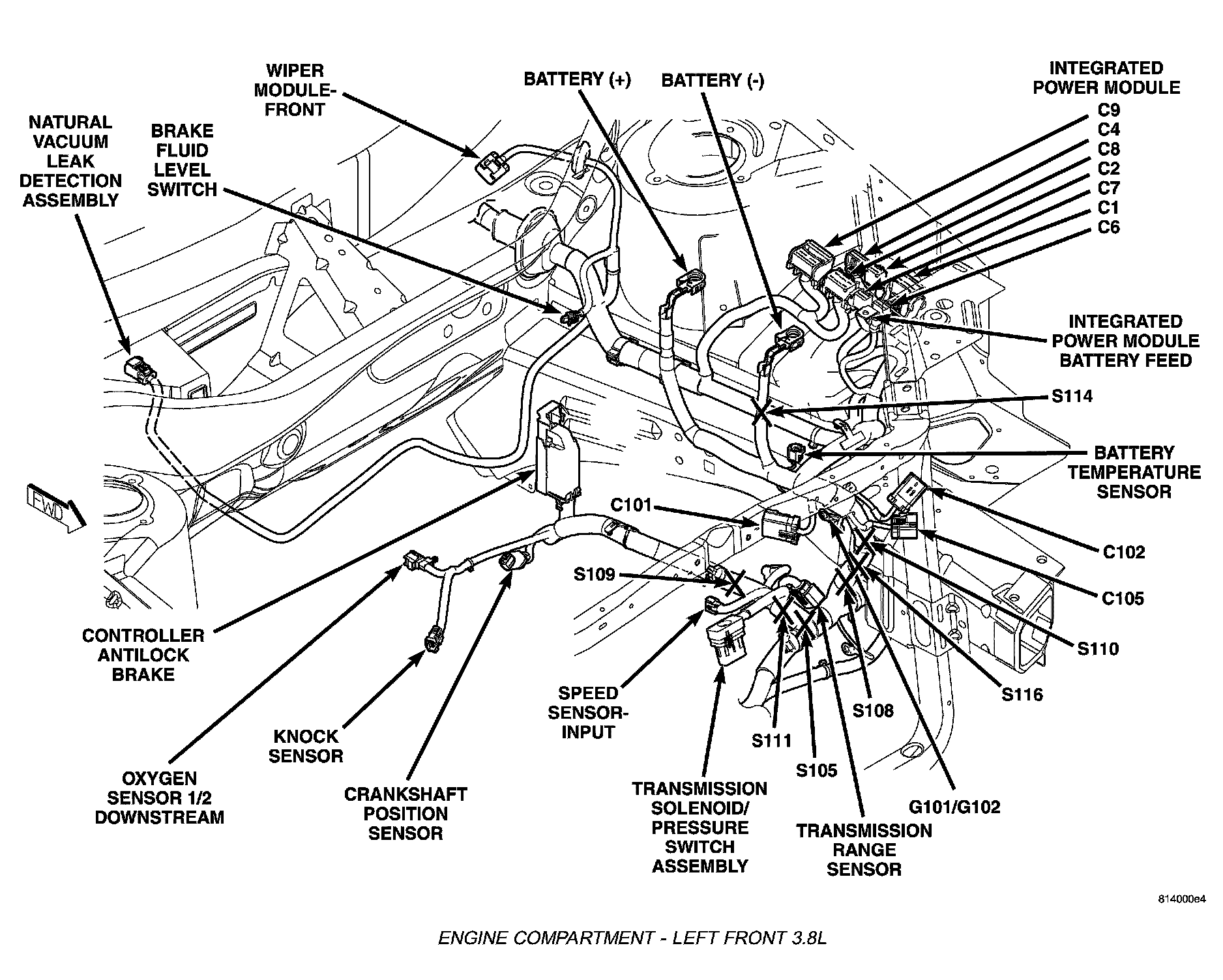

Engine Compartment - Left Front-3.8L:



Engine Compartment - Left Front And Rear:



Liftgate:
