Electrical - Driver's Door Switches Inoperative
NUMBER: 08-038-04GROUP: Electrical
DATE: December 2, 2004
SUBJECT:
Inoperative Driver Door Switches
OVERVIEW:
This bulletin involves replacing the driver door interior handle and, if necessary, the driver door switch module.
MODELS:
2004 - 2005 (CS) Pacifica
NOTE:
This bulletin applies to vehicles built on or before November 22, 2004 (MDH 1122XX).
SYMPTOM/CONDITION:
The vehicle operator may experience a permanent loss in ability to actuate all of the following functions from the driver's door switches:
^ Power door locks.
^ Right or left power mirrors.
^ Power seat adjustments.
^ Power window control.
^ Right and left heated mirrors.
^ Memory functions associated with the listed systems (if applicable).
^ Loss of communication with the driver's door switch module.
The loss of function may occur when attempting to control these functions from any of the switches located on the driver's door.
DIAGNOSIS:
Perform a "Hard Reset" of the driver's door switch module. This may be accomplished by removing all power (including memory keep alive power) from the driver's door switch module by unplugging the module power connector. Alternatively, vehicle power may be interrupted by removing the negative battery terminal when the ignition switch is in the OFF position.
The driver's door interior handle must be replaced to protect the switch module from static electricity. The new handle is more resistant to electrostatic discharge.
If the vehicle operator describes the Symptom/Condition and the vehicle was built on or before November 22, 2004 (MDH 1122XX), perform the Repair Procedure.

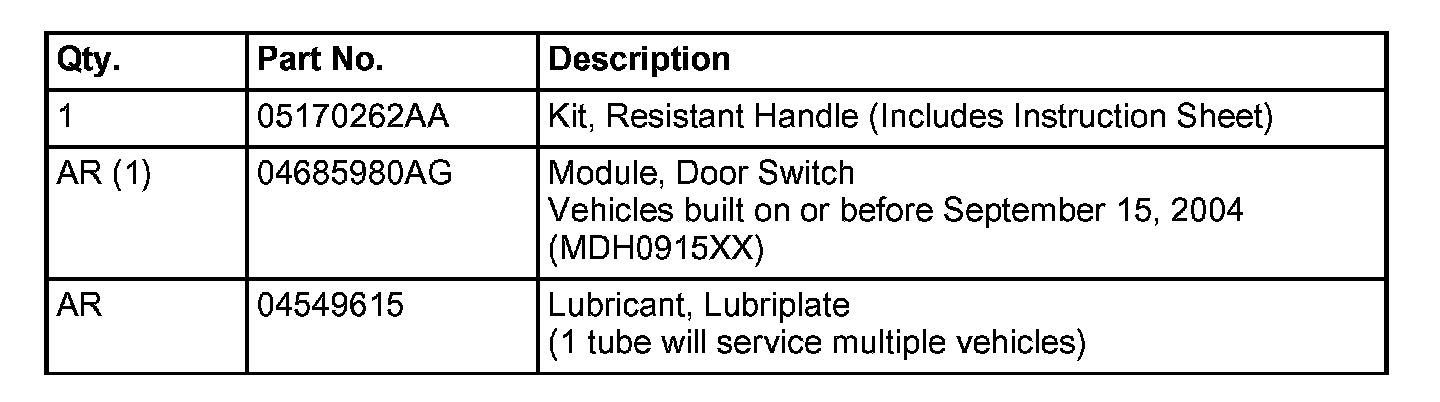

PARTS REQUIRED:
NOTE:
Vehicles built on or after September 16, 2004 through and including November 22, 2004 already have the updated driver's door switch module. Replacing the driver's door switch module should not be necessary on these vehicles.
REPAIR PROCEDURE:
1. Disconnect the negative battery cable.
2. Remove the driver's door trim panel. Refer to the service information in TechCONNECT. Refer to 23 - Body/Door - Front/Trim Panel - Removal.
3. Remove the door tweeter speaker. Refer to the service information in TechCONNECT. Refer to 8 - Electrical/Audio/Speaker - Removal (Fig. 1).
4. Remove the power seat switch. Refer to the service information in TechCONNECT. Refer to 8 - Electrical/Power Seats/Driver Seat Switch - Removal.
5. Replace the driver's door interior handle, p/n 05170262AA, as described on Mopar Instruction Sheet K6853619 included in the handle kit.
6. Install the power seat switch.
7. If the vehicle was built on or before September 15, 2004, proceed to Step # 8. If the vehicle was built on or after September 16, 2004 (MDH 0916XX) through and including November 22, 2004 (MDH 1122XX), proceed to Step # 9.
NOTE:
Vehicles built on or after September 16, 2004 through and including November 22, 2004 already have the updated driver's door switch module. Replacing the driver's door switch module should not be necessary on these vehicles.
8. Replace the driver door switch module, p/n 04685980AG. Refer to the service information available on TechCONNECT. Refer to 8 - Electrical/Electronic Control Modules/Door Module - Removal/Installation.
9. Install the door tweeter speaker.
10. Install the driver's door trim panel.
11. Connect the negative battery cable.
POLICY:
Reimbursable within the provisions of the warranty.

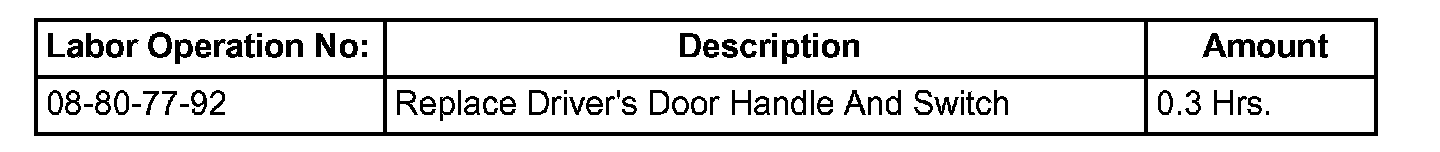

TIME ALLOWANCE:

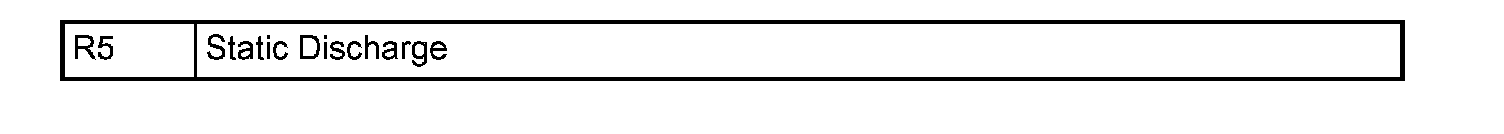

FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
