Interior - 2nd Row Bench Seat Latch Won't Release: Overview
NUMBER: 23-054-05GROUP: Body
DATE: November 24, 2005
SUBJECT:
Second Row Bench Seat Latch Will Not Release
OVERVIEW:
This bulletin involves replacing both second row seat latch release assemblies.
MODELS:
2005 (CS) Pacifica
NOTE:
This bulletin applies to vehicles built with a second row bench seat (sales code CF5) on or before July 25, 2005 (MDH 0725XX).
SYMPTOM/CONDITION:
One or both of the second row bench seat latches may not release.
DIAGNOSIS:
NOTE:
For the sake of clarity in this bulletin , the term left seat refers to the 35% seat and the term right seat refers to the 65% seat.
If either second row bench seat latch does not release, perform the Repair Procedure on both the left second row seat and the right second row seat.

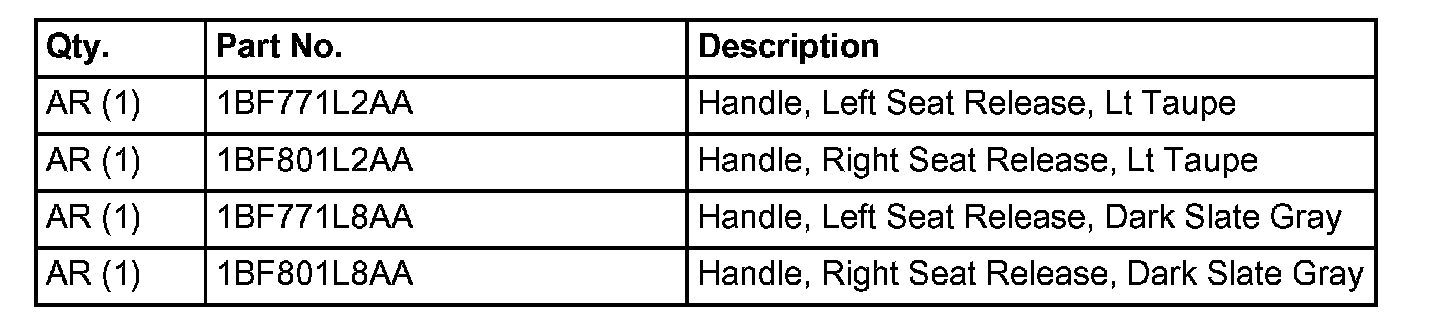

PARTS REQUIRED:
POLICY:
Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:

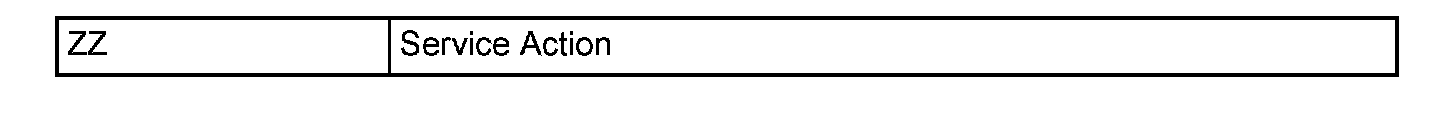

FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
