Steering - Steering Wheel Tilt Mechanism Inoperative: Overview

NUMBER: 19-001-05

GROUP: Steering

DATE: January 26, 2005

SUBJECT:
Steering Wheel Tilt Mechanism Inoperative

OVERVIEW:
This bulletin involves placing a mastic patch over the eyelet of the steering wheel tilt mechanism linkage.

MODELS:

2004 - 2005 (CS) Pacifica

2005 (RS) Town & Country/Caravan/Voyager

2005 (RG) Chrysler Voyager (International Markets)

NOTE:
This bulletin applies to Left Hand Drive vehicles only.

SYMPTOM/CONDITION:

The vehicle operator may experience the steering wheel tilt mechanism is inoperative.

DIAGNOSIS:

1. Pull on the tilt release lever to tilt the steering wheel then try and raise or lower the wheel depending on the steering wheel position.

2. If the steering wheel cannot be moved:

a. CS vehicles, proceed to CS Repair Procedure: Step # 1.

b. RS/RG vehicles, proceed to RS/RG Repair Procedure Step # 1.

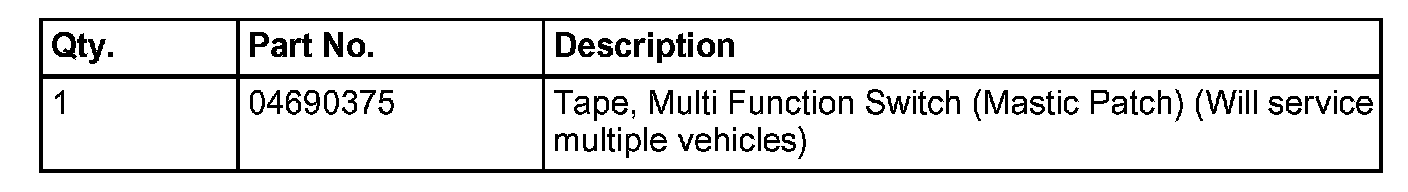

PARTS REQUIRED:

POLICY:
Reimbursable within the provisions of the warranty.





TIME ALLOWANCE:





FAILURE CODE:

Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
