Recall - Headlamp Wiring Harness Inspection/Replacement: Overview
March 2005Dealer Service Instructions for:
Safety Recall E04
Headlamp Wiring Harnesses
Models
2005 (CS) Chrysler Pacifica
NOTE:
This recall applies only to the above vehicles equipped with halogen headlamps (sales code LME) built from July 1, 2004 through January 31, 2005 (MDH 070100 through 013100).
IMPORTANT:
Some of the involved vehicles may be in dealer new vehicle inventory. Federal law requires you to stop sale and complete this recall service on these vehicles before retail delivery. Dealers should also consider this requirement to apply to used vehicle inventory and should perform this recall on vehicles in for service. Involved vehicles can be determined by using the VIP inquiry process.
Subject
The headlamp bulb wiring harness connectors on about 42,600 of the above vehicles may have incorrect electrical terminals. This can cause the headlamps to intermittently flicker or become inoperative, which could cause a crash without warning.
Repair
Both headlamp wiring harnesses must be inspected for a "Made in Mexico" tag. Vehicles that do not have a "Made in Mexico" tag on each harness must have the wiring harness(es) and low beam headlamp bulb(s) replaced.

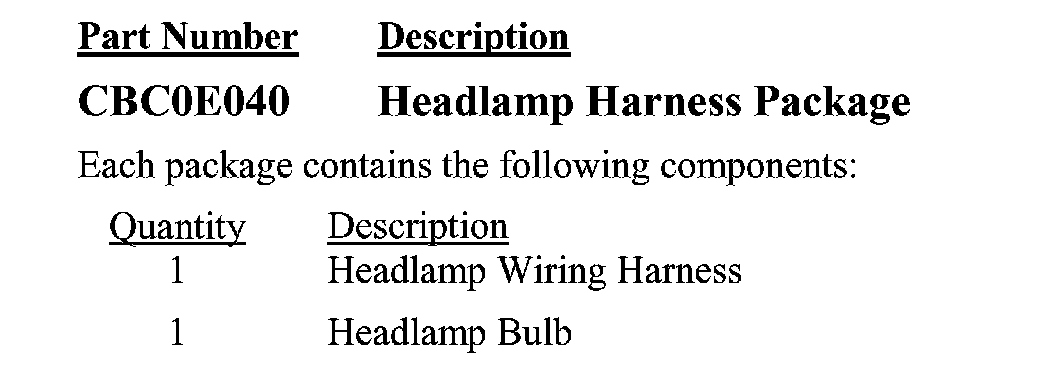

Parts Information
Each dealer to whom vehicles in the recall were invoiced will receive enough Headlamp Harness Packages to service about 100/0 of those vehicles.
NOTE:
Each headlamp harness package will repair one headlamp assembly.
Completion Reporting and Reimbursement
Claims for vehicles that have been serviced must be submitted on the DealerCONNECT Claim Entry Screen located on the Service tab. Claims submitted will be used by DaimlerChrysler to record recall service completions and provide dealer payments.

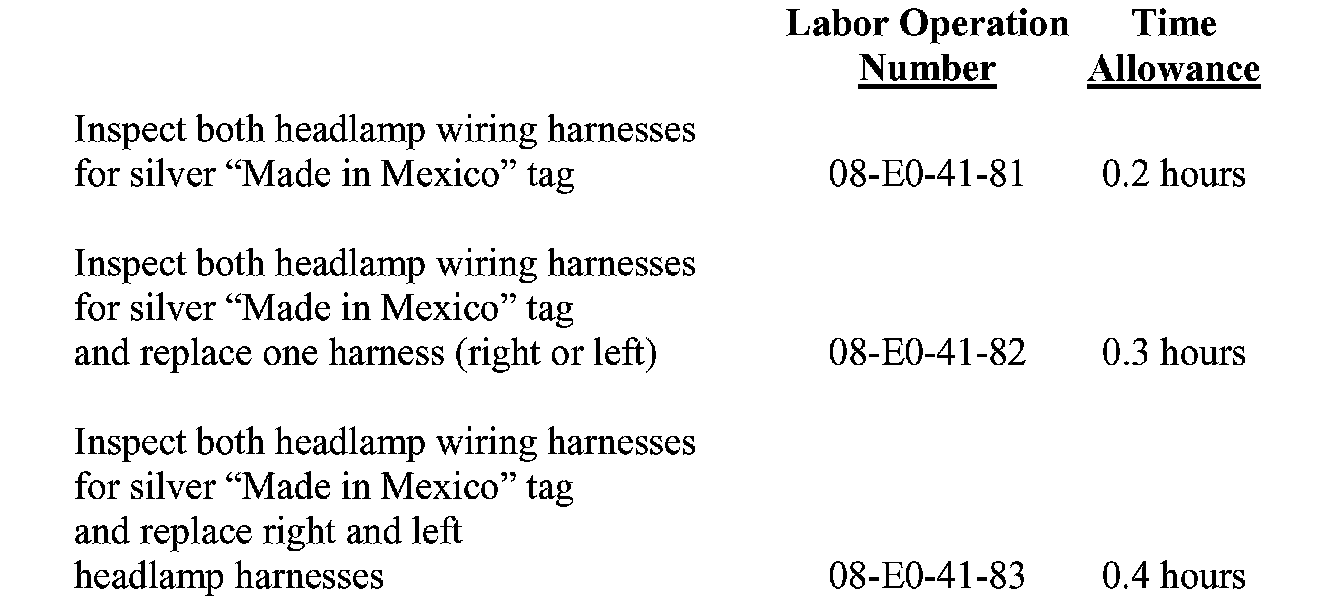

Use one of the labor operation numbers and time allowances shown.
Add the cost of the recall parts package plus applicable dealer allowance to your claim.
NOTE:
See the Warranty Administration Manual, Recall Claim Processing Section, for complete recall claim processing instructions.
Dealer Notification
All dealers will receive a copy of this dealer recall notification letter by mail. Two additional copies will be sent through the DCMMS. To view notification on DealerCONNECT, select "Global Recall System" on the Service tab, then click on the description of this notification.
Owner Notification and Service Scheduling
All involved vehicle owners known to DaimlerChrysler are being notified of the service requirement by first class mail. They are requested to schedule appointments for this service with their dealers. A generic copy of the owner letter is included.
Enclosed with each owner letter is an Owner Notification postcard to allow owners to update our records if applicable.
Dealers are encouraged to consider alternative scheduling and servicing approaches for this recall. This repair does not require hoists or other full service facility special equipment and is a DaimlerChrysler Mobile Service approved repair.
Vehicle lists, Global Recall System, VIP and Dealer Follow UP
All involved vehicles have been entered into the DealerCONNECT Global Recall System (GRS) and Vehicle Information Plus (VIP) for dealer inquiry as needed.
GRS provides involved dealers with an updated VIN list of their incomplete vehicles. The owner's name, address and phone number are listed if known. Completed vehicles are removed from GRS within several days of repair claim submission.
To use this system, click on the "Service" tab and then click on "Global Recall System." Your dealer's VIN list for each recall displayed can be sorted by: those vehicles that were unsold at recall launch, those with a phone number, city, zip code, or VIN sequence.
Dealers must perform this repair on all unsold vehicles before retail delivery.
Dealers should also use the VIN list to follow up with all owners to schedule appointments for this repair.
Recall VIN lists may contain confidential, restricted owner name and address information that was obtained from the Department of Motor Vehicles of various states. Use of this information is permitted for this recall only and is strictly prohibited from all other use.
Additional Information
If you have any questions or need assistance in completing this action, please contact your Service and Parts District Manager.
Customer Services Field Operations
DaimlerChrysler Corporation
