Windshield Washer Hose: Service and Repair

REMOVAL

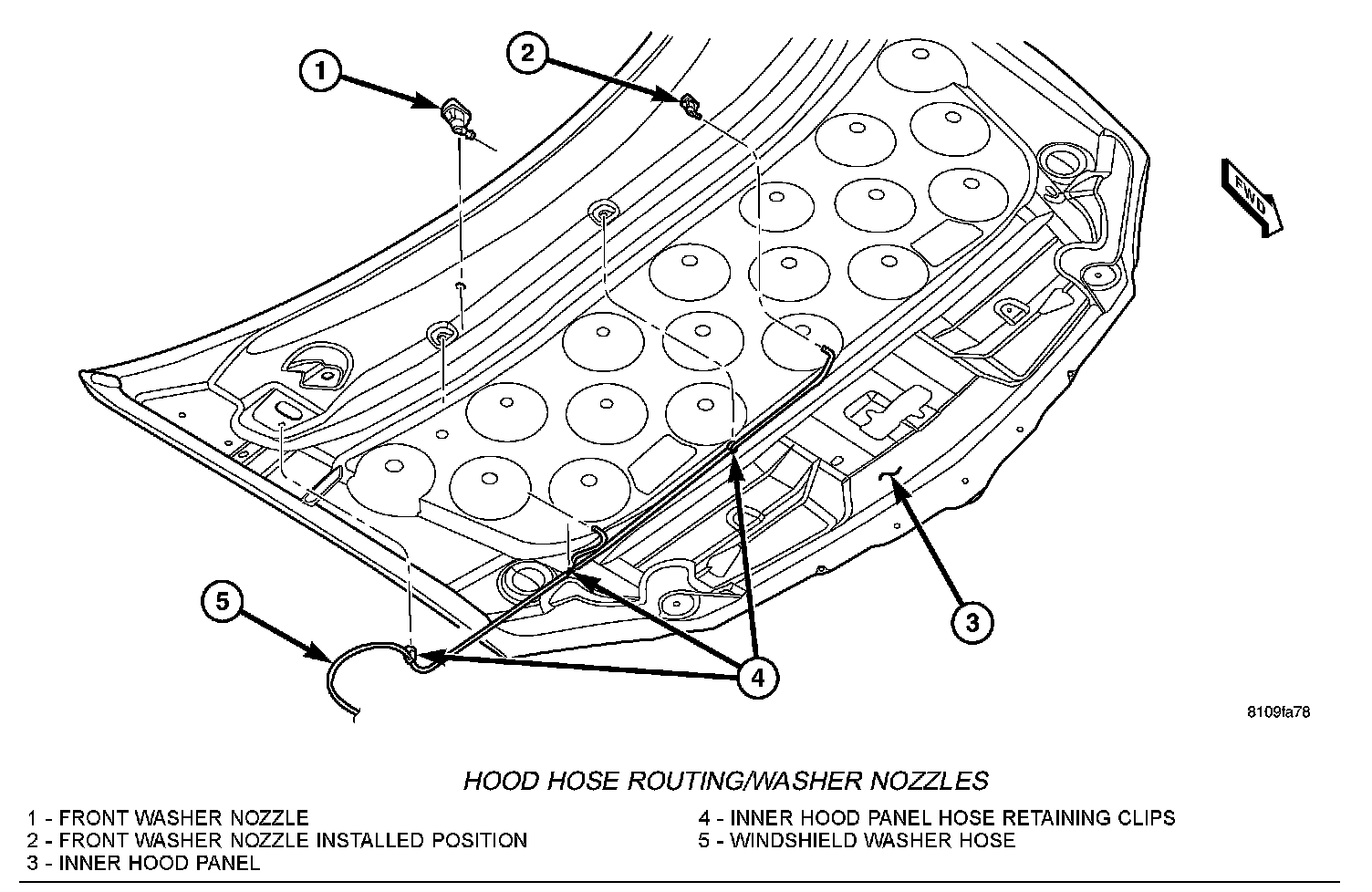

Hood Hose Routing/Washer Nozzles:

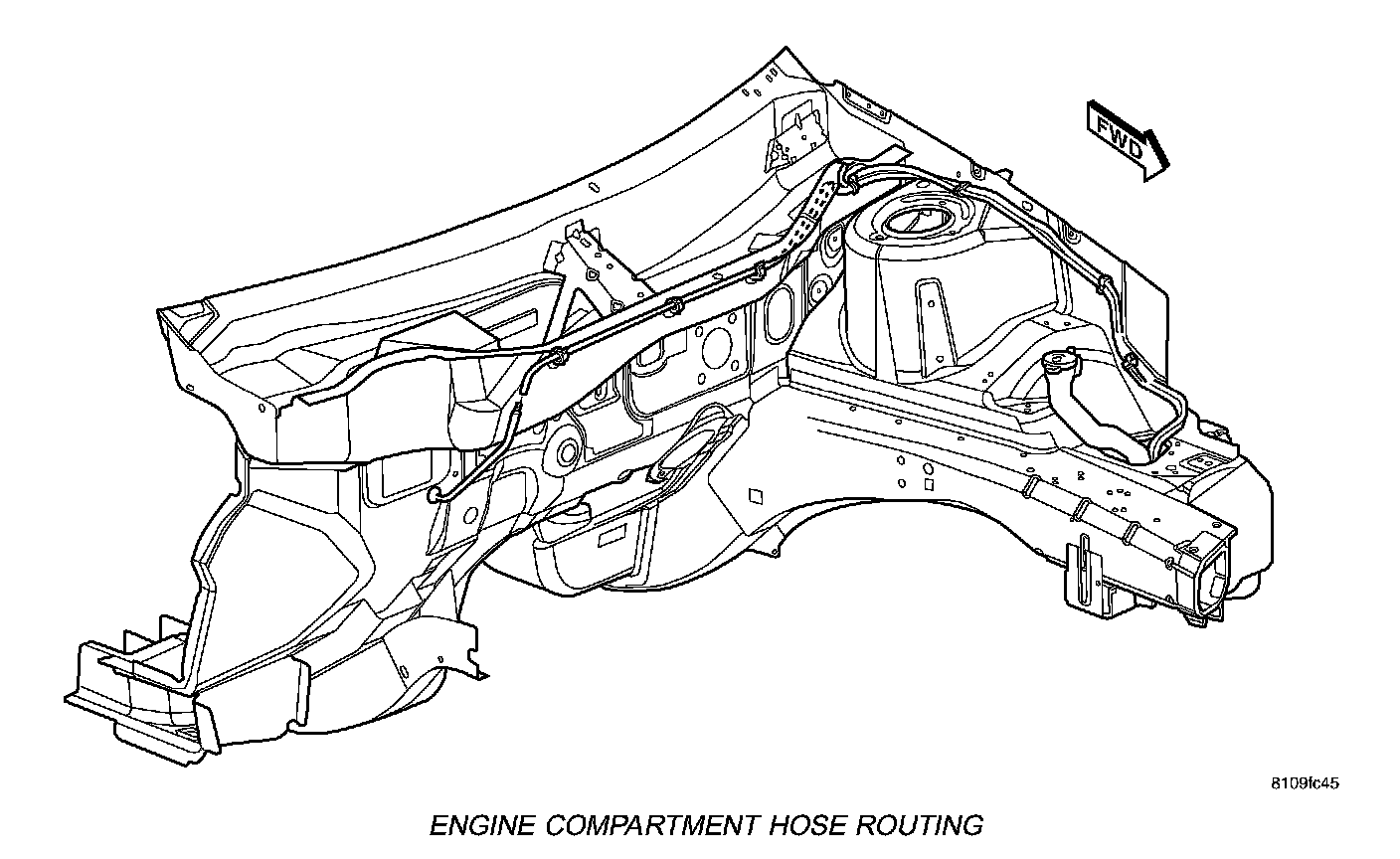

Engine Compartment Hose Routing:

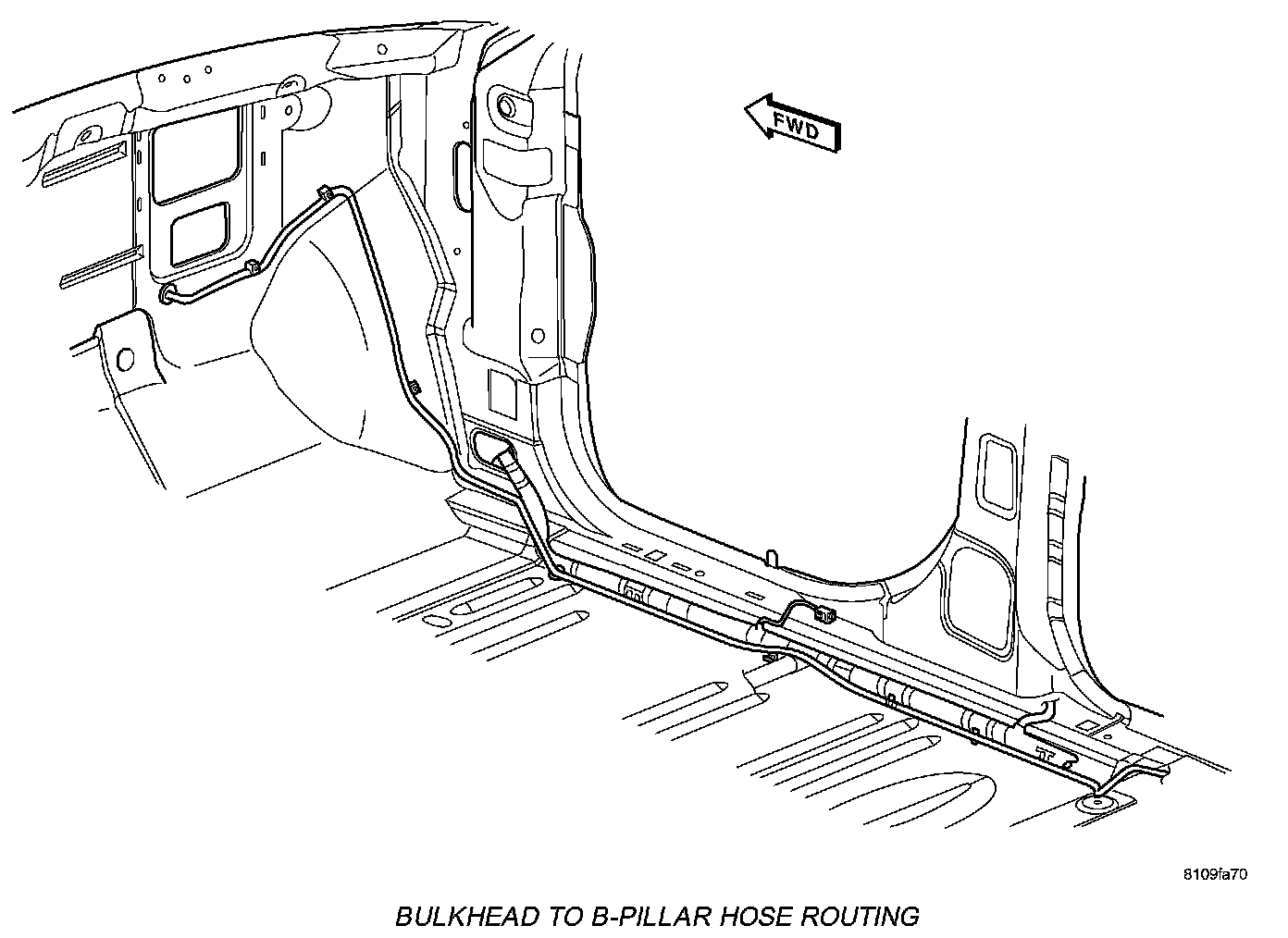

Bulkhead To B-pillar Hose Routing:

C/D-Pillar Body House Routing:

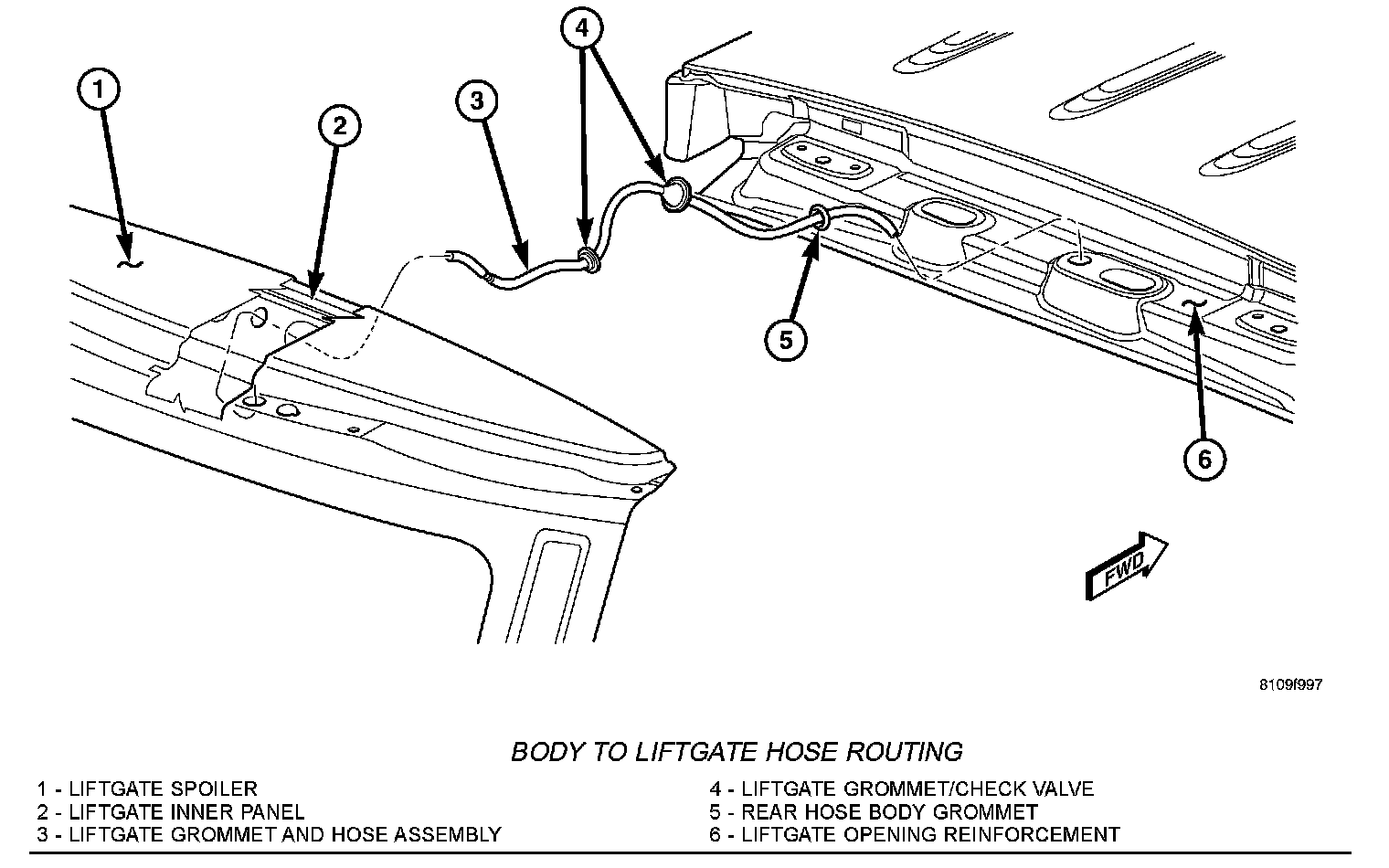

Body To Liftgate House Routing:

1. Remove components as necessary to access/replace washer hose(s).
INSTALLATION
1. Install components that were necessary to remove to access washer hose.
2. Verify vehicle and system operation.
