Windshield Washer Spray Nozzle: Service and Repair

REMOVAL
1. Open hood.
2. Disconnect the washer hose the replacing nozzle.

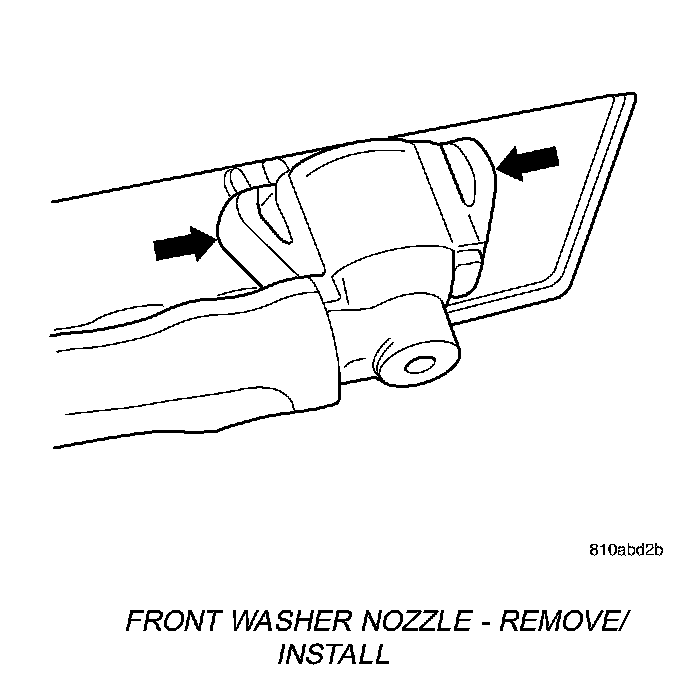

Front Washer Nozzle - Remove/Install:

3. Push in on the sides of the nozzle and push through hood panel to remove.

INSTALLATION
1. Position nozzle in hood panel and firmly push down through panel until snap is heard.
2. Connect washer hose.
3. Verify vehicle and system operation.
