Wiper Motor: Testing and Inspection

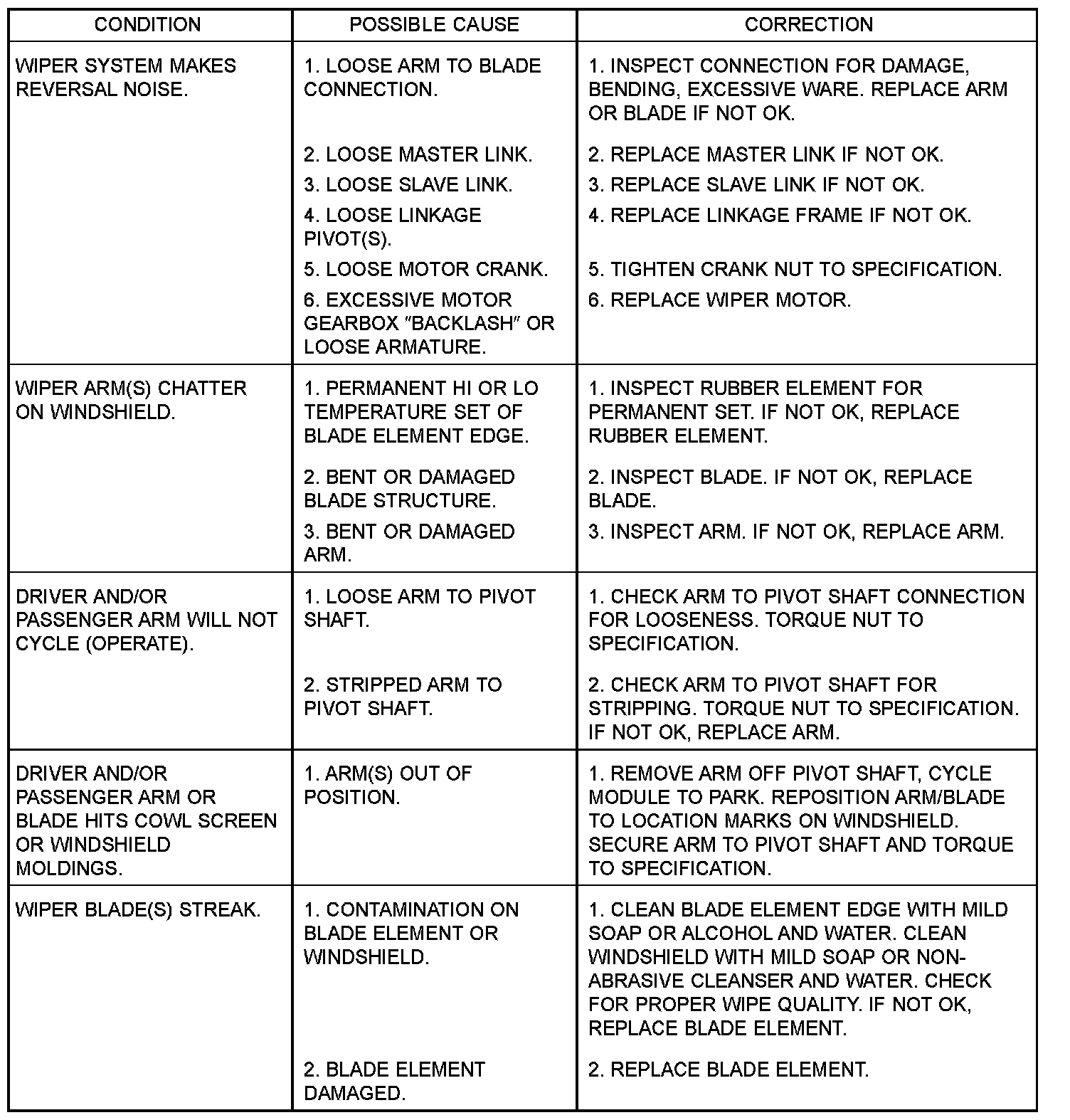

Wiper Motor Test part 1:

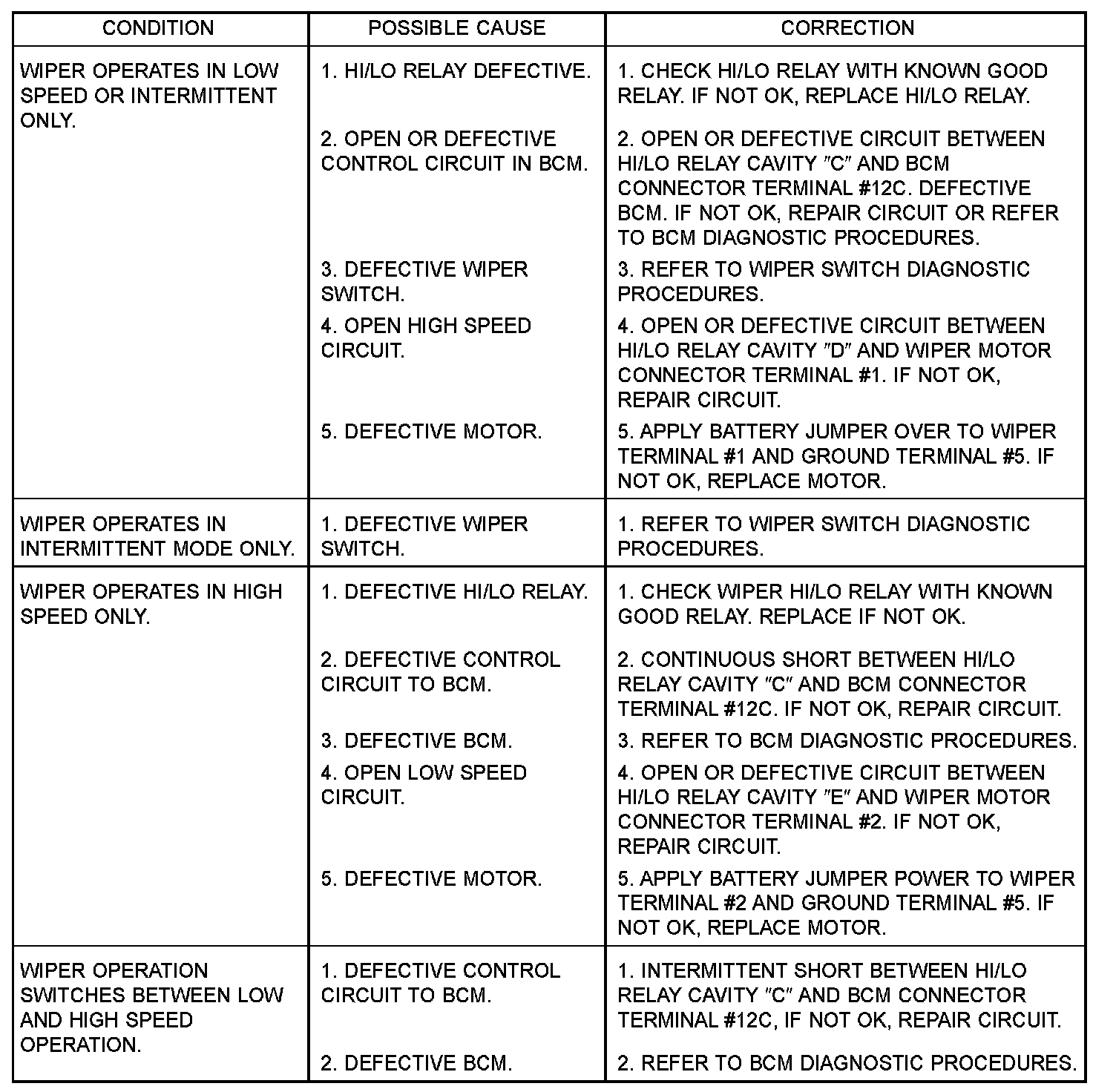

Front Wiper Motor part 2:

Front Wiper Motor part 3:

Front Wiper Motor part 4:

Front Wiper Motor part 5:

Whenever a wiper motor malfunction occurs, disconnect motor wire harness and clean the terminals. Ensure the wire harness is properly connected before starting diagnosis and repair procedures. Refer to WIPER MOTOR TEST table and the appropriate Body Diagnostic Procedures manual.
