Home >> Chrysler >> 2005 >> Pacifica V6-3.8L VIN L >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Relay >> Locations

Wiper Relay: Locations

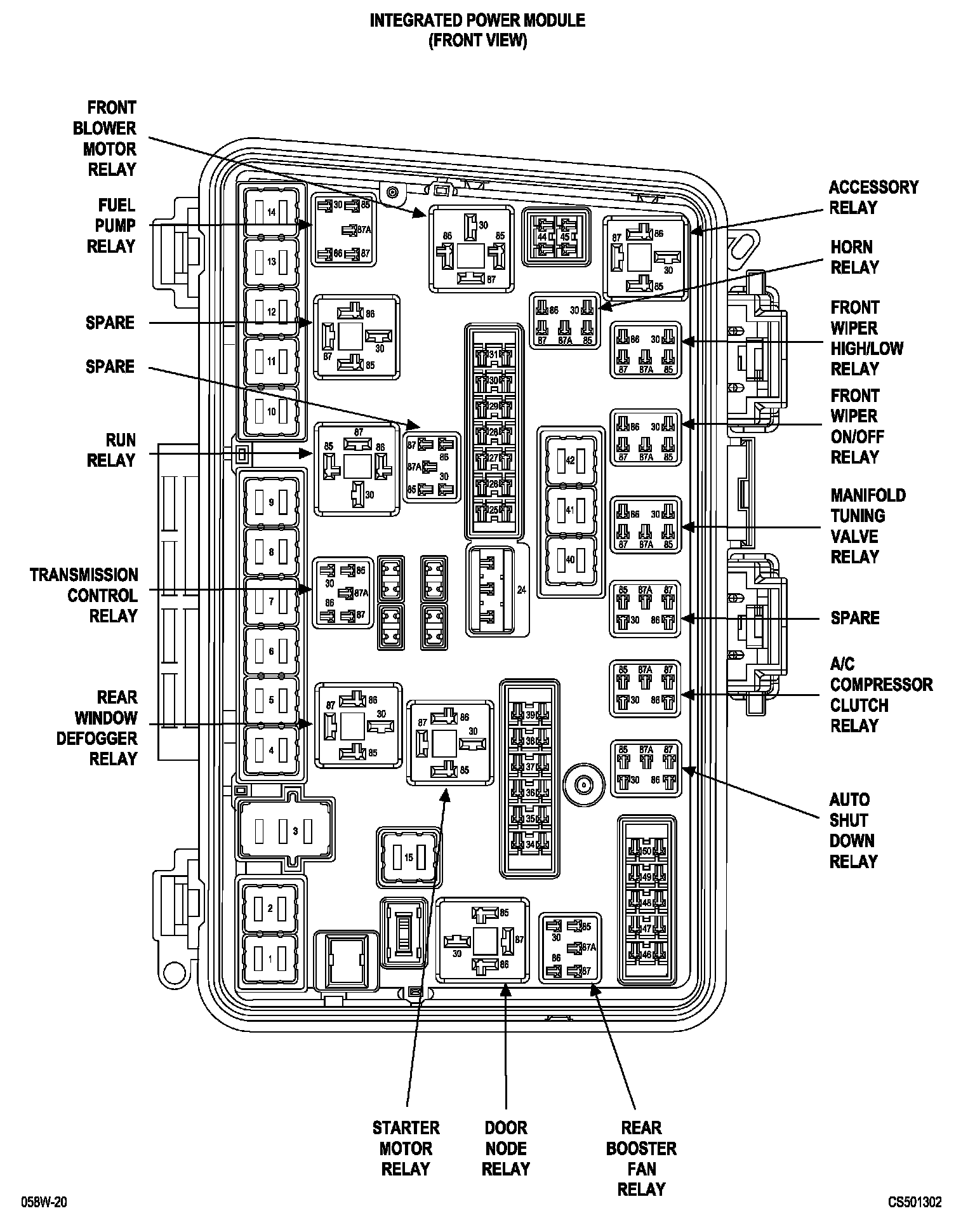

Integrated Power Module (Front View):
