Connector Views
>>
Power Seat Motor
Power Seat Motor

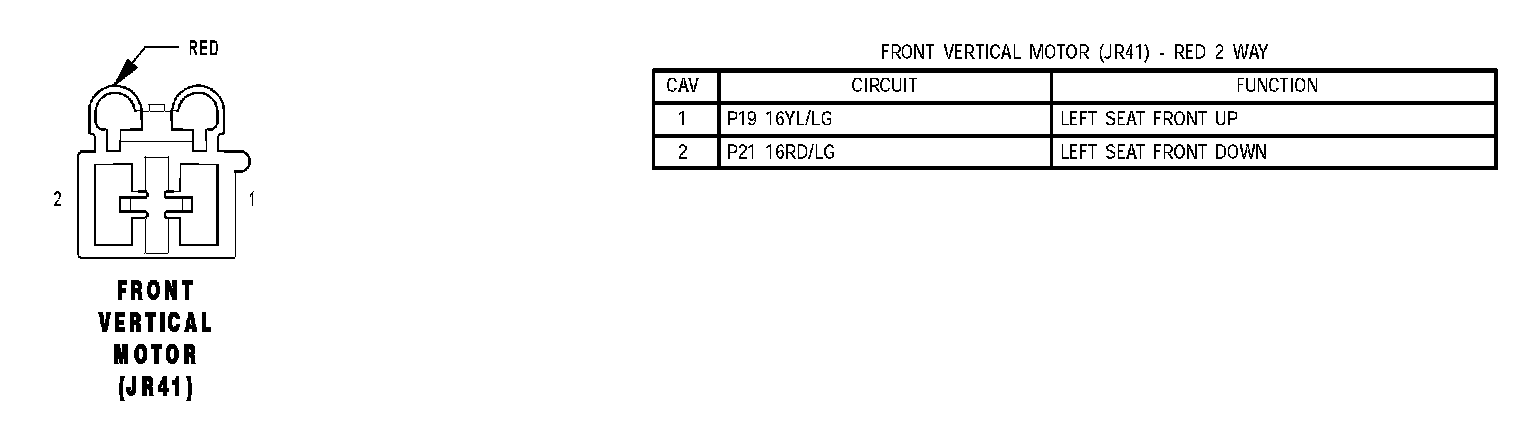

Front Vertical Motor (JR41):

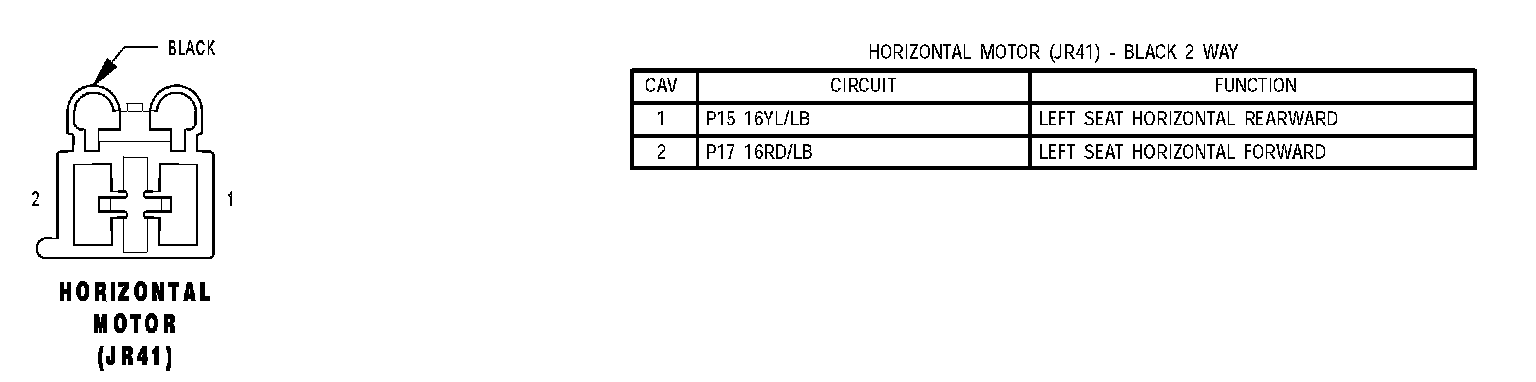

Horizontal Motor (JR41):
Rear Vertical Motor (JR41):

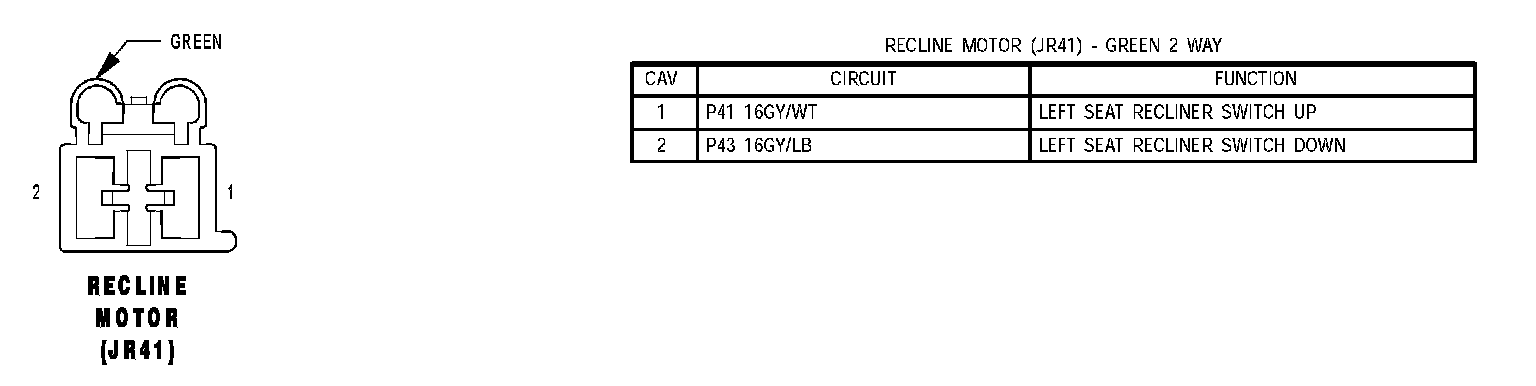

Recline Motor (JR41):
