Service Procedure

1. Open the rear doors and partially remove the door weather strips.

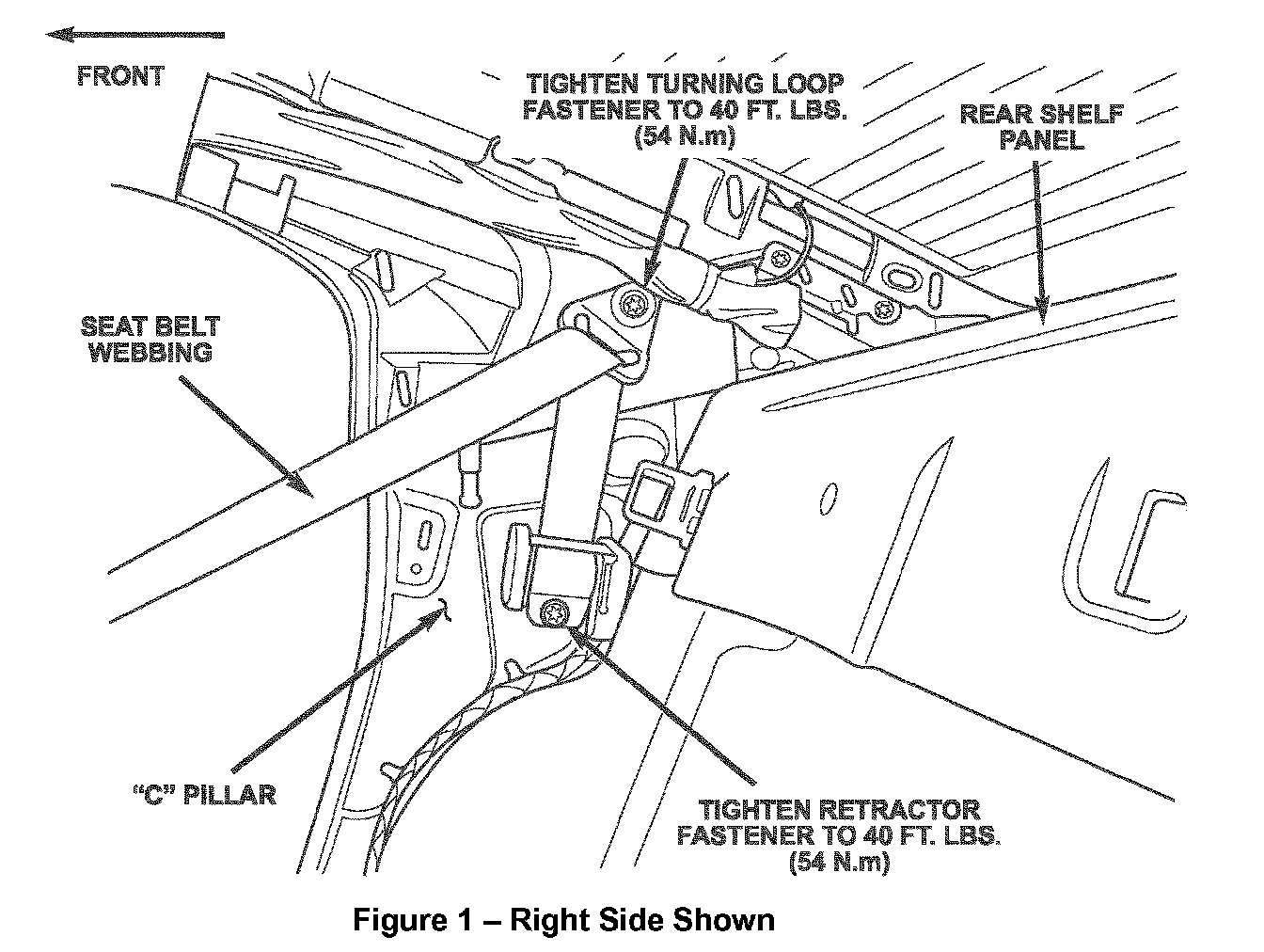

2. Detach the right and left side upper C-Pillar trim panel to expose the upper seat belt turning loops and fasteners.

3. Fold the rear seat back down and remove the right and left side lower C-Pillar trim panel to expose the seat belt retractors and fasteners.

4. Using a torque wrench, tighten the right and left side turning loop and the seat belt retractor mounting bolts to 40 ft. lbs. (54 N.m).

5. Reinstall the upper and lower C-Pillar trim panels and check both seat belts for proper operation.
