C301
Component ID: 43
Component : C301

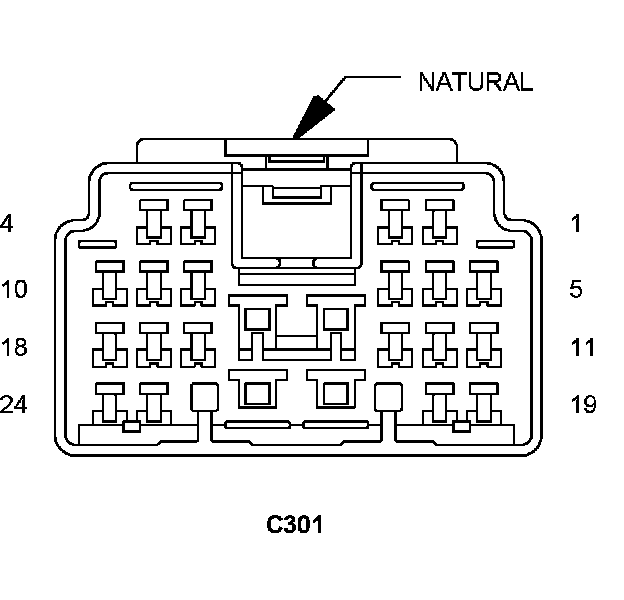

Connector:
Name : C301
Color : NATURAL
# of pins : 24
Gender : FEMALE
Pin Description Circuit
1 - -
2 FUSED REAR WINDOW DEFOGGER RELAY OUTPUT C16 20DB/GY
3 FUSED B(+) A913 20RD/GY
4 MASTER WINDOW SWITCH PASSENGER (DOWN) Q26 14OR/GY
5 PASSENGER DOOR AJAR SWITCH SENSE G74 20VT/WT
6 PASSENGER DOOR LOCK SWITCH RETURN P37 20LG/TN
7 PASSENGER DOOR LOCK SWITCH MUX G160 20VT/LG
8 COURTESY LAMPS DRIVER M24 20YL/WT
9 CAN B BUS (+) D55 20WT/OR
10 CAN B BUS (-) D54 20WT
11 RIGHT FRONT DOOR SPEAKER (+) X202 18DG/VT
11 AMPLIFIED RIGHT FRONT DOOR SPEAKER (+) X202 18DG/VT
11 LEFT FRONT DOOR SPEAKER (+) X201 18GY/VT
11 AMPLIFIED LEFT FRONT DOOR SPEAKER (+) X201 18GY/VT
12 RIGHT FRONT DOOR SPEAKER (-) X292 18DG/YL
12 AMPLIFIED RIGHT FRONT DOOR SPEAKER (-) X292 18DG/YL
12 LEFT FRONT DOOR SPEAKER (-) X291 18GY/YL
12 AMPLIFIED LEFT FRONT DOOR SPEAKER (-) X291 18GY/YL
13 FUSED ACCESSORY DELAY RELAY OUTPUT F880 20PK/DG
14 GROUND Z911 14BK/WT
15 WINDOW LOCK OUT SWITCH OUTPUT Q15 14OR/LB
16 PASSENGER DOOR UNLOCK DRIVER P303 20TN
17 PASSENGER MIRROR VERTICAL DRIVER P72 20TN/GY
17 POWER FOLDING MIRROR RETURN P110 20LG/WT
18 PASSENGER MIRROR HORIZONTAL DRIVER P74 20TN/OR
18 POWER FOLDING MIRROR DRIVER P699 20LG/DG
19 - -
20 DOOR LOCK DRIVER P392 20LG/DB
21 MASTER WINDOW SWITCH PASSENGER (UP) Q16 14OR/TN
22 FUSED ACCESSORY DELAY RELAY OUTPUT F881 14PK
23 MIRROR COMMON DRIVER P76 22TN/LB
24 - -
Component Location - 63
Component Location - 53
Fig. 53:
Component Location - 52
Fig. 52:

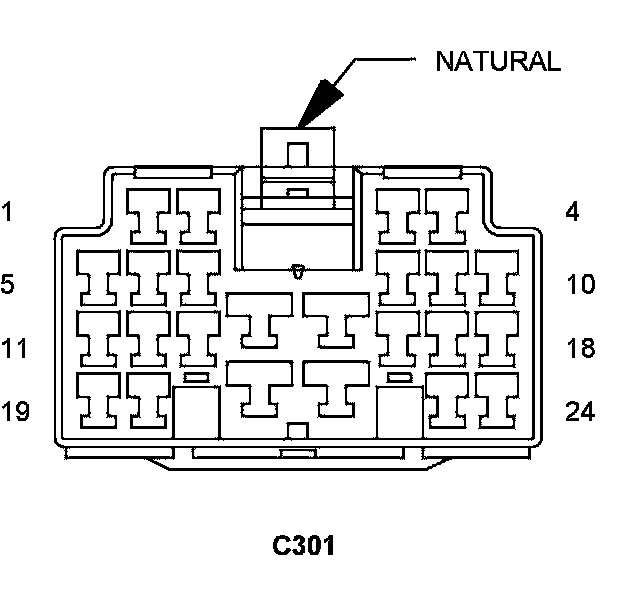

Connector:
Name : C301
Color : NATURAL
# of pins : 24
Gender : MALE
Pin Description Circuit
1 - -
2 FUSED REAR WINDOW DEFOGGER RELAY OUTPUT C16 20DB/GY
3 FUSED B(+) A913 22RD
4 MASTER WINDOW SWITCH PASSENGER (DOWN) Q26 14OR/GY
5 PASSENGER DOOR AJAR SWITCH SENSE G74 22VT/WT
5 PASSENGER DOOR AJAR SWITCH SENSE G74 20VT/WT
6 PASSENGER DOOR LOCK SWITCH RETURN P37 22LG/TN
7 PASSENGER DOOR LOCK SWITCH MUX G160 22VT/LG
8 COURTESY LAMPS DRIVER M24 20YL/WT
9 CAN B BUS (+) D55 22WT/OR
10 CAN B BUS (-) D54 22WT
11 RIGHT FRONT DOOR SPEAKER (+) X202 18DG/VT
11 AMPLIFIED RIGHT FRONT DOOR SPEAKER (+) X202 18DG/VT
11 LEFT FRONT DOOR SPEAKER (+) X201 18GY/VT
11 AMPLIFIED LEFT FRONT DOOR SPEAKER (+) X201 18GY/VT
12 RIGHT FRONT DOOR SPEAKER (-) X292 18DG/YL
12 AMPLIFIED RIGHT FRONT DOOR SPEAKER (-) X292 18DG/YL
12 LEFT FRONT DOOR SPEAKER (-) X291 18GY/YL
12 AMPLIFIED LEFT FRONT DOOR SPEAKER (-) X291 18GY/YL
13 FUSED ACCESSORY DELAY RELAY OUTPUT F880 20PK/DG
14 GROUND Z911 14BK/WT
15 WINDOW LOCK OUT SWITCH OUTPUT Q15 14OR/LB
16 PASSENGER DOOR UNLOCK DRIVER P303 22TN
17 PASSENGER MIRROR VERTICAL DRIVER P72 22TN/GY
17 POWER FOLDING MIRROR RETURN P110 20LG/WT
18 PASSENGER MIRROR HORIZONTAL DRIVER P74 22TN/OR
18 POWER FOLDING MIRROR DRIVER P699 20LG/DG
19 - -
20 DOOR LOCK DRIVER P392 22LG/DB
21 MASTER WINDOW SWITCH PASSENGER (UP) Q16 14OR/TN
22 FUSED ACCESSORY DELAY RELAY OUTPUT F881 14PK
23 MIRROR COMMON DRIVER P76 20TN/LB
24 - -
Component Location - 63
Component Location - 53
Fig. 53:
Component Location - 52
Fig. 52:
