C303

Component ID: 45
Component : C303

Connector:
Name : C303
Color : NATURAL
# of pins : 10
Gender : FEMALE




Pin Description Circuit
1 WINDOW LOCK OUT SWITCH OUTPUT Q15 14OR/LB
2 - -
3 MASTER WINDOW SWITCH RIGHT REAR (UP) Q412 14OR/LB
4 - -
5 RIGHT REAR DOOR AJAR SWITCH SENSE G76 20VT/YL
6 GROUND Z911 20BK/WT
7 PASSENGER DOOR UNLOCK DRIVER P303 20TN
8 DOOR LOCK DRIVER P392 20LG/DB
9 - -
10 MASTER WINDOW SWITCH RIGHT REAR (DOWN) Q612 14OR/DB

Component Location - 64




Component Location - 61

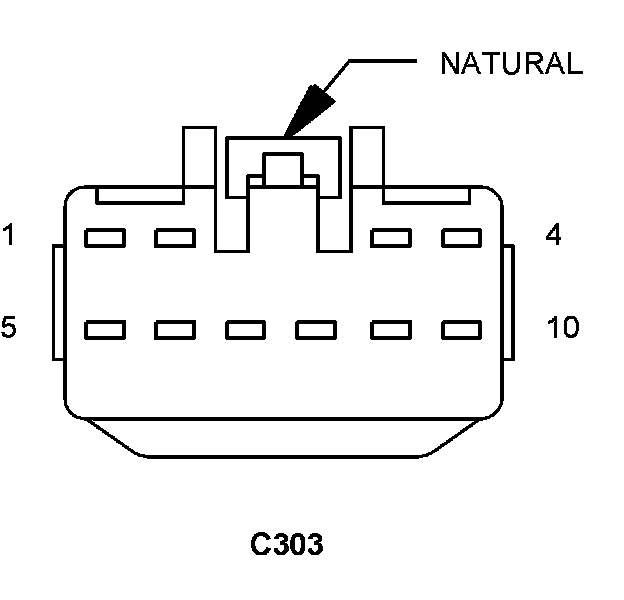

Fig. 61:

Connector:
Name : C303
Color : NATURAL
# of pins : 10
Gender : MALE




Pin Description Circuit
1 WINDOW LOCK OUT SWITCH OUTPUT Q15 14OR/LB
2 - -
3 MASTER WINDOW SWITCH RIGHT REAR (UP) Q412 14OR/LB
4 - -
5 RIGHT REAR DOOR AJAR SWITCH SENSE G76 22VT/YL
6 GROUND Z911 22BK/WT
7 PASSENGER DOOR UNLOCK DRIVER P303 22TN
8 DOOR LOCK DRIVER P392 22LG/DB
9 - -
10 MASTER WINDOW SWITCH RIGHT REAR (DOWN) Q612 14OR/DB

Component Location - 64




Component Location - 61

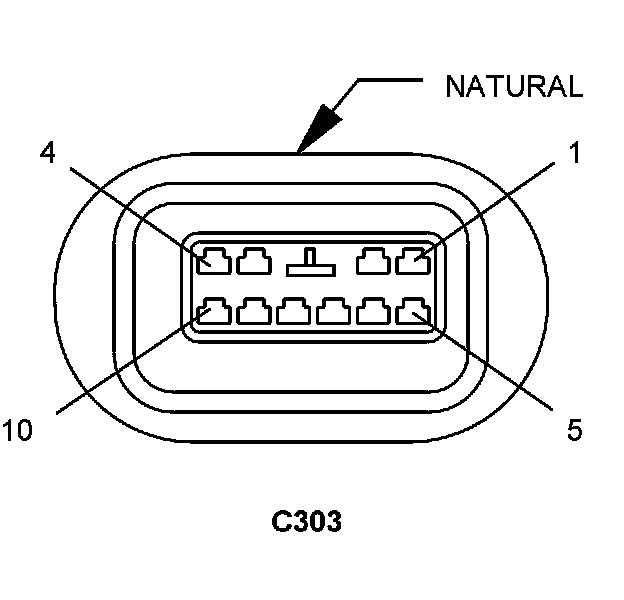

Fig. 61:
