Flasher-Headlamp

Component ID: 87
Component : FLASHER-HEADLAMP

Connector:

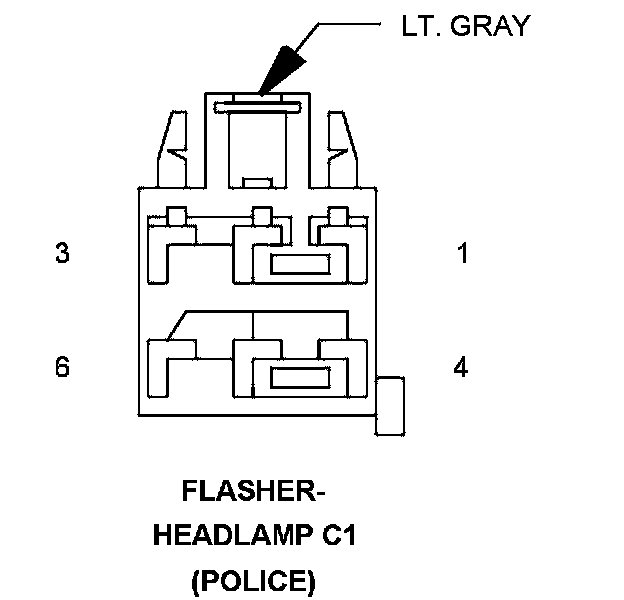

Name : FLASHER-HEADLAMP C1
Color : LT. GRAY
# of pins : 6
Qualifier : (POLICE)

Pin Description Circuit
1 LEFT HIGH BEAM DRIVER L33 18WT/LG
2 RIGHT HIGH BEAM DRIVER L34 18WT/GY
3 LEFT HIGH BEAM DRIVER L33 18WT/LG
4 RIGHT HIGH BEAM DRIVER L34 18WT/GY
5 FUSED ACCESSORY DELAY RELAY OUTPUT F880 20PK/DG
6 GROUND Z902 20BK/LB

Connector:

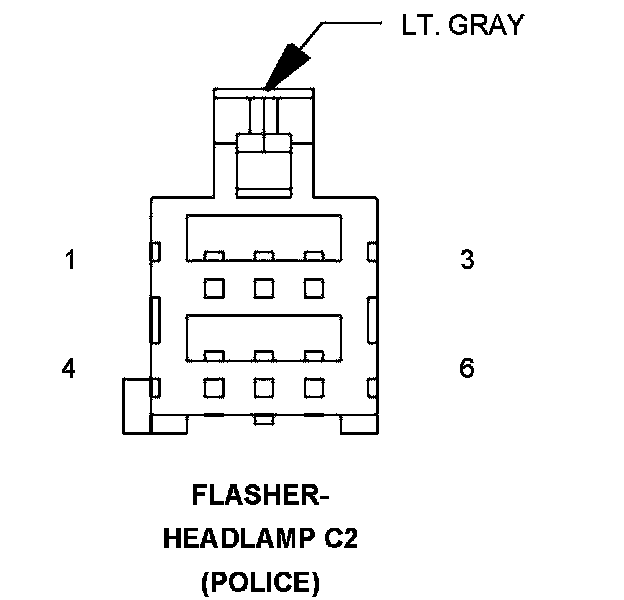

Name : FLASHER-HEADLAMP C2
Color : LT. GRAY
# of pins : 6
Qualifier : (POLICE)
