Motor-Seat Adjuster-Passenger Recliner

Component ID: 276

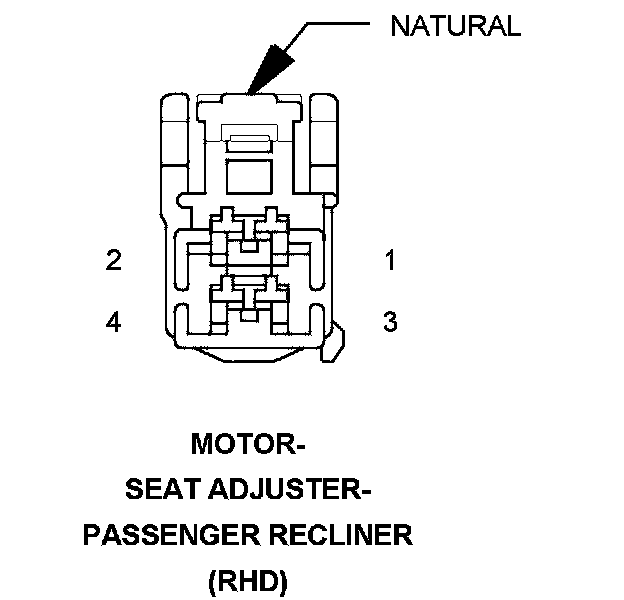

Component : MOTOR-SEAT ADJUSTER-PASSENGER RECLINER

Connector:
Name : MOTOR-SEAT ADJUSTER-PASSENGER RECLINER
Color : NATURAL
# of pins : 4
Qualifier : (RHD)




Pin Description Circuit
1 PASSENGER SEAT RECLINER UP DRIVER P44 18LG/VT
2 PASSENGER SEAT RECLINER DOWN DRIVER P42 18LG/GY
3 - -
4 - -
