Heater-Seat Back-Left Rear

Component ID: 158

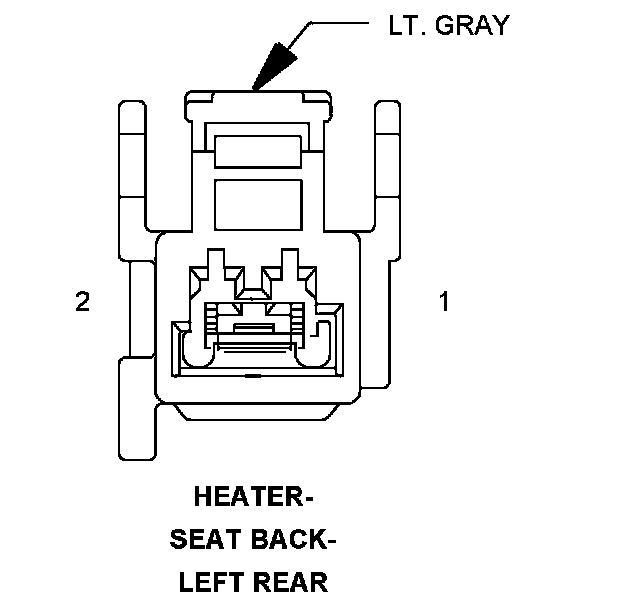

Component : HEATER-SEAT BACK-LEFT REAR

Connector:
Name : HEATER-SEAT BACK-LEFT REAR
Color : LT. GRAY
# of pins : 2




Pin Description Circuit
1 LEFT REAR SEAT HEATER B(+) DRIVER P177 20RD
2 GROUND Z911 20BK

Component Location - 57
