Heater-Seat Cushion-Right

Component ID: 163

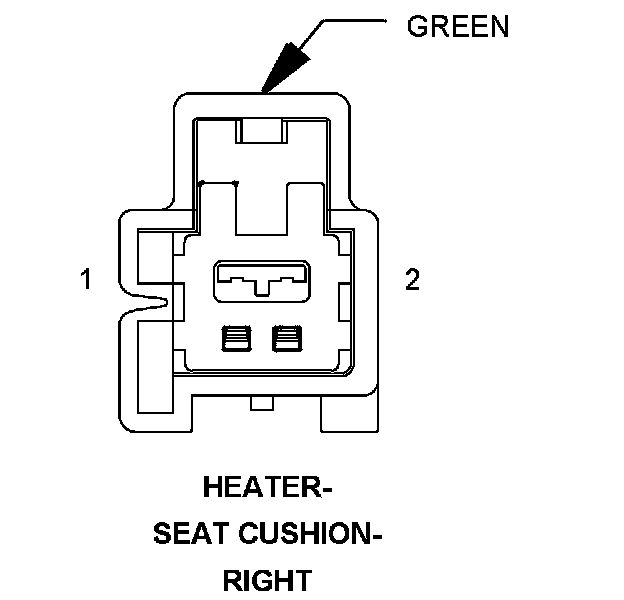

Component : HEATER-SEAT CUSHION-RIGHT

Connector:
Name : HEATER-SEAT CUSHION-RIGHT
Color : GREEN
# of pins : 2




Pin Description Circuit
1 RIGHT SEAT HEATER B(+) DRIVER P188 20LG/VT
2 GROUND Z911 20BK/WT
2 GROUND Z912 20BK/OR

Component Location - 56
