Starter Motor

Component ID: 563
Component : STARTER

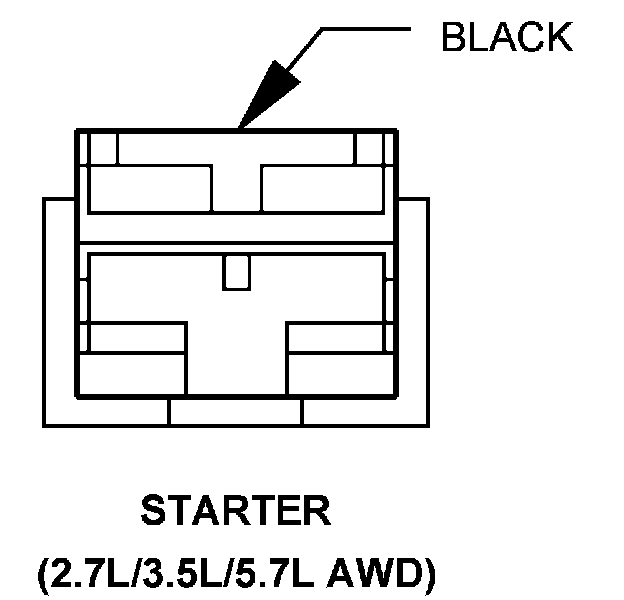

Connector:
Name : STARTER
Color : BLACK
# of pins : 1
Qualifier : (2.7L/3.5L/5.7L AWD)




Pin Description Circuit
1 STARTER RELAY OUTPUT T750 16LG

Component Location - 23




Component Location - 27




Component Location - 18




Component Location - 25




Component Location - 28




Component Location - 21

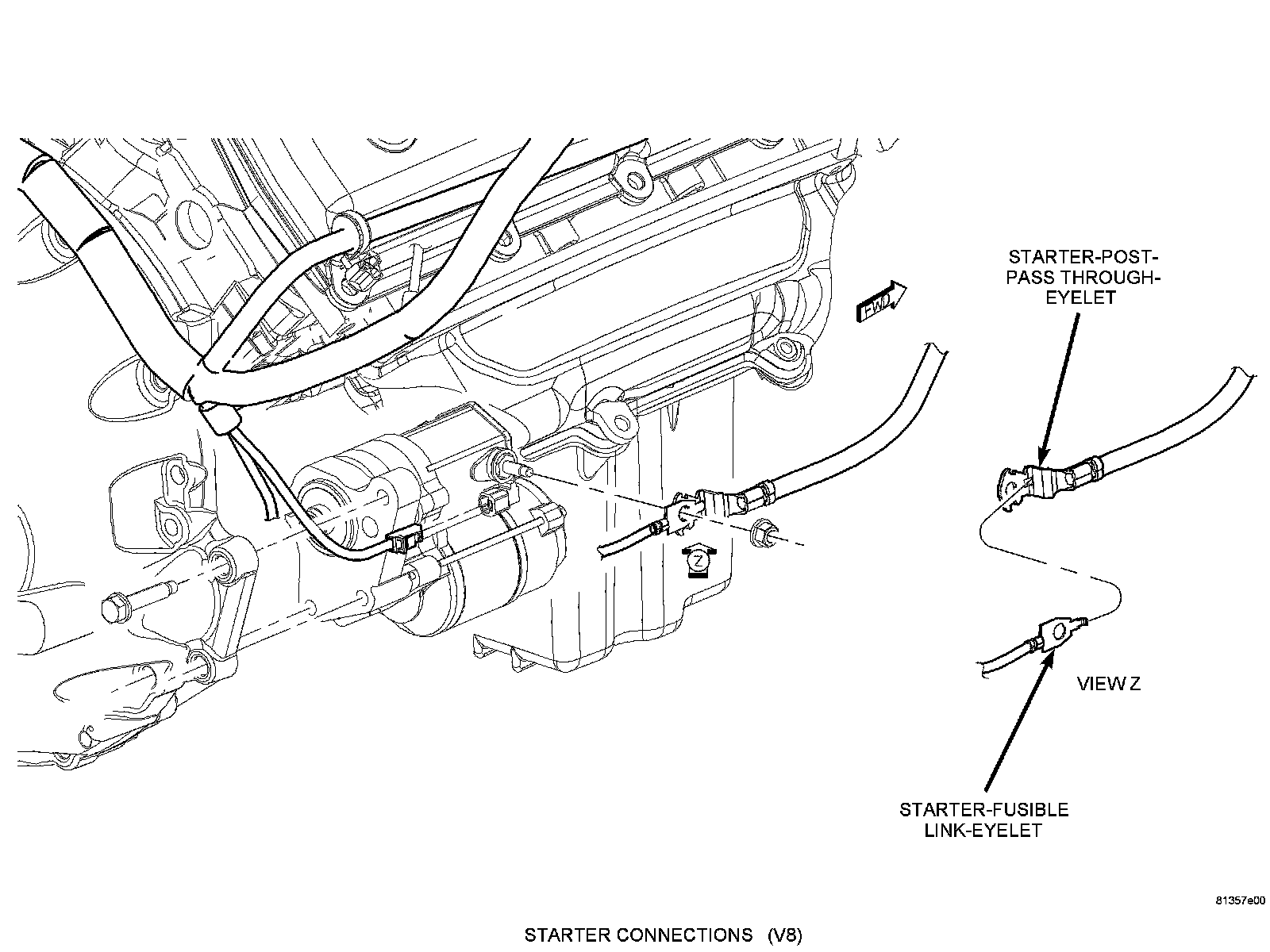

Fig. 21:

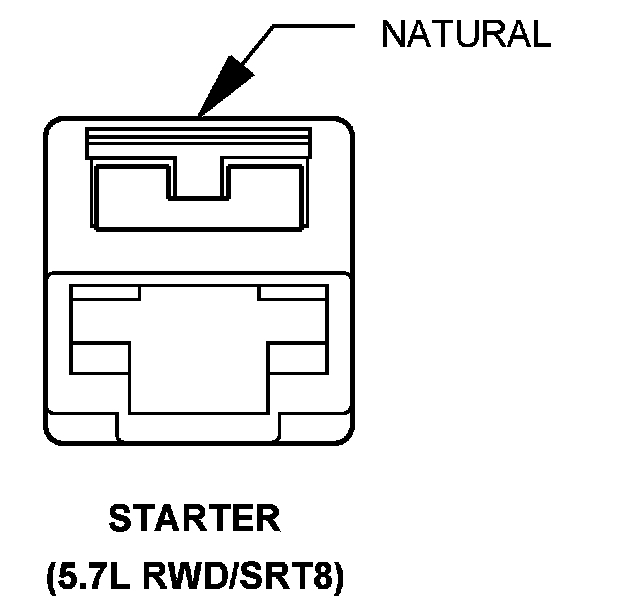

Connector:
Name : STARTER
Color : NATURAL
# of pins : 1
Qualifier : (5.7L RWD/SRT8)




Pin Description Circuit
1 STARTER RELAY OUTPUT T750 16LG
Pin Description Circuit
1 STARTER RELAY OUTPUT T750 16YL/GY

Component Location - 23




Component Location - 27




Component Location - 18




Component Location - 25




Component Location - 28




Component Location - 21

Fig. 21:

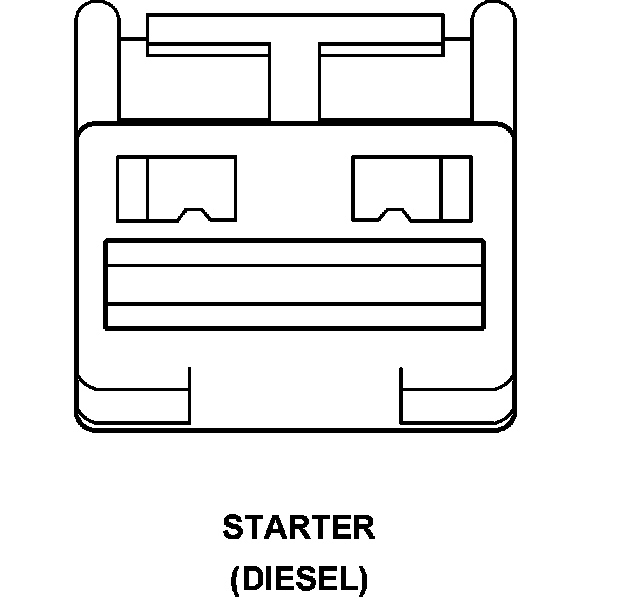

Connector:
Name : STARTER
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 STARTER RELAY OUTPUT T750 14VT

Component Location - 23




Component Location - 27




Component Location - 18




Component Location - 25




Component Location - 28




Component Location - 21

Fig. 21:

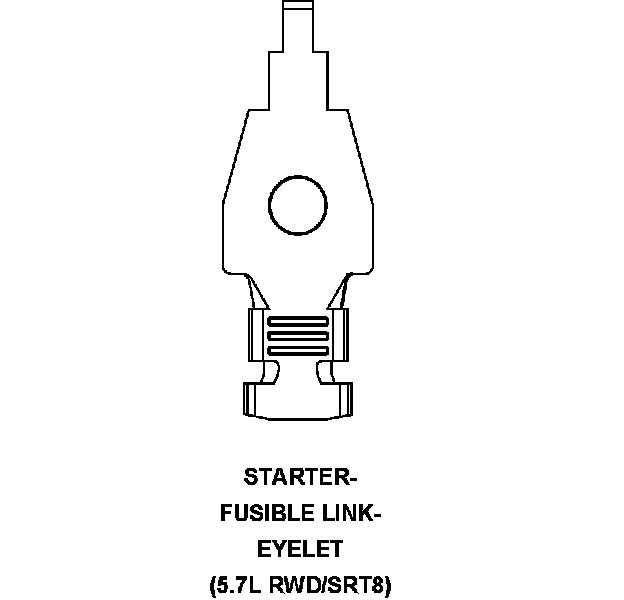

Connector:
Name : STARTER-FUSIBLE LINK-EYELET
Color :
# of pins : 1
Qualifier : (5.7L RWD/SRT8)




Pin Description Circuit
1 B(+) A802 8LB
Pin Description Circuit
1 B(+) A802 4RD

Component Location - 23




Component Location - 27




Component Location - 18




Component Location - 25




Component Location - 28




Component Location - 21

Fig. 21:

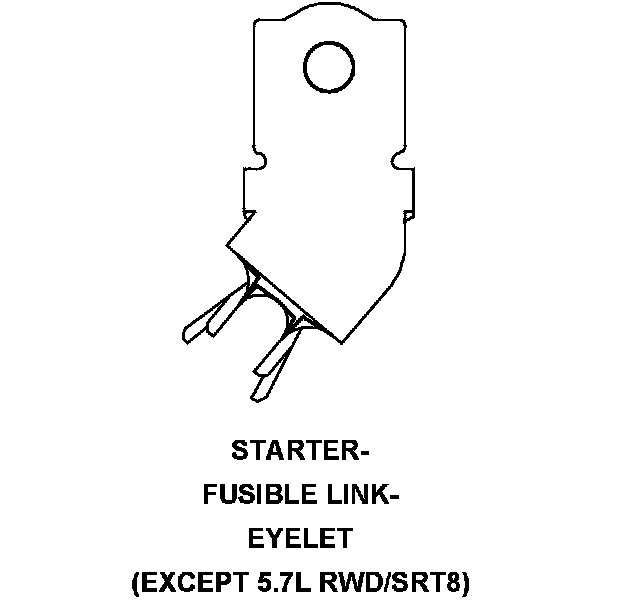

Connector:
Name : STARTER-FUSIBLE LINK-EYELET
Color :
# of pins : 1
Qualifier : (EXCEPT 5.7L RWD/SRT8)




Pin Description Circuit
1 B(+) A802 8LB

Component Location - 23




Component Location - 27




Component Location - 18




Component Location - 25




Component Location - 28




Component Location - 21

Fig. 21:

Connector:
Name : STARTER-POST-PASS THROUGH-EYELET
Color :
# of pins : 1
Qualifier : (5.7L RWD/SRT8)




Pin Description Circuit
1 B(+) A11 4RD

Component Location - 23




Component Location - 27




Component Location - 18




Component Location - 25




Component Location - 28




Component Location - 21

Fig. 21:

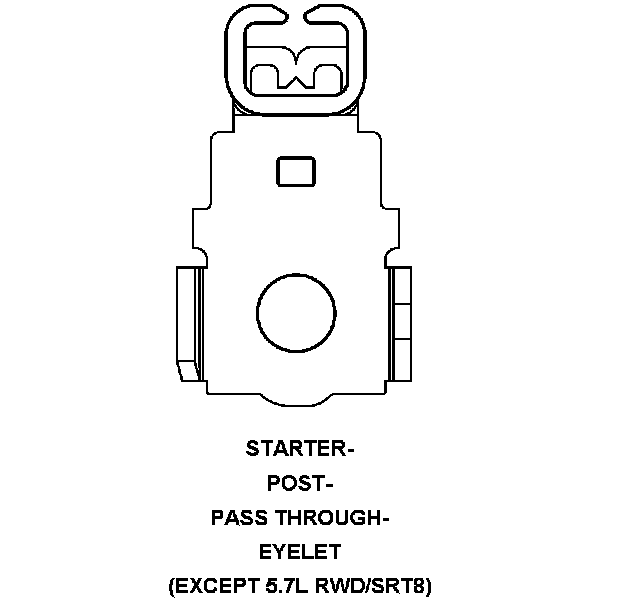

Connector:
Name : STARTER-POST-PASS THROUGH-EYELET
Color :
# of pins : 1
Qualifier : (EXCEPT 5.7L RWD/SRT8)




Pin Description Circuit
1 B(+) A11 4BR/RD
Pin Description Circuit
1 B(+) A11 4RD

Component Location - 23




Component Location - 27




Component Location - 18




Component Location - 25




Component Location - 28




Component Location - 21

Fig. 21:
