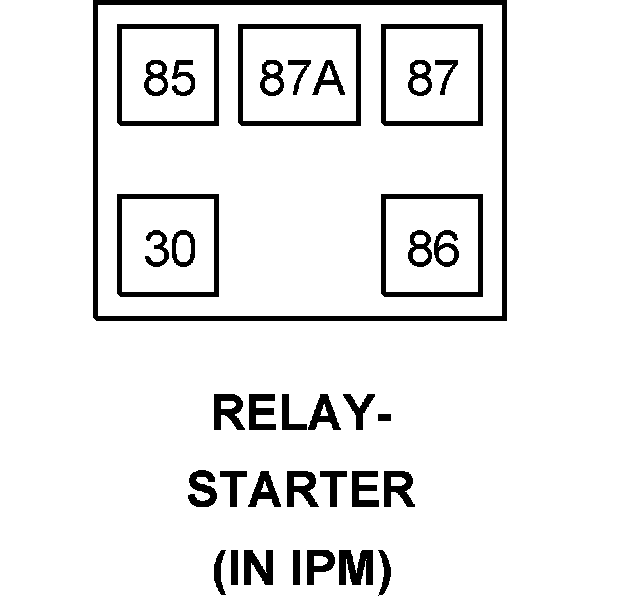

Starter Relay

Component ID: 319
Component : RELAY-STARTER

Connector:
Name : RELAY-STARTER
Color :
# of pins : 0




30 FUSED B(+) INTERNAL
85 FUSED IGNITION SWITCH OUTPUT (START) T751 20YL
86 STARTER RELAY CONTROL T752 20DG/OR
87 STARTER RELAY OUTPUT T750 16YL/GY
87A - -
