Throttle Body

Component ID: 597

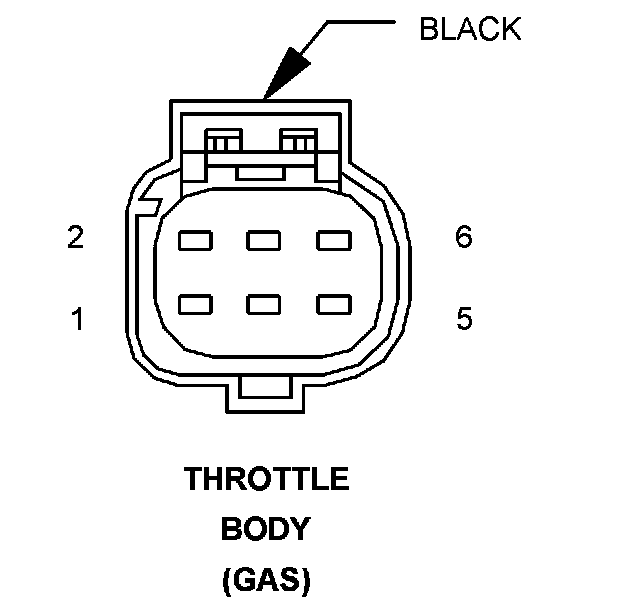

Component : THROTTLE BODY

Connector:
Name : THROTTLE BODY
Color : BLACK
# of pins : 6
Qualifier : (GAS)




Pin Description Circuit
1 TP SIGNAL 1 K22 18BR/OR
2 5 VOLT SUPPLY F855 18PK/YL
3 ETC MOTOR (+) K124 18DB/GY
4 TP SIGNAL 2 K122 18BR/DG
5 ETC MOTOR (-) K126 18DB/LG
6 TP SENSOR GROUND K922 18BR/DB

Component Location - 18




Component Location - 26




Component Location - 28




Component Location - 21

Fig. 21:
