Rear

REAR SUSPENSION

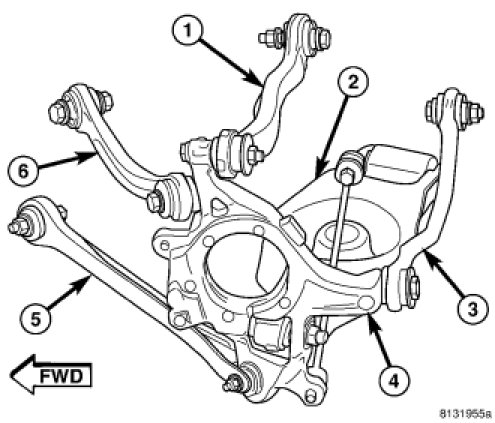

This vehicle utilizes a five-link rear suspension including the following major components:

- Camber Link (1)
- Compression Link (5)
- Spring Link (2)
- Tension Link (6)
- Toe Link (3)
- Coil Spring
- Crossmember
- Hub And Bearing
- Knuckle (4)
- Shock Absorber
- Stabilizer Bar

The knuckle, camber link, compression link and tension link are aluminum castings. Extra care needs to be taken when servicing these components.


Service Procedures for the crossmember can be found in Frame And Bumpers.
