Universal Transmitter - Installation

INSTALLATION





NOTE: In addition to the Universal Transmitter operation the Electronic Overhead Module is responsible for some of the compass functions. Anytime the Electronic Overhead Module is replaced the compass variance value must be set.

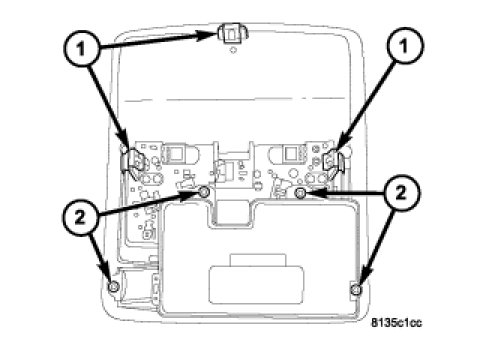

1. Position the universal transmitter onto the overhead console assembly and install the retaining screws (2).

2. Install the overhead console assembly.

3. Connect the battery negative cable.

4. Program the universal transmitter codes.
