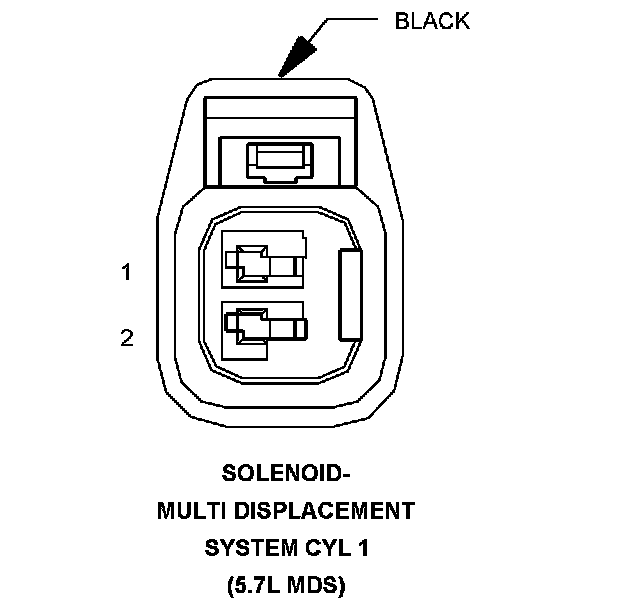

Solenoid-Multi Displacement System Cyl 1

Component ID: 550
Component : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 1

Connector:
Name : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 1
Color : BLACK
# of pins : 2
Qualifier : (5.7L MDS)




Pin Description Circuit
1 MDS 1 CONTROL K451 20BR/WT
2 GROUND Z904 20BK/BR
