Solenoid-Multi Displacement System Cyl 4

Component ID: 551

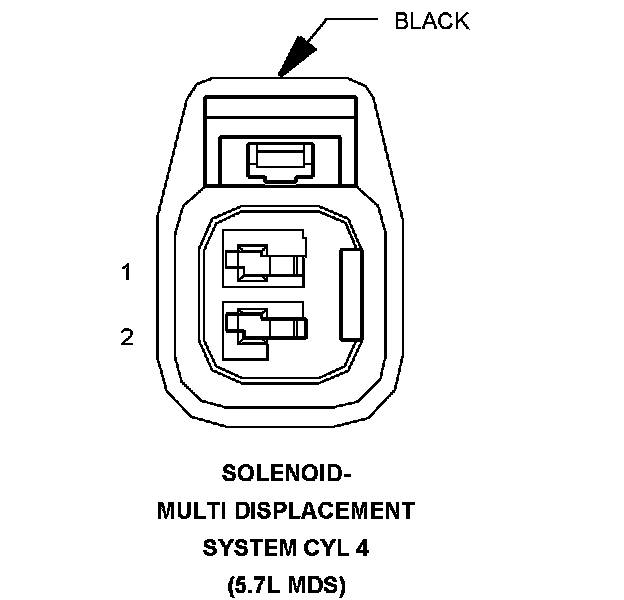

Component : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 4

Connector:
Name : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 4
Color : BLACK
# of pins : 2
Qualifier : (5.7L MDS)




Pin Description Circuit
1 MDS 4 CONTROL K452 20BR/LB
2 GROUND Z904 20BK/BR
