Solenoid-Multi Displacement System Cyl 7

Component ID: 553

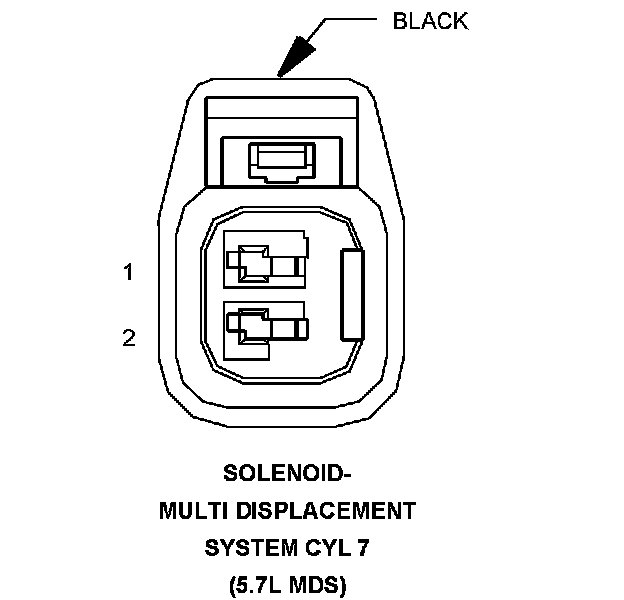

Component : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 7

Connector:
Name : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 7
Color : BLACK
# of pins : 2
Qualifier : (5.7L MDS)




Pin Description Circuit
1 MDS 7 CONTROL K454 20BR/OR
2 GROUND Z904 20BK/BR
