Cylinder Block Assembly: Specifications

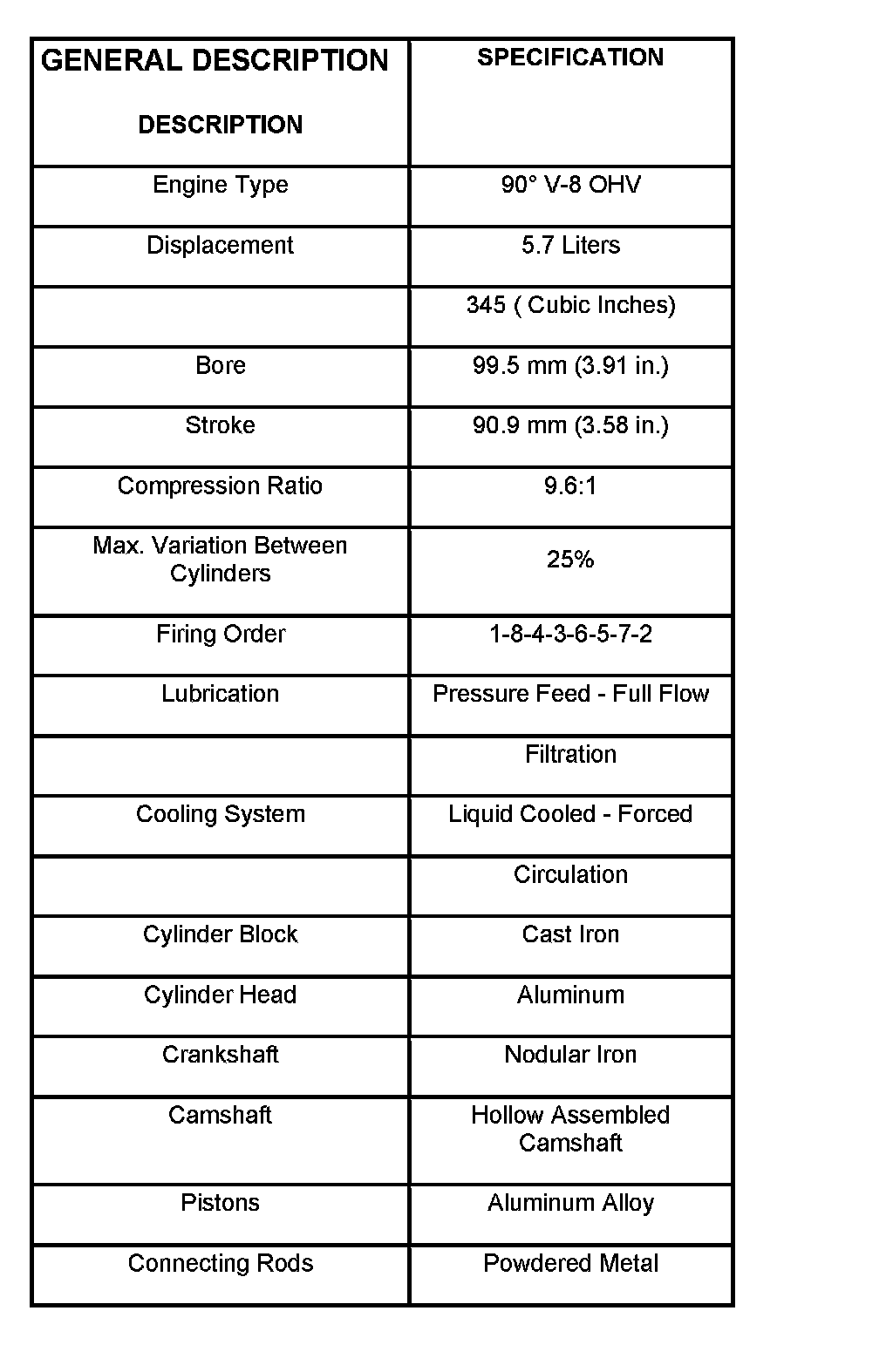

General Description:

General Description

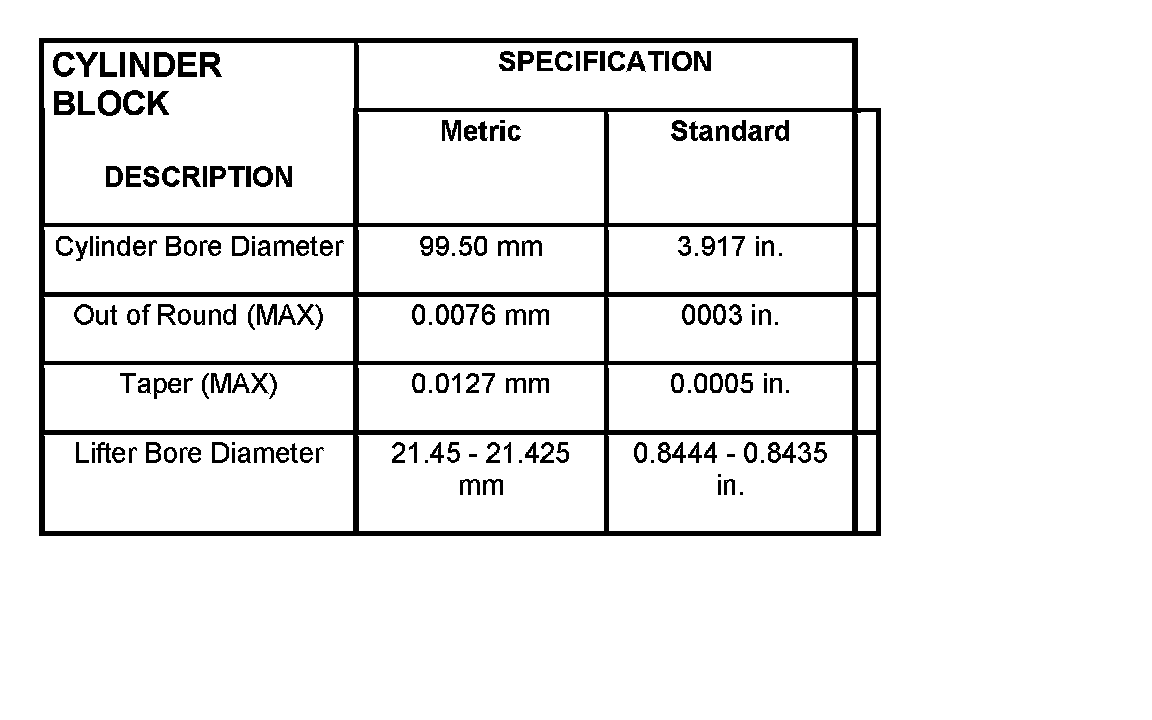

Cylinder Block:

Cylinder Block

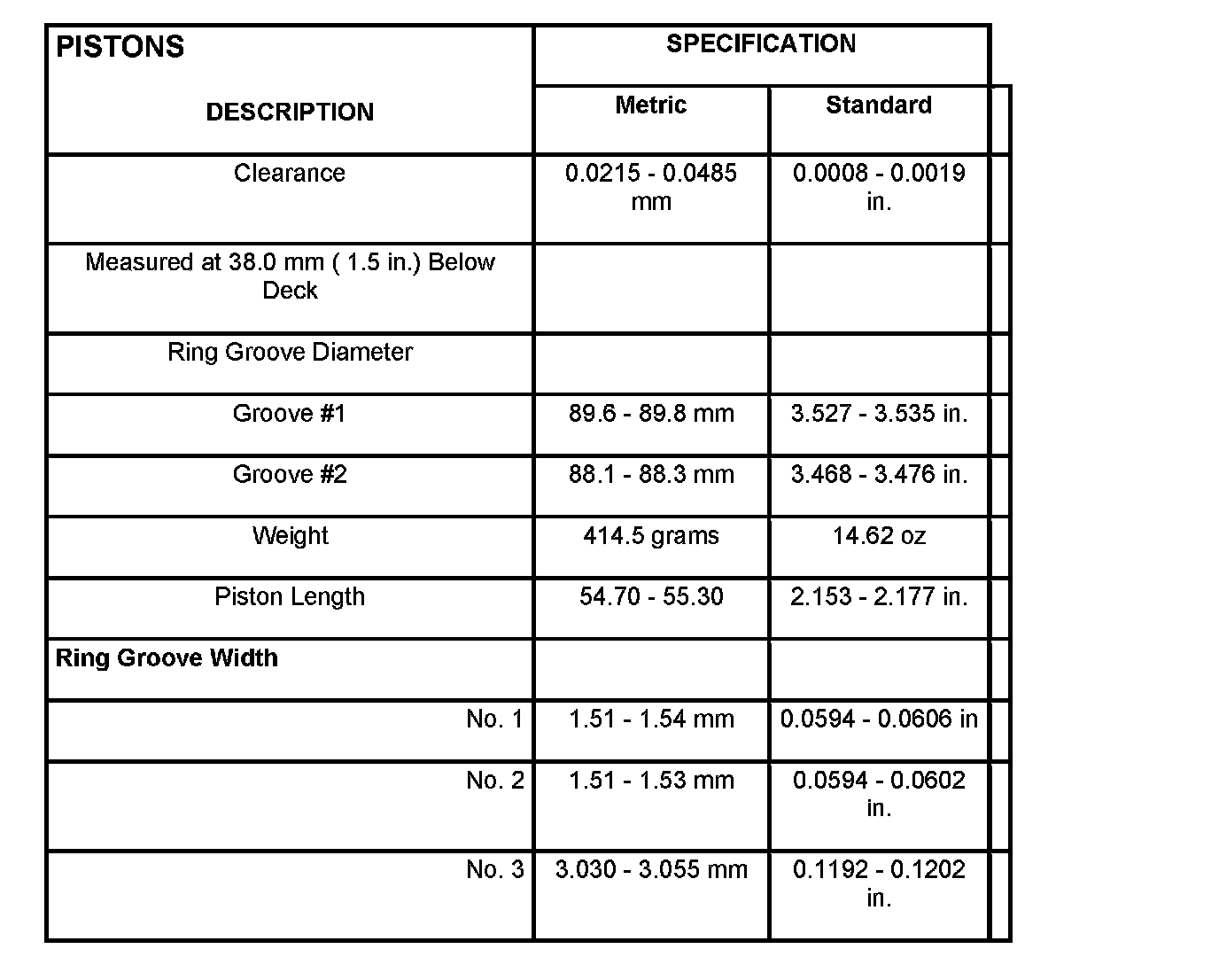

Pistons:

Pistons

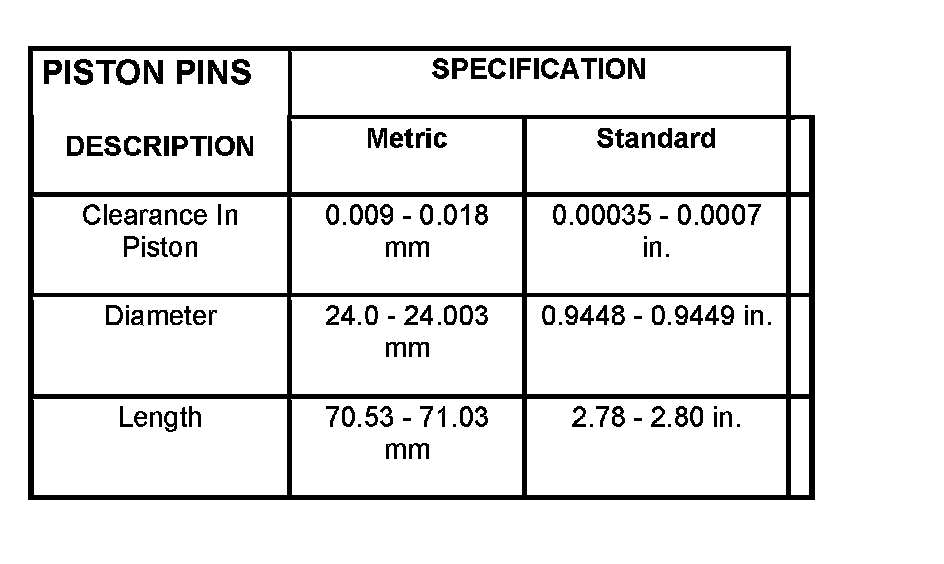

Piston Pins:

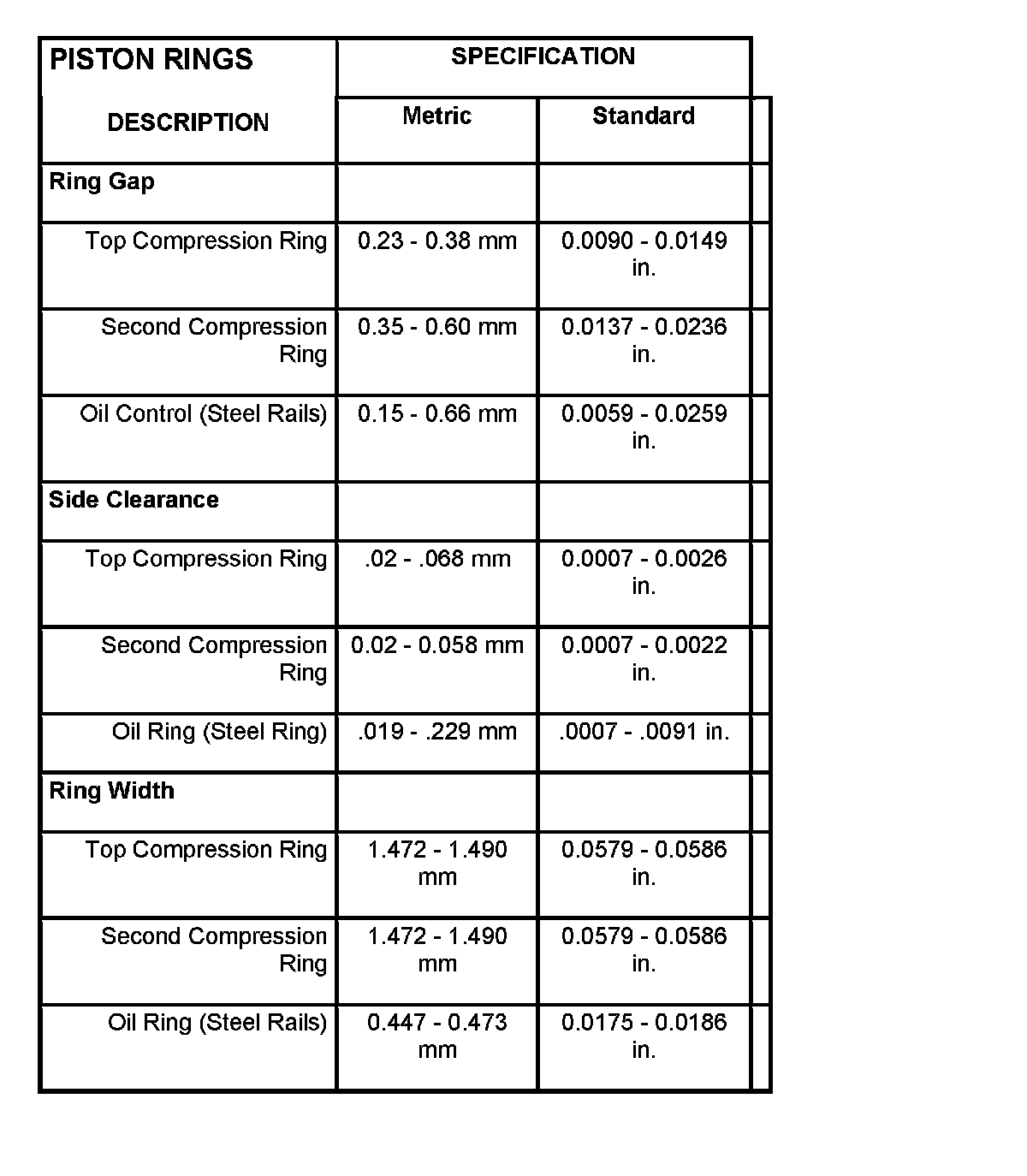

Piston Rings:

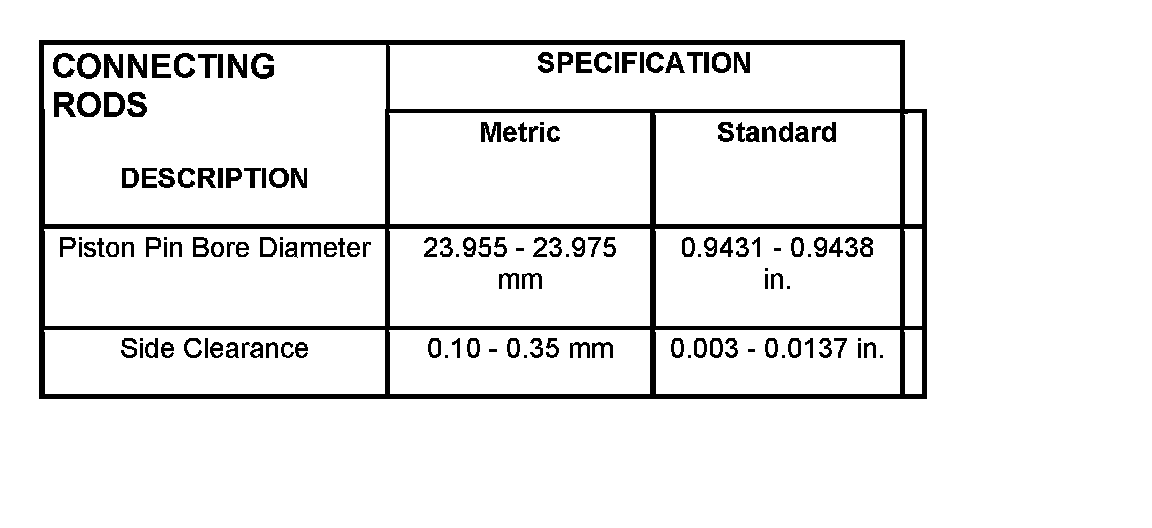

Connecting Rods:

Connecting Rods

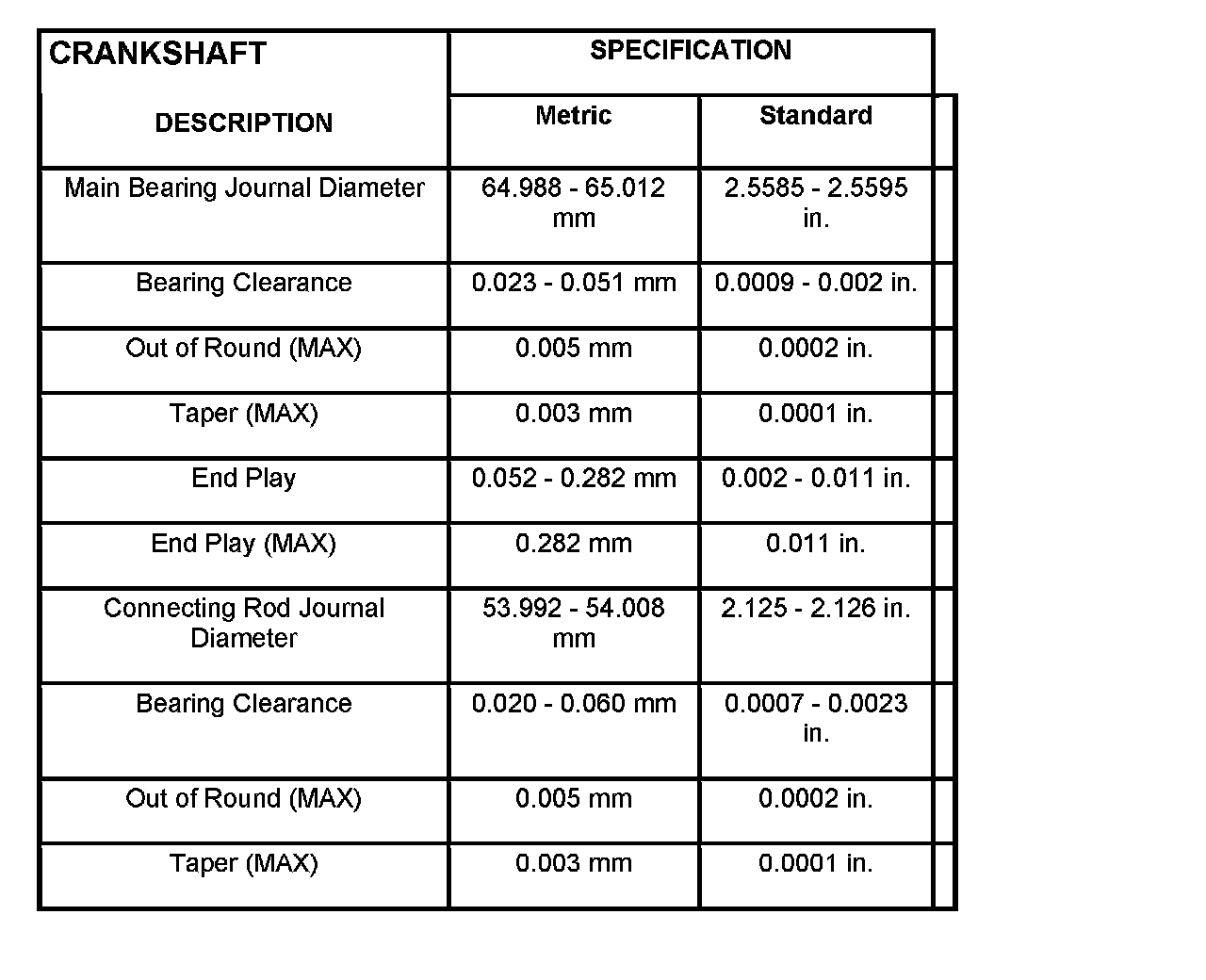

Crankshaft:

Crankshaft

Vibration Damper-Bolt 176 Nm (129 Ft. Lbs.)

Connecting Rod Cap-Bolts 21 Nm (15 Ft. Lbs.) plus 90� Turn

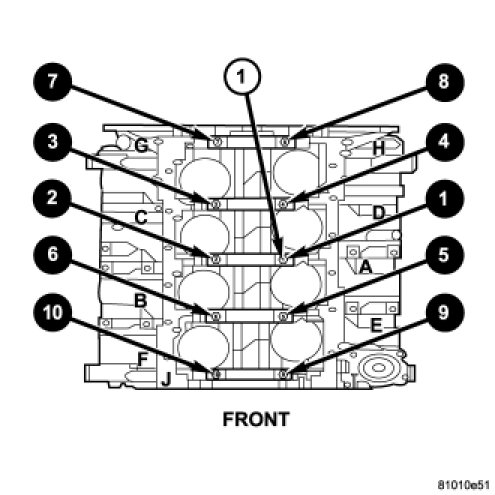

Main Bearing Cap-Bolts M-12 27 Nm (20 Ft. Lbs.) plus 90� Turn
Crossbolts M-8 28 Nm
