C121A

C121A-STEERING ANGLE SENSOR NOT INITIALIZED





For a complete wiring diagram Refer to Diagrams/Electrical. Electrical Diagrams.


- When Monitored:

With the ignition on.

- Set Condition:

When the Anti-Lock Brake Module is told by the Steering Angle Sensor that it is not initialized.








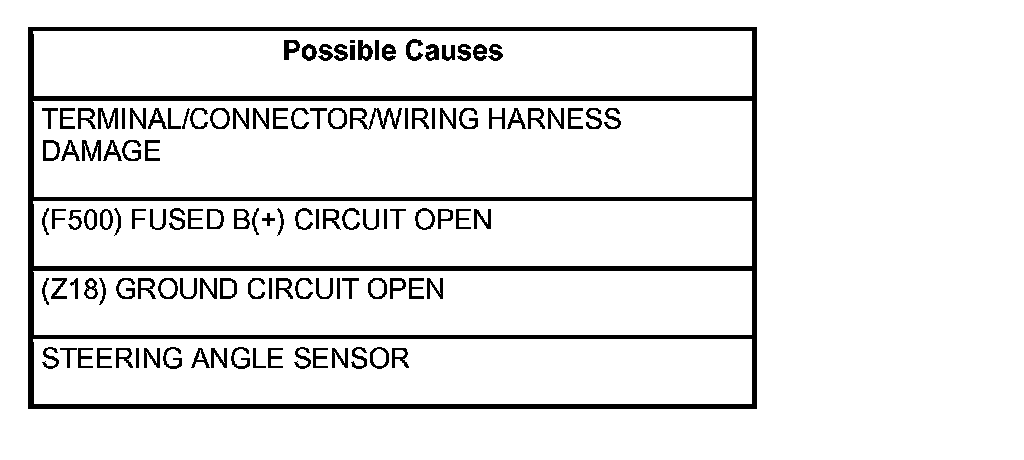

Diagnostic Test


1. CHECK FOR A DTC C121A-STEERING ANGLE SENSOR NOT INITIALIZED

NOTE: This DTC must be active for the results of this test to be valid. Repair all other Steering Angle Sensor codes before proceeding.

Turn the ignition on.

With the scan tool, read and record DTCs.

With the scan tool, read and record Freeze Frame information.

With the scan tool, erase DTCs.

Cycle the ignition switch from off to on.

With the scan tool, read and record DTCs.

Does the scan tool display: C121A-STEERING ANGLE SENSOR NOT INITIALIZED?

Yes

- Go To 2

No

- Perform the ABS INTERMITTENT CONDITION diagnostic procedure. ABS Intermittent Condition Test.
- ABS-INTERMITTENT CONDITION TEST. ABS Intermittent Condition Test



2. CHECK THE TERMINALS/CONNECTORS/WIRING HARNESS FOR DAMAGE

Check the Steering Angle Sensor installation.

Check all related wiring for bruised, chafed, pierced, or partially broken wires.

Check all related connectors for broken, bent, pushed out, or corroded terminals.

Were any problems found?

Yes

- Repair as necessary.
- Perform ABS VERIFICATION TEST. ABS Verification Test

No

- Go To 3



3. CHECK THE VOLTAGE ON THE (F500) FUSED B(+) CIRCUIT





Turn the ignition off.

Disconnect the Steering Control Module harness connector.

Turn the ignition on.

Measure the voltage of the (F500) Fused B(+) circuit.

Is the voltage above 10 volts?

Yes

- Go To 4

No

- Repair the (F500) Fused B(+) circuit for an open.
- Perform ABS VERIFICATION TEST. ABS Verification Test



4. CHECK THE RESISTANCE OF THE (Z18) GROUND CIRCUIT





Turn the ignition off.

Disconnect the Steering Angle Sensor harness connector.

Measure the resistance between the (Z18) Ground circuit and ground.

Is the resistance below 5.0 ohms?

Yes

- Replace the Steering Control Module.
- Perform ABS VERIFICATION TEST. ABS Verification Test

No

- Repair the (Z18) Ground circuit for an open.
- Perform ABS VERIFICATION TEST. ABS Verification Test
