Airbag-Driver Squib 1

Component ID: 5

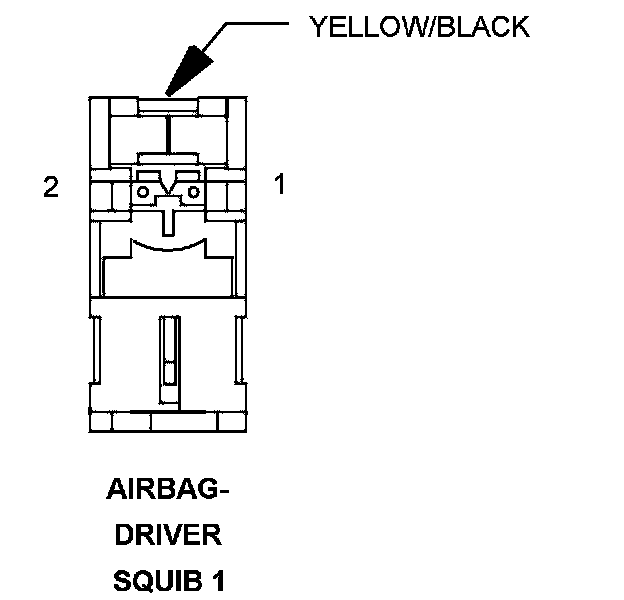

Component : AIRBAG-DRIVER SQUIB 1

Connector:
Name : AIRBAG-DRIVER SQUIB 1
Color : YELLOW/BLACK
# of pins : 2




Pin Description Circuit
1 DRIVER SQUIB 1 LINE 2 R43 20LG/BR
2 DRIVER SQUIB 1 LINE 1 R45 20LG/OR

Component Location - 22
