Airbag-Knee Blocker-Driver

Component ID: 7

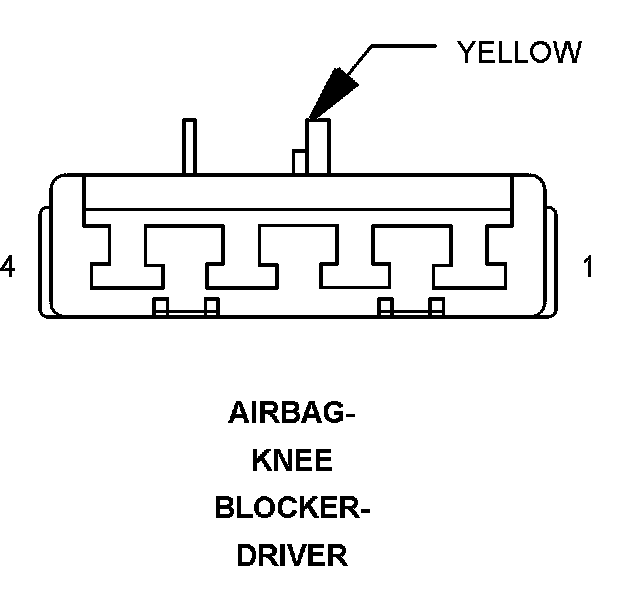

Component : AIRBAG-KNEE BLOCKER-DRIVER

Connector:
Name : AIRBAG-KNEE BLOCKER-DRIVER
Color : YELLOW
# of pins : 4




Pin Description Circuit
1 - -
2 - -
3 DRIVER KNEE BLOCKER SQUIB LINE 2 R9 18LB/YL
4 DRIVER KNEE BLOCKER SQUIB LINE 1 R11 18DB/LB

Component Location - 14




Component Location - 15




Component Location - 21
