Actuator-Blend Door-Driver

Component ID: 1

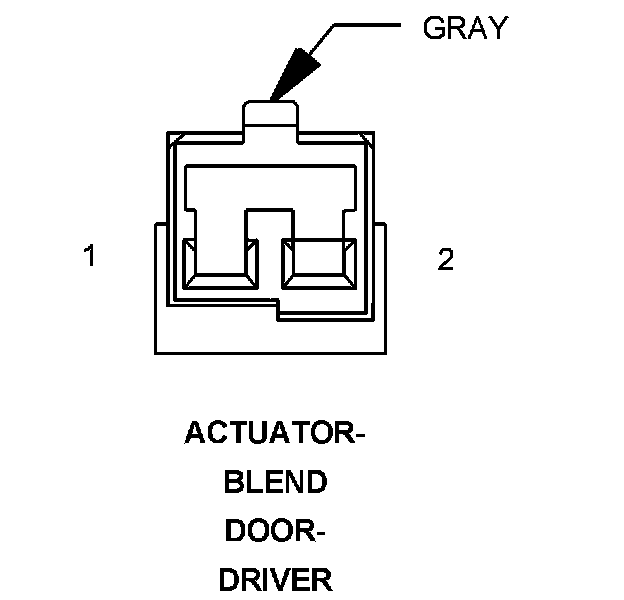

Component : ACTUATOR-BLEND DOOR-DRIVER

Connector:
Name : ACTUATOR-BLEND DOOR-DRIVER
Color : GRAY
# of pins : 2




Pin Description Circuit
1 DRIVER BLEND DOOR DRIVER (A) C61 20DB/LG
2 DRIVER BLEND DOOR DRIVER (B) C161 20LB/WT
2 COMMON DOOR DRIVER (B) C34 20DB/LB

Component Location - 20
